hose guards

Product catalog summary

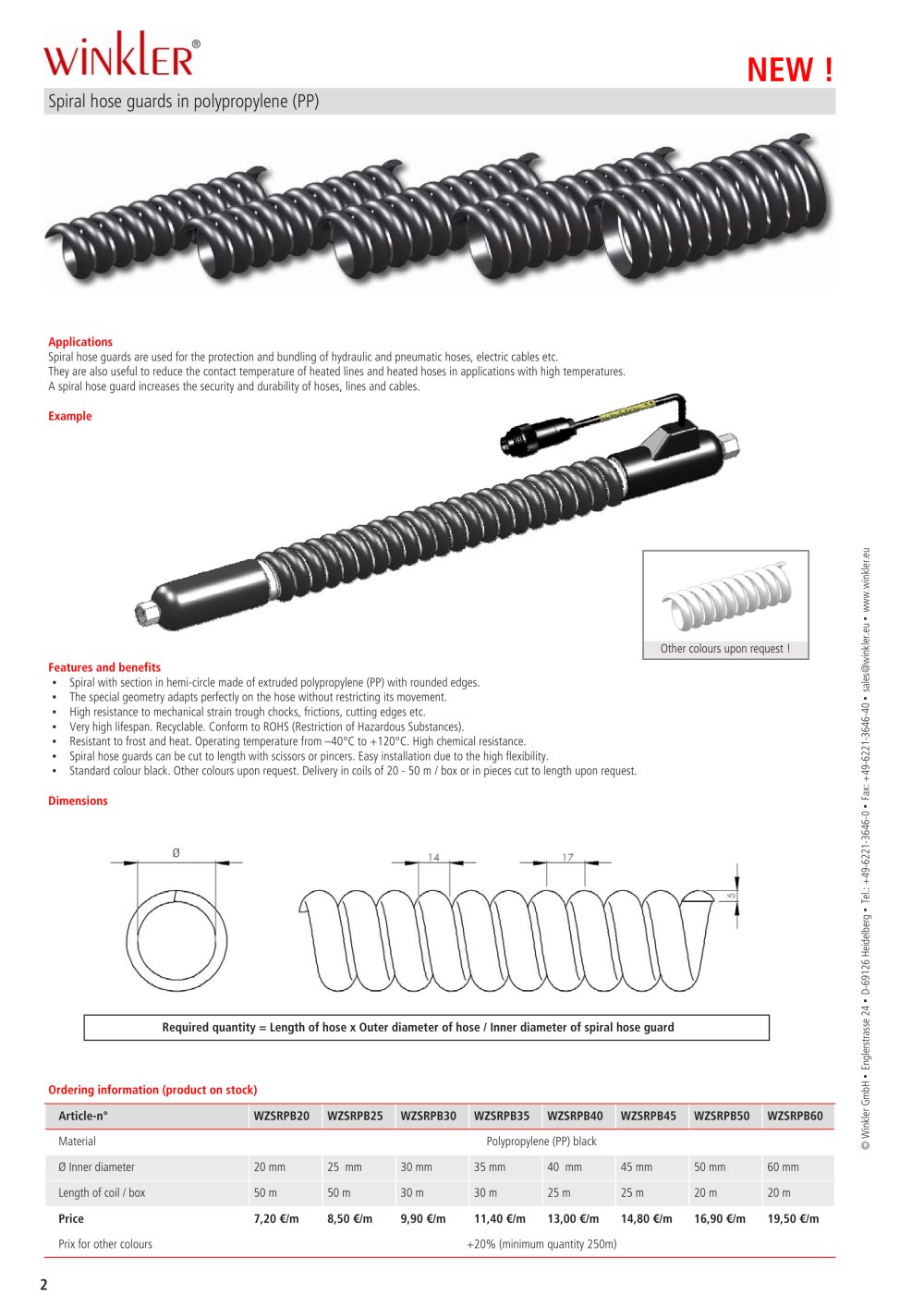

Spiral Hose Guards in Polypropylene (PP)

Applications: Spiral hose guards are designed for protecting and bundling hydraulic and pneumatic hoses, electric cables, and reducing contact temperature in high-temperature applications. They enhance the security and durability of hoses, lines, and cables.

Features and Benefits:

Constructed from extruded polypropylene (PP) with rounded edges, featuring a hemi-circle section that adapts perfectly to hoses without restricting movement.
High resistance to mechanical strain, including shocks, friction, and cutting edges.
Long lifespan, recyclable, and compliant with ROHS (Restriction of Hazardous Substances).
Resistant to frost and heat, with an operating temperature range from –40°C to +120°C, and high chemical resistance.
Can be easily cut to length with scissors or pincers, and offers easy installation due to high flexibility.
Standard color is black, with other colors available upon request. Delivered in coils of 20 - 50 m per box or in custom lengths.

Dimensions: The required quantity is calculated as the length of the hose multiplied by the outer diameter of the hose, divided by the inner diameter of the spiral hose guard.

Ordering Information: The product is available in various inner diameters ranging from 20 mm to 60 mm, with coil lengths varying from 20 m to 50 m. Prices range from 7.20 €/m to 19.50 €/m, with a 20% surcharge for other colors, subject to a minimum order of 250 m.
