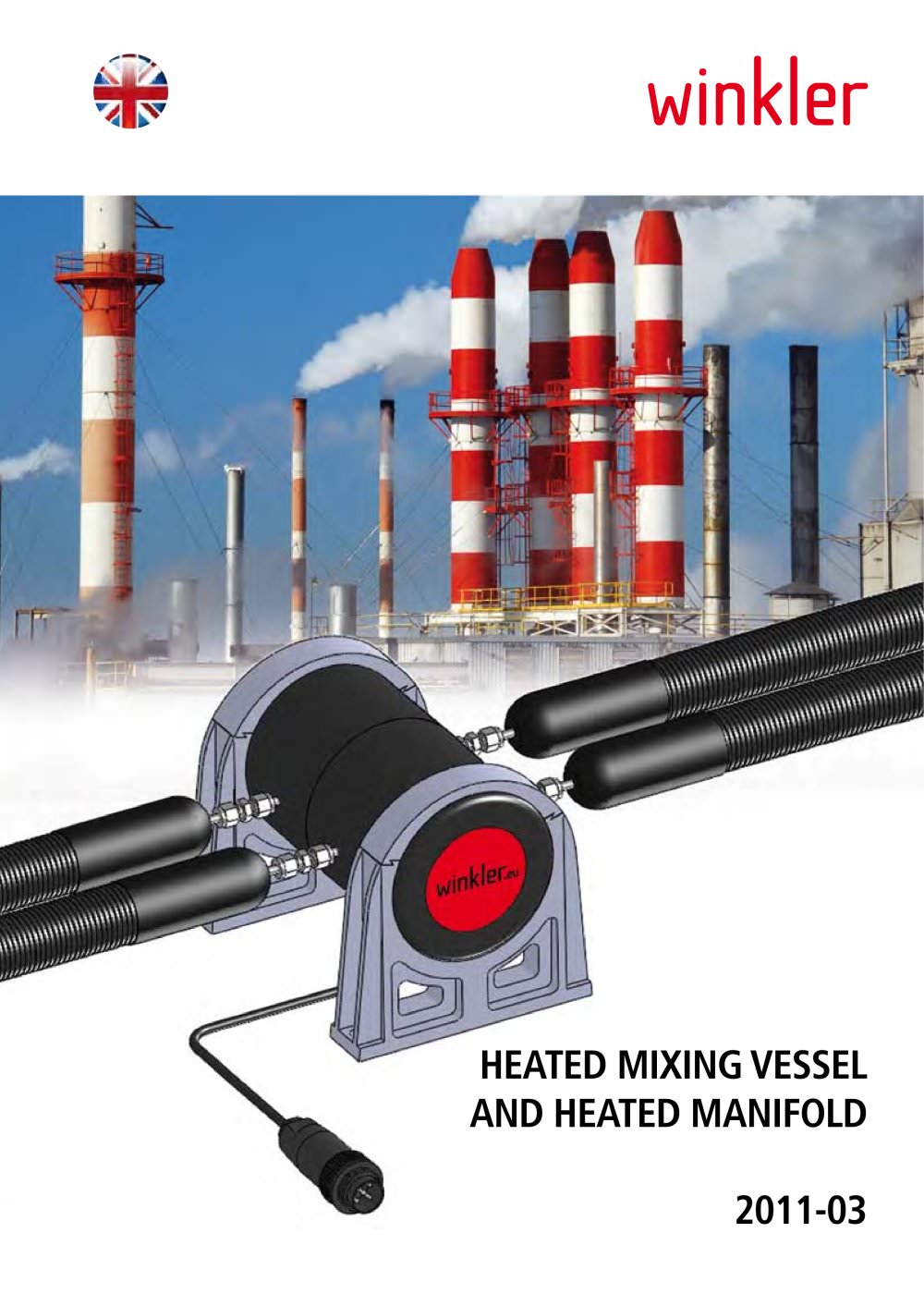

HEATED MIXING VESSEL

Product catalog summary

Overview: The document provides detailed information about the Heated Mixing Vessel Series WAV, designed by Winkler GmbH for industrial and laboratory applications. It highlights the features, technical specifications, and available accessories for the product.

Features and Benefits:

Constructed from high-quality materials for robustness and continuous use at temperatures up to 250°C.
Cylindrical shape ensures efficient gas mixing.
Effective heating with excellent insulation, requiring only 150W at 200°C.
Connections for heated lines can serve as cold junctions for cooling gases.
Comes with an insulation jacket as an accessory.
Standard buffer volume of 1.1 liters, with other sizes available upon request.

Applications: Suitable for environmental and process measurement, mixing, buffering, and gas transfer. It connects multiple heated lines with pumps and headrace.

Technical Data:

Model includes 2x 2-way connections with a diameter of 130 mm and length of 200 mm (customizable).
Nominal diameter options available, standard is Dn 6.
Heating via PTFE insulated heating cable with protective conductor braiding.
Temperature sensor options include Pt 1000, Pt 100, and thermocouples type K and J.

Accessories:

Heated lines with RSL fittings.
Insulation jacket with multi-layer thermal fleece.
Silicone foam hose with Velcro fastening.
Double compression fittings and various end cap options.

Company Information: Winkler GmbH, based in Heidelberg, Germany, specializes in electric heating solutions for over 30 years. They offer customized solutions and flexible manufacturing, with a focus on high-quality, durable products.

Contact Information: Headquarters located at Englerstrasse 24, D-69126 Heidelberg, Germany. Contact via phone at +49-6221-3646-0 or email at [email protected].
