Catalogue Silicone Heaters & Heating Foils
Catalogue Silicone Heaters & Heating Foils
- Designed for even heat distribution, made from high-grade materials for reliability and longevity.
- Available in various shapes and sizes, with options for temperature sensors, self-adhesive surfaces, and reinforced insulation.
- Surface temperatures range from 70°C to 200°C.
- Etching Technique: Suitable for large batches, involves etching heat conductor tracks from a metal layer.
- Winding Technique: Used for small batches, involves hand-winding thin resistance wires.
- Used in industries, laboratories, and technical facilities for heating containers, drums, and machine elements.
- Suitable for temperature maintenance and heating tasks.
- Fast heating with minimal post-heating due to small mass.
- Flexible and easy to install, even on curved surfaces.
- High mechanical strength and moisture resistance.
- Includes self-adhesive foil, Velcro fastening, hooks and tension springs, and eyelets for various temperature ranges.
- Materials include silicone-coated glass fabric and polyimide, with temperature resistance up to 200°C.
- Connection systems include soldering, crimping, and large contact areas.
- Products undergo triple testing for quality assurance, ensuring high reliability and safety standards.
- Certified to ISO 9001:2000.
- Operational guidelines specify that operating voltage should be determined by the application, with higher voltages for larger objects.
- Installation requires soldering leads to designated areas and may need electrical insulation to prevent short-circuiting.
- Adhesive foil withstands temperatures up to 150°C, allowing easy attachment without air pockets.
- Winkler GmbH, based in Heidelberg, Germany, offers a range of electric heating solutions including ATEX heated lines, heated hoses, laboratory heaters, and heating jackets.
- Emphasizes high-quality materials, reliability, and durability, offering customized solutions.
- Certified under ISO 9001:2000 and Directive 94/9/EC Annex VII (ATEX).
Catalog excerpts

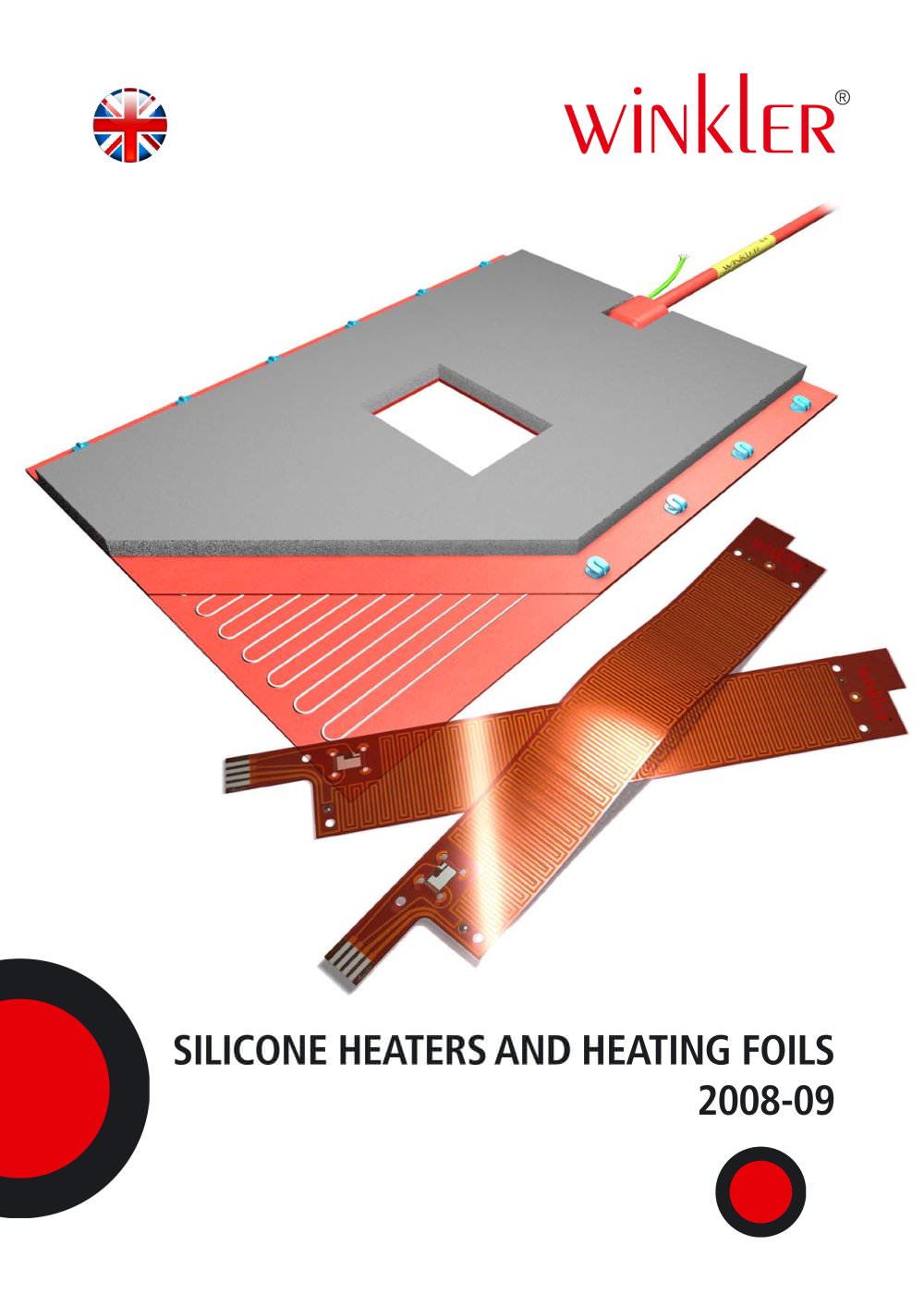

SILICONE HEATERS AND HEATING FOILS2008-09 >
Open the catalog to page 1
Based on more than 25 years of experience, Winkler stands for reliable products and intelligent innova-tions in industrial heat engineering. We believe that we offer the most comprehensive range of products available today in the field of customized, ready-to-fit surface heating systems. Silicone heaters and heating foils from Winkler are employed in all sectors of industry, in laboratories and technical facilities. For example, suitable for heating: containers, funnels, tops of bunkers or bins, drums and barrels, bottles, tables, antennas, mirrors and reflectors, switch cabinets, machine elements,...
Open the catalog to page 2
Short description Our silicone heaters consist of heat conductor tracks made of wire, starnded wire or etched foil ֖ which are embedded between two strong, moisture- and temperature-resistant silicone layers with glass fabric reinforcement. The entire appliance is vulcanized to form a homogeneous entity. Areas of application and use In all sectors of industry as well as in research, wherever the operator needs fast handling and simple installation. The heaters are used for: Temperature maintenance Heating upՕ Options Integration of temperature sensors Self-adhesive surfaceՕ Choice of connection...
Open the catalog to page 3
Thermal switch Sensor pocket To prevent excess temperature (not suitable for precise temperature control) To fit a sensor for electronic control > Silicone cable Leads Two-core or multi-core; with or without protective conductor terminal (where a protective conductor is incorporated in the cable, it is designed to earth the heated object); IP 64 possible. Cross-section and length depending on application (for protected installation and extra-low voltage) > Material: Silicone foam, closed-cell; > standard type , red > Material: silicone foam, closed-cell, white > Maximum temperature: 200 C > Maximum...
Open the catalog to page 5
Structure:Carrier layer: Temperature resistance: Polyimide (Kapton) 50 εm Up to approx. 150 C continuous temperature in the case of adhesive foil mountingUp to approx. 180 аC continuous temperature in the case of additional mechanical mounting > Heating resistor: CuNi 44 (Isotan) 50 εm or 20 m > Covering layer: Polyimide (Kaptonծ) 50 m > Adhesive layer: 3M type 467 MP 50 յm > Foil material: Polyimide (Kapton), polyester, and others > Insulation test: Proof voltage, depending on application > Heat conductor material: metallic conductive materials, e.g. nickel alloys, copper, etc. > Protection...
Open the catalog to page 6
If you would like further information or if you have any questions regarding the types of application, our specialists will always be pleased to help you. >
