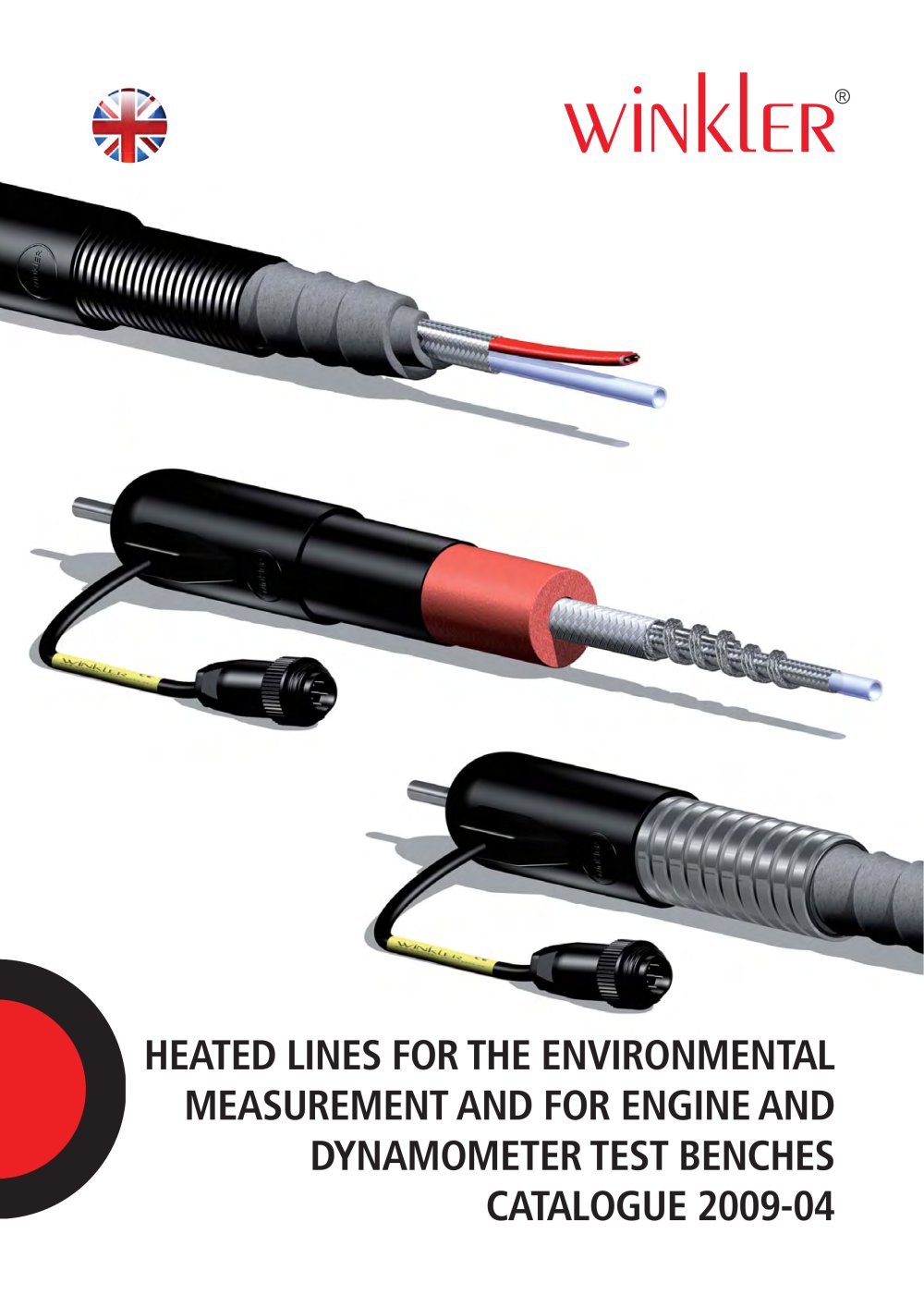

HEATED LINES FOR THE ENVIRONMENTAL MEASUREMENT AND FOR ENGINE AND DYNAMOMETER TEST BENCHESCATALOGUE 2009-04 >

Important ! NEW article codes since 01.01.2008 Codes for the outer cover Protective braidings Page 8 Silicon covers Page 8 Protective hoses Page 10 G0 Black polyamide (PA) braiding S0 Red silicon foam W2 Black PA corrugated hose G1 G2 G3 G4 S1 Black silicon skin 30 mm W3 Black TPE corrugated hose PA braiding - red - orange - blue - grey S2 Black silicon skin 40 mm W7 Black PUR corrugated hose G8 Galvanised steel braiding W8 Galvanised steel spiral hose G9 Stainless steel braiding W9 Stainless steel spiral hose Codes for the maximum operating temperature or power Maximum operating...

With more than 25 years of experience, Winkler stands for reliable products and intelligent innovations in indus-trial heat engineering. We offer the broadest range of flexible heating systems, control & monitoring equipment and accessory products for exacting analytical measurement. Heated lines from Winkler are used in analytical systems for monitoring air pollutants in power stations and waste incineration plants as well as for process analysis in industry. They serve to transport gas samples without falsification from the sampling point to the gas treatment system and analyser. Thanks...

Applications Heated lines for the transport of gas samples in the temperature range up to 120C . Ideal for fix installation - especially outdoors - with normal mechanical strain. Can be cut to any length on site and terminated with termination kit. Structure PTFE-hose, unheated overlapping 500 mm on both ends (see picture). Options for basic hoses and fittings as well as their available nominal diameters No controller necessary Page 14 . Heating with selflimiting heating tape with protective braiding and polyolefin/fluorpolymer- covering. Available also with ATEX-connections. Flexible...

L : Total length of the heated line AD : Outer diameter of the inner line DK : Outside diameter of cap AD DK DM Cable core ends LE LL = 1.500 mm LD DM : Outside diameter of outer cover LI : Overlap of inner line LK : Length of cap LD : Height of cap with cable outlet LE : Recess of cable outlet LL : Length of connecting cable LI LK LI > (Tolerances of length 2%, tolerances of diameter ѱ5%) ND 2 4 6 8 10 AD 4 mm 6 mm 8 mm 10 mm 12 mm DK 48 mm DM 42,5 mm LI 500 mm LK 105 mm LD 62 mm LE 35 mm Min. bend radius 200 mm 300 mm > Max. oper. temperature at Power ON 65ְC 120C 120аC Max. oper....

Applications Marking Heated lines and hoses for the transport of fluids in the temperature range up to 200аC for applications in potentially explosive atmospheres classified zone 1 and 2 areas. Not suitable for zone 0 areas. > II 2G EEx e ma IIC T3 Structure PTFE basic hose with stainless steel braiding and fittings made of stainless steel 1.4305 (other fittings and materials upon request). Available nominal diameters : 4, 6, 8, 10 and 13 mm. Total length: depending on nominal diameter up to max. 48 m. 0123 Conformity symbol with notified body's identification number (0123 = TV Sܼd)...

DA DK DM Ferrules LE L : Total length of the heated line DA : Outside diameter of fitting DK : Outside diameter of cap LL=1.500 mm LD DM : Outside diameter of outer cover LA : Length of fitting LK : Length of cap LD : Height of cap with cable outlet LE : Recess of cable outlet LK LA L > ND 4 6 8 10 13 Operating temperature : max. 200 C Ambient temperature : Ж20 C up to +40 аC Operating voltage : 230 VAC (50 Hz) Rated power : 30 W 4.800 W Power tolerances : ֱ 10 % Protection class : I Min. bend radius : 300 mm * at 200 C DA 6 mm 8 mm 10 mm 12 mm 15 mm DK 64 mm DM 54 mm LA 25 mm 26 mm 28 mm...

Heated lines for the transport of gas samples in the temperature range up to 250аC . Well suited for fix installation and mobile use indoors * with stainless steel tube or corrugated hose with normal mechanical strain. Versions for high temperatures up to 400C . Structure PTFE basic hose with stainless steel braiding and tube ends made of stainless steel 1.4305. Options for basic hoses and fittings as well as their available nominal diameters Page 14 . Operation with controller Heating with PTFE (T > Max < 250аC) or glass silk (T > Max > 250C) insulated heating cable with protective...

Plug 6poles+earth Page 16 L : Total length of the heated line DA : Outside diameter of fitting DK : Outside diameter of cap DA DK DM LE LL = 1.500 mm DM : Outside diameter of outer cover LD LA : Length of fitting LK : Length of cap LD : Height of cap with cable outlet LE : Recess of cable outlet LL : Length of connecting cable LK LA > (Tolerances of length 2%, tolerances of diameter ѱ5%) ND 2 4 6 8 10 13 (12*) 16 (15*) 20 25 32 DA 4 mm 6 mm 8 mm 10 mm 12 mm 15 mm 18 mm 22 mm 28 mm 35 mm DK 48 mm 52 mm DM 42 mm 46 mm LA 25 mm 26 mm 28 mm 32 mm 32 mm 34 mm 41 mm LK 110 mm 105 mm 100 mm LD 64...

Applications Heated lines for the transport of gas samples in the temperature range up to 200C . Very well suited for fix installation - even outdoors - and the mobile use with higher mechanical strain. Structure PTFE basic hose with stainless steel braiding and tube ends made of stainless steel 1.4305. Options for basic hoses and fittings as well as their available nominal diameters Page 14 . Operation with controller Heating with PTFE insulated heating cable with protective braiding. Flexible insulating structure with multilayer thermal fleece. Standard insulation structure approx. 40 mm...

Plug 6poles+earth Page 16 L : Total length of the heated line DA : Outside diameter of fitting DK : Outside diameter of cap DA DK DM LE LL = 1.500 mm DM : Outside diameter of outer cover LD LA : Length of fitting LK : Length of cap LD : Height of cap with cable outlet LE : Recess of cable outlet LL : Length of connecting cable LK LA > (Tolerances of length 2%, tolerances of diameter ѱ5%) ND 2 4 6 8 10 13 16 DA 4 mm 6 mm 8 mm 10 mm 12 mm 15 mm 18 mm DK 48 mm DM 42,5 mm LA 25 mm 26 mm 28 mm 32 mm LK 105 mm LD 62 mm LE 35 mm Min. bend radius 200 mm 300 mm > (Tolerances of power 10%, ambient...
