WINKEL
Linear drive unit

Linear drive unit

Product catalog summary

Overview: The document details technical specifications and applications for heavy load linear systems, including Steel Linear Units (SLE), Aluminum Linear Units (ALE), and Dynamic Linear Units (DLE). These systems are designed for high load capacities, precision, and speed, suitable for industries such as foundries, building materials, glass, robotics, and automotive manufacturing.

Specifications:

SLE-1: Load capacity up to 300 kg, speed up to 2 m/s, repeatability ±0.5 mm.
SLE-2: Load capacity up to 1000 kg, speed up to 2 m/s, repeatability ±1.0 mm.
SLE-3: Load capacity up to 2000 kg, speed up to 2 m/s horizontal and 1 m/s vertical, repeatability ±1.0 mm.
ALE: Load capacity up to 100 kg, speed up to 5 m/s horizontal and 2 m/s vertical, repeatability ±0.2 mm.
DLE: Load capacity up to 1000 kg, speed up to 5 m/s horizontal and 2 m/s vertical, repeatability ±0.1 mm.

Applications: These systems are used in handling applications across various industries, including foundries, building materials, glass, robotics, and automotive manufacturing.

Advantages:

High load capacity, speed, and precision.
Modular and cost-effective design.
Resistance to dust and dirt.
Low maintenance requirements.
Short delivery times.

Technical Features:

Rack and pinion or timing belt drives.
Hardened racks and precision steel profiles.
Adjustable bearings for minimized clearance.
Energy chains for cable management.

Order Codes: The document includes order codes for different configurations, specifying type, size, driving system, stroke, and accessories.

Additional Specifications:

Type DLE - 400 ZS-H: Horizontal axis with a rack and pinion drive for a load capacity up to 800 kg.
Type DLE - 400 ZS-V: Vertical axis with a rack and pinion drive for a load capacity up to 400 kg.
Type DLE - 1000 ZS-H: Horizontal axis with a rack and pinion drive for a load capacity up to 1,500 kg.
Type DLE - 1000 ZS-V: Vertical axis with a rack and pinion drive for a load capacity up to 1,000 kg.

Application Examples:

Packing Industry: Systems with load capacities ranging from 100 kg to 800 kg, with strokes and speeds specified for different axes.
Plastic Industry: Load capacity of 700 kg with multi-axis capabilities including a turning device and gripper.
Automotive Industry: Various systems with load capacities from 200 kg to 3 x 1000 kg, detailing strokes and speeds for x, y, and z axes.
Steel Industry: Systems with load capacities from 600 kg to 1,500 kg, specifying strokes and speeds for different axes.
Building Material Handling: Systems with load capacities up to 2,000 kg, detailing strokes and speeds.
Coil Handling: Systems designed for aluminum coils with a load capacity of 5,000 kg, featuring synchronized lift and drive functions.

Key Parameters:

Load capacities range from 100 kg to 5,000 kg depending on the application and system type.
Strokes and speeds are specified for each axis, with variations based on the industry and application requirements.

Conclusion: The document outlines a comprehensive range of heavy load linear systems suitable for various industrial applications, emphasizing the versatility and capacity of rack and pinion drives.

Catalog excerpts

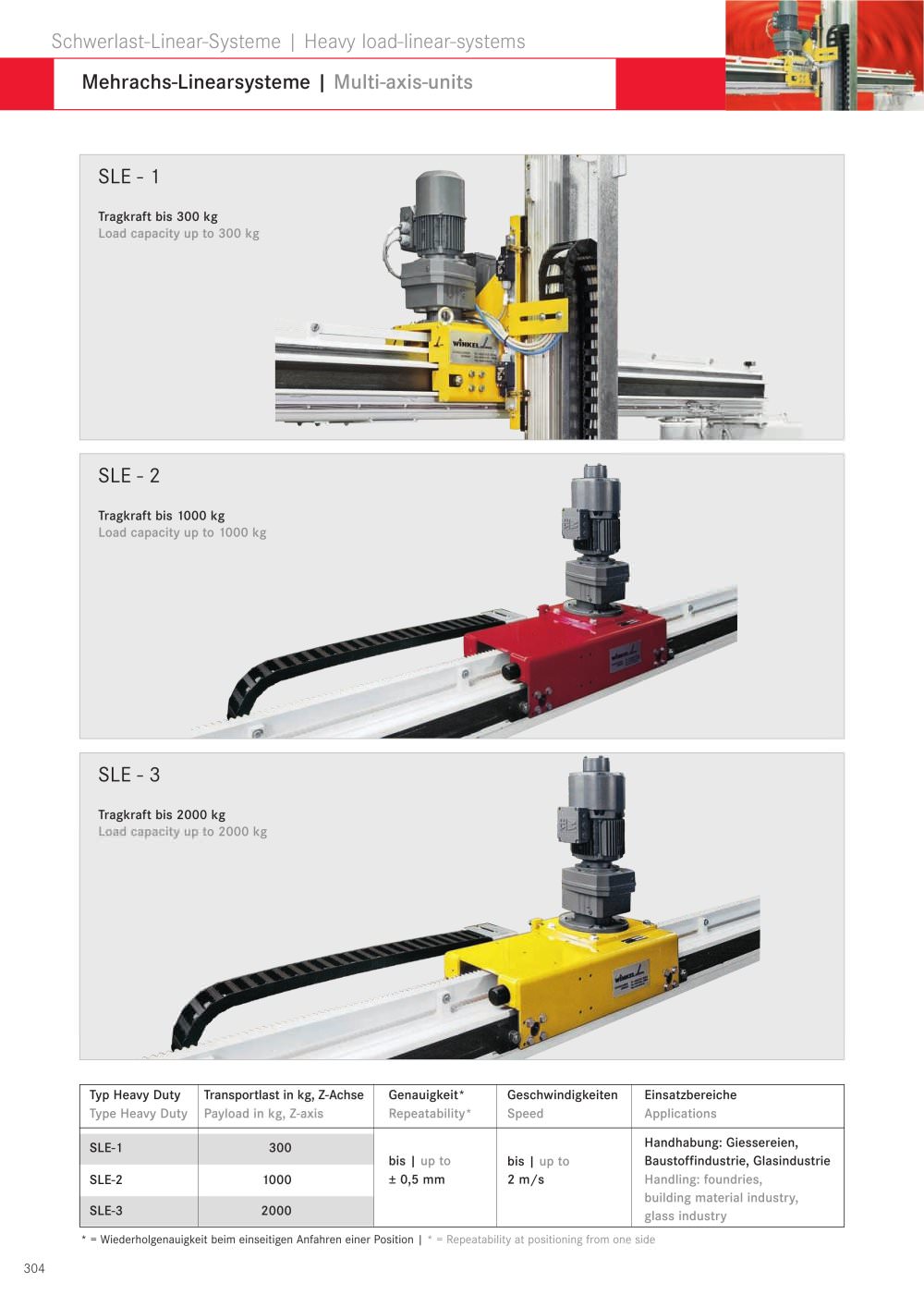

304 Typ Heavy Duty Type Heavy Duty SLE-1 SLE-2 SLE-3 Transportlast in kg, Z-Achse Payload in kg, Z-axis 300 1000 2000 Genauigkeit* Repeatability* bis | up to ± 0,5 mm Einsatzbereiche Applications Handhabung: Giessereien, Baustoffindustrie, Glasindustrie Handling: foundries, building material industry, glass industry Geschwindigkeiten Speed bis | up to 2 m/s Schwerlast-Linear-Systeme | Heavy load-linear-systems Mehrachs-Linearsysteme | Multi-axis-units * = Wiederholgenauigkeit beim einseitigen Anfahren einer Position | * = Repeatability at positioning from one side SLE - 1 Tragkraft bis 300 kg Load capacity up to 300 kg SLE - 2 Tragkraft bis 1000 kg Load capacity up to 1000 kg SLE - 3 Tragkraft bis 2000 kg Load capacity up to 2000 kg

Open the catalog to page 1

305 Typ High Dynamic Type High Dynamic ALE DLE-125 DLE-400 DLE-1000 Transportlast in kg, Z-Achse Payload in kg, Z-axis 100 125 400 1000 Genauigkeit* Repeatability* bis | up to ± 0,1 mm Geschwindigkeiten Speed bis | up to 5 m/s Einsatzbereiche Applications Handhabung: Robotertechnik, Automobilbau Handling: robot industry car manufacturing Schwerlast-Linear-Systeme | Heavy load-linear-systems Mehrachs-Linearsysteme | Multi-axis-units Achssysteme WINKEL-Achssysteme zeichnen sich aus durch: hohe Traglasten, Geschwindigkeit und Präzision hohe dynamische Belastbarkeit durch Stahlprofile einfachen modularen...

Open the catalog to page 2

306 SLE - 1 Schwerlast-Linear-Systeme | Heavy load-linear-systems Mehrachs-Linearsysteme | Multi-axis-units Stahl-Linear-Einheit Typ SLE - 1 mit Zahnstangen- oder Zahnriemen Antrieb Technische Daten: Tragkraft: bis 500 kg Geschwindigkeit: max. 2 m/sec horizontal max. 2 m/sec vertikal Wiederholgenauigkeit: ± 0,5 mm Verfahrweg: max. 30 m Auf Wunsch modulares zusammensetzen der Achsen. Die Vorteile: hohe Traglasten, Geschwindigkeit und Präzision hohe dynamische Belastbarkeit durch Stahlprofile einfacher modularer Aufbau, dadurch sehr kostengünstig erhöhte Unempfindlichkeit gegen Schmutz und Staub...

Open the catalog to page 3

307 343 280 108 Bestellcode | Order code Typ Größe Antriebsart Horizontal Hublänge Gesamtlänge Zubehör Type Size Driving-system Horizontal Stroke Overall-length Accessories SLE 1 ZS H mm mm Schwerlast-Linear-Systeme | Heavy load-linear-systems Mehrachs-Linearsysteme | Multi-axis-units Maßblatt Horizontalachse Typ SLE - 1 ZS-H Zahnstangenantrieb für Tragfähigkeit bis 300 kg Verfahrweg bis 30 m Dimensions horizontal axis Type SLE - 1 ZS-H rack and pinion drive for load capacity up to 300 kg stroke max. 30 m Zahnrad z = 23; Modul 5 Pinion z = 23; Module 5 Energiekette Cable carriage

Open the catalog to page 4

308 343 280 108 Bestellcode | Order code Typ Größe Antriebsart Horizontal Hublänge Gesamtlänge Zubehör Type Size Driving-system Horizontal Stroke Overall-length Accessories SLE 1 ZR H mm mm Schwerlast-Linear-Systeme | Heavy load-linear-systems Mehrachs-Linearsysteme | Multi-axis-units Zahnriemenscheibe Z = 32 Timing belt pulley Z = 32 Maßblatt Horizontalachse Typ SLE - 1 ZR-H Zahnriemenantrieb für Tragfähigkeit bis 300 kg Verfahrweg max. 10 m Dimensions horizontal axis Type SLE - 1 ZR-H timing belt drive for load capacity up to 300 kg stroke max. 10 m

Open the catalog to page 5

309 Bestellcode | Order code Typ Größe Antriebsart Vertikal PR Linearsys. Hublänge Gesamtlänge Zubehör Type Size Driving-system Vertical Stroke Overall-length Accessories ALE 2 ZS VV PR mm mm Schwerlast-Linear-Systeme | Heavy load-linear-systems Mehrachs-Linearsysteme | Multi-axis-units Maßblatt Vertikalachse Typ ALE - 2 ZS-VV-PR Zahnstangenantrieb für Tragfähigkeit bis 100 kg Dimensions vertical axis Type ALE - 2 ZS-VV-PR rack and pinion drive for load capacity up to 100 kg

Open the catalog to page 6

310 SLE - 2 Schwerlast-Linear-Systeme | Heavy load-linear-systems Mehrachs-Linearsysteme | Multi-axis-units Stahl-Linear-Einheit Typ SLE - 2 mit Zahnstangen- oder Zahnriemen Antrieb Technische Daten: Tragkraft: max. 1000 kg Geschwindigkeit: max. 2 m/sec horizontal max. 2 m/sec vertikal Wiederholgenauigkeit: ± 1,0 mm Verfahrweg: max. 30 m Auf Wunsch modulares zusammensetzen der Achsen. Die Vorteile: hohe Traglasten, Geschwindigkeit und Präzision hohe dynamische Belastbarkeit durch Stahlprofile einfacher modularer Aufbau, dadurch sehr kostengünstig erhöhte Unempfindlichkeit gegen Schmutz und Staub...

Open the catalog to page 7

311 Schwerlast-Linear-Systeme | Heavy load-linear-systems Mehrachs-Linearsysteme | Multi-axis-units

Open the catalog to page 8

312 Detalle A - A Bestellcode | Order code Typ Größe Antriebsart Horizontal Hublänge Gesamtlänge Zubehör Type Size Driving-system Horizontal Stroke Overall-length Accessories SLE 2 ZS H mm mm Schwerlast-Linear-Systeme | Heavy load-linear-systems Mehrachs-Linearsysteme | Multi-axis-units Maßblatt Horizontalachse Typ SLE - 2 ZS-H Zahnstangenantrieb für Tragfähigkeit bis 1000 kg Verfahrweg bis 30 m Dimensions horizontal axis Type SLE - 2 ZS-H rack and pinion drive for load capacity up to 1000 kg stroke max. 30 m Zahnrad z = 23; Modul 5 Pinion z = 23; Module 5 Energiekette Cable carriage

Open the catalog to page 9

313 Bestellcode | Order code Typ Größe Antriebsart Horizontal Hublänge Gesamtlänge Zubehör Type Size Driving-system Horizontal Stroke Overall-length Accessories SLE 2 ZR H mm mm Schwerlast-Linear-Systeme | Heavy load-linear-systems Mehrachs-Linearsysteme | Multi-axis-units Zahnriemenscheibe Z = 32 Timing belt pulley Z = 32 Maßblatt Horizontalachse Typ SLE - 2 ZR-H Zahnriemenantrieb für Tragfähigkeit bis 1000 kg Verfahrweg max. 10 m Dimensions horizontal axis Type SLE - 2 ZR-H timing belt drive for load capacity up to 1000 kg stroke max. 10 m

Open the catalog to page 10

314 Bestellcode | Order code Typ Größe Antriebsart Vertikal Hublänge Gesamtlänge Zubehör Type Size Driving-system Vertical Stroke Overall-length Accessories SLE 2 ZS V mm mm Schwerlast-Linear-Systeme | Heavy load-linear-systems Mehrachs-Linearsysteme | Multi-axis-units Maßblatt Vertikalachse Typ SLE - 2 ZS-V Zahnstangenantrieb für Tragfähigkeit bis 300 kg Dimensions vertical axis Type SLE - 2 ZS-V rack and pinion drive for load capacity up to 300 kg Zahnrad z = 23; Modul 5 Pinion z = 23; Module 5

Open the catalog to page 11
