Combined axial/radial bearing

Combined axial/radial bearing

Product catalog summary

Overview: The document provides comprehensive technical specifications and guidelines for WINKEL Combined Bearings, used in machine and lifting system applications. It covers different bearing types, their advantages, technical characteristics, and guidelines for calculating bearing forces.

Specifications:

Outer rings: Case-hardened steel UNI 16 CrNi 4, hardened at 62+2 HRC.
Inner rings: Bearing steel En 31-SAE 52100, hardened at 62-2 HRC.
Cylindrical rollers: En 31-SAE 52100 steel, hardened at 59 – 64 HRC.
Welding bolts: C22E with a tolerance of –0.05 mm.
Lubrication: Grease grade 3 (e.g., Shell Alvania 3).

Advantages:

Cost reduction in design and production.
Handles high radial and axial loads.
Strong profiles for static and dynamic loads.
Longer lifetime and economical assembly.
Exchangeable components.

Calculation of Bearing Forces:

Formula: F[N] = Q · L / (2 · Amax).
Maximum pressure: Pzul = 860 N/mm² for Nb-profiles, 750 N/mm² for others.

Components and Systems:

Types include adjustable units, heavy-duty options, and Oilamid inserts.
Profiles in stainless steel and other materials.
Clamp flanges and lubrication systems detailed.

Ordering Information:

Examples for ordering bearings with components like flange plates and washers.

Precision Combined Bearing Type PR:

Fixed axial bearings reduce clearance.
Relubrication for types PR 4.055 to PR 4.063.

Load Capacities and Specifications:

Defined for radial and axial bearings per ISO standards.
Maximum allowable forces specified for radial (FR) and axial (FA) bearings.

High Temperature Combined Bearing Type HT:

Temperature resistance up to 250°C.
Features include tolerance C3, high-temperature grease, and Viton sealings.

Adjustment and Maintenance:

Axial bearing adjustment involves specific procedures.
Equipped with 2 RS rubber sealings.

Technical Data and Dimensions:

Detailed dimensions, weight, and speed specifications for each type.

Components Systems Overview:
Focuses on combined bearings and profiles, including U-profiles, I-profiles, and jumbo profiles, with specifications and ordering information.

U-Profiles:

Standardized thread holes, fine straightened, max length 12 meters.

I-Profiles:

High-quality steel S450 J2 mod, higher load capacity.

Jumbo Profiles:

High-quality steel S355 J2G3, fixed lengths.

Flange Plates:

For combined and radial bearings, suitable for screw joints.

Technical Data:

Includes weight, area, moments of inertia, and section modulus.

Conclusion:
The document serves as a guide for selecting and ordering combined bearings and profiles, offering detailed specifications and customization options.

Corrosion Protection:

ATC-coating enhances corrosion resistance and wear durability.

Lubrication Systems:

WINKEL Combi-Lub 1 system includes activator screws and high-performance grease.

Application Examples:

Includes horizontal linear slides, lifting units, and handling units for heavy loads.

General Advice and System Solutions:

Guidelines for special designs and welding practices.

Catalog excerpts

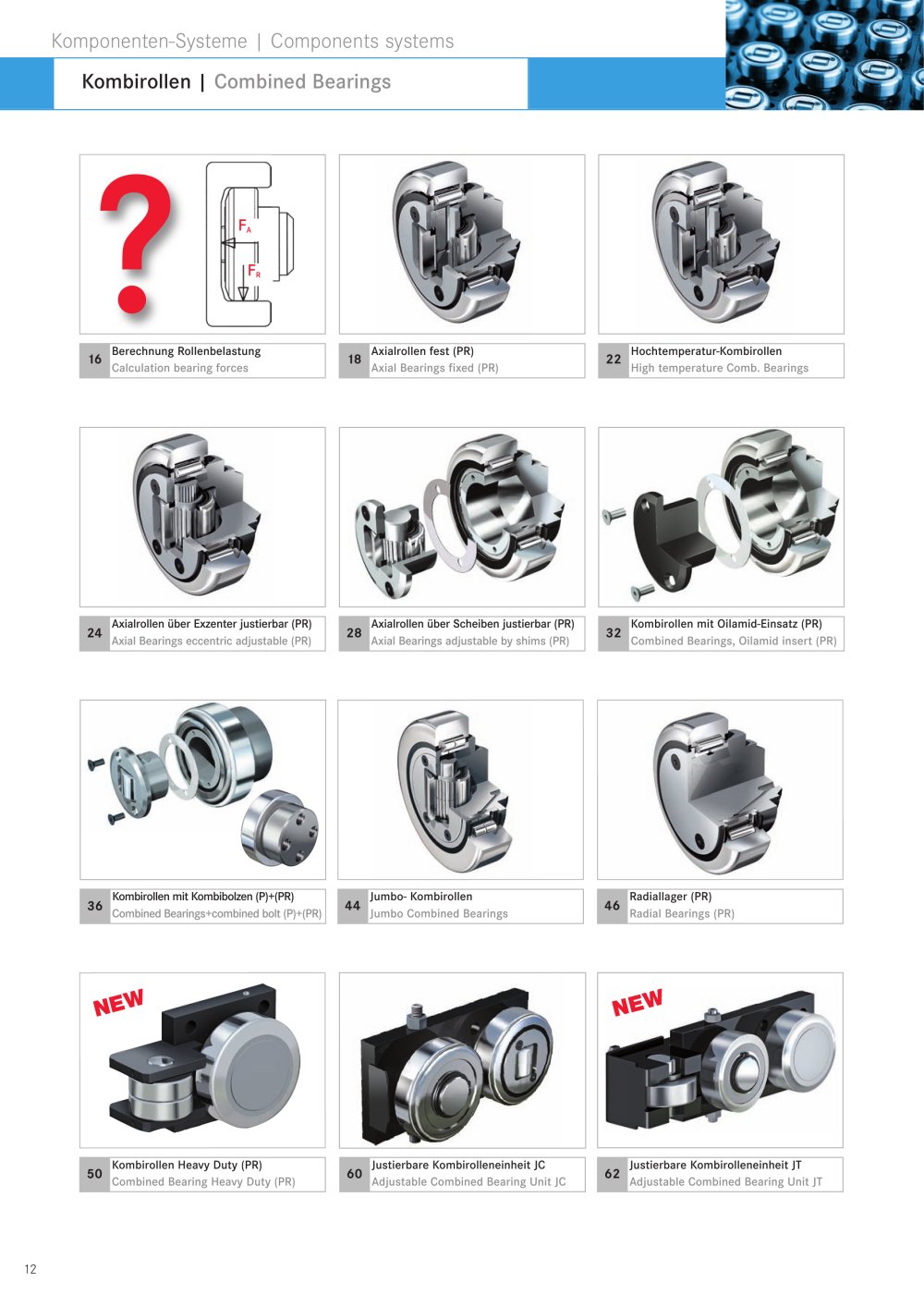

12 FA FR NEW NEW ?Berechnung Rollenbelastung Calculation bearing forces Axialrollen fest (PR) Axial Bearings fixed (PR) Hochtemperatur-Kombirollen High temperature Comb. Bearings Axialrollen über Exzenter justierbar (PR) Axial Bearings eccentric adjustable (PR) Axialrollen über Scheiben justierbar (PR) Axial Bearings adjustable by shims (PR) Kombirollen mit Oilamid-Einsatz (PR) Combined Bearings, Oilamid insert (PR) Kombirollen mit Kombibolzen (P)+(PR) Combined Bearings+combined bolt (P)+(PR) Justierbare Kombirolleneinheit JC Adjustable Combined Bearing Unit JC Justierbare Kombirolleneinheit JT Adjustable Combined Bearing Unit JT Jumbo- Kombirollen Jumbo Combined Bearings Radiallager (PR) Radial Bearings (PR) Kombirollen Heavy Duty (PR) Combined Bearing Heavy Duty (PR) Komponenten-Systeme | Components systems Kombirollen | Combined Bearings 50 60 62 36 44 46 24 28 32 16 18 22

Open the catalog to page 1

13 NEW NEW NEW NEW Kombirollen in Edelstahl, kugelgelagert Combined Bearings in INOX, ball bearing Zahnräder und Zahnstangen/Rollenketten Racks and pinions/Roller chain Klemmflansche Clamp flanges VULKOLLAN Kombirollen VULKOLLAN Combined Bearings POLYAMID Kombirollen POLYAMIDE Combined Bearings Angetriebene Vulkollan-Kombirollen Driven Vulkollan Combined Bearings U-Profile/I-Profile U-Profiles/I-Profiles Profile in Edelstahl Profiles in stainless steel Profile für VULKOLLAN + POLYAMID Kombirollen Profiles for VULKOLLAN + POLYAMIDE Combined Bearings Korrosionsschutz und Nachschmier - systeme Corrosion...

Open the catalog to page 2

14 Komponenten-Systeme | Components systems Kombirollen | Combined Bearings Kombirollen von WINKEL Mit unseren Kombirollen können Vertikal- und Horizontalbewegungen an Maschinen und Hubvorrichtungen wirtschaftlich gelöst werden. Vorteile der Kombirolle: Das Kombirollensystem senkt Ihre Konstruktions- und Produktionskosten Das Kombirollensystem kann hohe Radial- und Axialbelastungen aufnehmen Starkwandige Führungsprofile für hohe stat. und dynamische Belastungen Optimale Krafteinleitung in die Führungsprofile Höhere Lebensdauer von Rolle und Profil Montagezeitersparnis durch Einschweißbolzen Lagerkomponenten...

Open the catalog to page 3

DocHdl1OnPTRtmpTarget tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial Black", sans-serif; } .font1 { font:8.00pt "Franklin Gothic Medium", sans-serif; } .font2 { font:7.00pt "Lucida Sans Unicode", sans-serif; } .font3 { font:11.00pt "Lucida Sans Unicode", sans-serif; } .font4 { font:6.00pt "Trebuchet MS", sans-serif; } omponenten-Systeme | Components Systems Kombirollen | Combined Bearings Kombirollen von WINKEL WINKEL Combined B< Basierend auf einem Baukastensystem haben Sie die Mglichkeit unendlich vieler Anwendungen. Based on a unit construction system for various...

Open the catalog to page 4

17 4.054 4.055 4.056 4.057 4.058 4.059 4.060 4.061 4.062 4.063 31,0 45,5 48,0 48,0 68,0 73,0 81,0 81,0 110,0 151,0 35,5 51,0 56,8 56,8 72,0 82,0 95,0 95,0 132,0 192,0 11 13 18 18 23 25 31 31 43 68 9,40 11,30 11,72 11,72 20,47 20,11 21,68 21,68 30,92 (24,70) 54,02 3,10 3,73 3,87 3,87 6,76 6,70 7,16 7,16 10,20 17,80 11 14 18 18 23 27 36 36 50 71 900 900 800 800 750 700 650 650 550 450 0,53 0,80 1,00 0,87 1,62 1,74 2,27 2,82 3,89 6,52 AP0 AP0-Q AP1 AP1-Q AP2 AP2-Q - AP3.1 AP3-Q - - AP4 AP4-Q AP4 AP4-Q AP6 AP6-Q 0 Nb 1 Nb 3018 Nb 2 Nb 3019 Nb 3 Nb 3020 Nb 2912 Nb 3100 Nb 4 Nb 5 Nb (3353 Nb) 6 Nb...

Open the catalog to page 6

18 4.053 4.054 4.055 4.056 4.057 4.058 4.059 4.060 4.061 4.062 4.063 200.024.000 200.001.000 200.002.000 200.003.000 200.004.002 200.005.000 200.006.000 200.007.000 200.008.000 200.009.000 200.010 .000 52,5 62,5 70,1 77,7 77,7 88,4 101,2 107,7 107,7 123,0 149,0 40 42 48 54 53 59 67 71 71 80 103 30 30 35 40 40 45 50 55 60 60 60 33,0 37,5 44,0 48,0 40,0 57,0 46,0 53,0 69,0 72,3 78,5 27,0 30,5 36,0 36,5 29,0 44,0 33,0 39,0 55,0 56,0 58,5 17 20 23 23 23 30 28 31 31 37 43 5,0 2,5 2,5 3,0 3,0 3,5 3,0 3,0 4,0 5,0 5,5 15 20 22 26 26 26 30 34 34 40 50 2 3 4 4 4 3 3 5 5 5 3 D mm D mm T mm T mm d -0.05...

Open the catalog to page 7

20 PR 4.054 PR 4.055 PR 4.056 PR 4.058 PR 4.061 PR 4.062 PR 4.063 200.100.000 200.101 .000 200.102.000 200.103.000 200.104 .000 200.105.000 200.106.000 64,8 73,8 81,8 92,8 111,8 127,8 153,8 42 48 54 59 71 80 103 30 35 40 45 60 60 60 37,5 44,0 48,0 57,0 69,0 72,3 78,5 30,5 36,0 36,5 44,0 55,0 56,0 58,5 20 23 23 30 31 37 43 2,5 2,5 3,0 3,5 4,0 5,0 5,5 20 22 26 26 34 40 50 3 4 4 3 5 5 3 D mm D mm T mm T mm d -0.05 mm d -0.05 mm H mm H mm h mm h mm B mm B mm A mm A mm S mm S mm r mm r mm Komponenten-Systeme | Components systems Kombirollen | Combined Bearings Bestellbeispiel | Order example PR 4.054...

Open the catalog to page 9

21 DS-x-xx DS-x-xx PR 4.054 PR 4.055 PR 4.056 PR 4.058 PR 4.061 PR 4.062 PR 4.063 31,0 45,5 48,0 68,0 81,0 110,0 151,0 35,5 51,0 56,8 72,0 95,0 132,0 192,0 11 13 18 23 31 43 68 9,40 11,30 11,72 20,47 21,68 30,92 54,02 3,10 3,73 3,87 6,76 7,16 10,20 17,80 11 14 18 23 36 50 71 900 900 800 750 650 550 450 0,55 0,85 1,10 1,70 2,95 4,10 6,85 AP0 AP0-Q AP1 AP1-Q AP2 AP2-Q AP3.1 AP3-Q AP4 AP4-Q AP4 AP4-Q AP6 AP6-Q PR 0 Nb PR 1 Nb PR 2 Nb PR 3 Nb PR 4 Nb PR 5 Nb PR 6 Nb AP 0 AP 1 AP 2 AP 3.1 AP 4 AP 6 212 .003.000 212 .004.000 212 .005.000 212 .006.001 212 .007.001 212 .008.000 100 120 120 160 180 200...

Open the catalog to page 10

22 4.053 HT 4.054 HT 4.055 HT 4.056 HT 4.058 HT 4.061 HT 4.062 HT 4.063 HT 200.024.011 200.001.019 200.002.020 200.003.018 200.005.014 200.008.007 200.009.021 200.010.031 52,5 62,5 70,1 77,7 88,4 107,7 123,0 149,0 40 42 48 54 59 71 80 103 30 30 35 40 45 60 60 60 33,0 37,5 44,0 48,0 57,0 69,0 72,3 78,5 27,0 30,5 36,0 36,5 44,0 55,0 56,0 58,5 17 20 23 23 30 31 37 43 5,0 2,5 2,5 3,0 3,5 4,0 5,0 5,5 15 20 22 26 26 34 40 50 2 3 4 4 3 5 5 3 D mm D mm T mm T mm d -0.05 mm d -0.05 mm H mm H mm h mm h mm B mm B mm A mm A mm S mm S mm r mm r mm Komponenten-Systeme | Components systems Kombirollen | Combined...

Open the catalog to page 11

26 1 2 3 5 PR 4.454 PR 4.455 PR 4.456 PR 4.458 PR 4.461 PR 4.462 PR 4.463 PR 4.085 200.114 .000 200.115 .000 200.116 .000 200.117 .000 200.118 .000 200.119 .000 200.120 .000 201.049.001 64,8 73,8 81,8 92,8 111,8 127,8 153,8 184,8 42 48 54 59 69 80 108 124 30 35 40 45 60 60 60 100 37,5 - 39,0 44,0 -45,5 48,0 -49,5 57,0 - 58,5 69,0 -71,0 72,3 -76,3 78,5 -82,5 95,7 -98,7 30,5 -32,0 36,0 -37,5 37,0 - 38,5 44,0 -45,5 55,0 -57,0 56,0 -60,0 58,5 -62,5 76,3 -79,3 20,0 23,0 23,0 30,0 31,0 37,0 45,0 57,3 4,0 - 5,5 4,0 - 5,5 3,5 - 5,0 4,0 - 5,5 4,0 - 6,0 5,0 - 9,0 6,0 - 10,0 6,5 - 9,5 20 20 26 26 30 34...

Open the catalog to page 15
