Thick Turret Special Tooling Catalog

Product catalog summary

Overview: Wilson Tool specializes in designing and manufacturing custom Thick Turret Special Tooling, focusing on innovation, quality, and customer satisfaction. The company provides tailored tooling solutions to enhance punching productivity using advanced manufacturing systems.

Custom Tooling Design: Wilson Tool creates custom tooling solutions to improve productivity, leveraging extensive industry experience and advanced systems to deliver durable, high-performance tools.

Quality Assurance: Tools are made from high-quality proprietary tool steels, ensuring enhanced tool life and performance. Each tool undergoes thorough inspection, with specifications securely stored for future reference.

Innovative Solutions: The company offers comprehensive tooling solutions with state-of-the-art systems and custom software, ensuring industry-leading lead times.

Product Offerings: The document lists various special shapes and tooling options, such as cluster tools, bridge lance and form, card guides, and coining tools, detailing their benefits and considerations.

Advanced Coatings: Optima® coating and Ultima™ Premium Tool Steel are offered for improved wear resistance and durability, extending tool life and reducing maintenance costs.

Cluster Tool Benefits: Cluster tools provide cost-effective solutions for repetitive applications, saving machine time and maintenance.

Bridge Lance and Form: Designed for specific material thicknesses, these tools offer applications like shear stops and ventilation, with guidelines for optimal use and customization.

Card Guide Tooling: Features a universal holder design for easy adjustments and cost savings through replaceable inserts, with special configurations available upon request.

Specifications and Procedures:

Material Pre-Punching: Recommended for materials less than 0.050" to avoid twisting during forming.
Coining Tools: Eliminate secondary drilling operations with specific pre-punching guidelines for different materials.
EKO's Tools: Offer economy and flexibility for various material thicknesses.
Emboss Forming Tools: Available in form-up and form-down configurations for stand-offs, spacers, and locks.
Extrusion Tools: Suitable for self-tapping screws and cooling tube holders, requiring pre-punching.
Half Shear Tools: Used for shear buttons and spot welding locators.

Recommendations and Considerations:

Tool Adjustments: E-Z Set™ punch head recommended for quick length adjustments.
Machine Speed: Slow speed or post delay advised for tool stripping.
Material Compatibility: Consult sales for material thickness exceeding specified gauges.
Tool Coating: Optima® coating available for extended tool life.

One Hit Hinge Tool: Allows hinge creation in one hit, reducing hits compared to conventional tools, with specific design parameters for different materials.

ID-STAMP™ • FORM-DOWN: Reduces tools needed for marking parts, with interchangeable characters for flexibility.

LANCE AND FORMS • FORM-UP: Used for applications like air flow and decoration, with a self-stripping design and replaceable tips for cost savings.

LETTER STAMPS • FORM-DOWN: Eliminates secondary handling costs with a replaceable insert design for versatility.

LIGHT SPRING UNITS: Reduce sheet and form distortion, with fast assembly and disassembly options.

LOUVERS • FORM-UP: Feature a universal holder design with replaceable inserts for cost savings.

PROGRESSIVE LOUVERS • FORM-UP: Allow for various applications with no restrictions on louver length.

PROGRESSIVE RIB • FORM-UP: Produces quality stiffening ribs, programmable to any length.

Contact Information: Provides contact details for Wilson Tool's offices in China, Germany, Denmark, and France for further inquiries.

Company Overview: Wilson Tool International has been a leader in tooling solutions for over 40 years, offering a comprehensive line of tooling systems and accessories across three main divisions: Punching, Press Brake, and Stamping.

Key Features: Known for innovative, high-quality products, Wilson Tool offers a knowledgeable global sales force, multilingual customer support, same-day shipping, and an extensive distribution network.

Catalog excerpts

Strength. Performance. Innovation. >

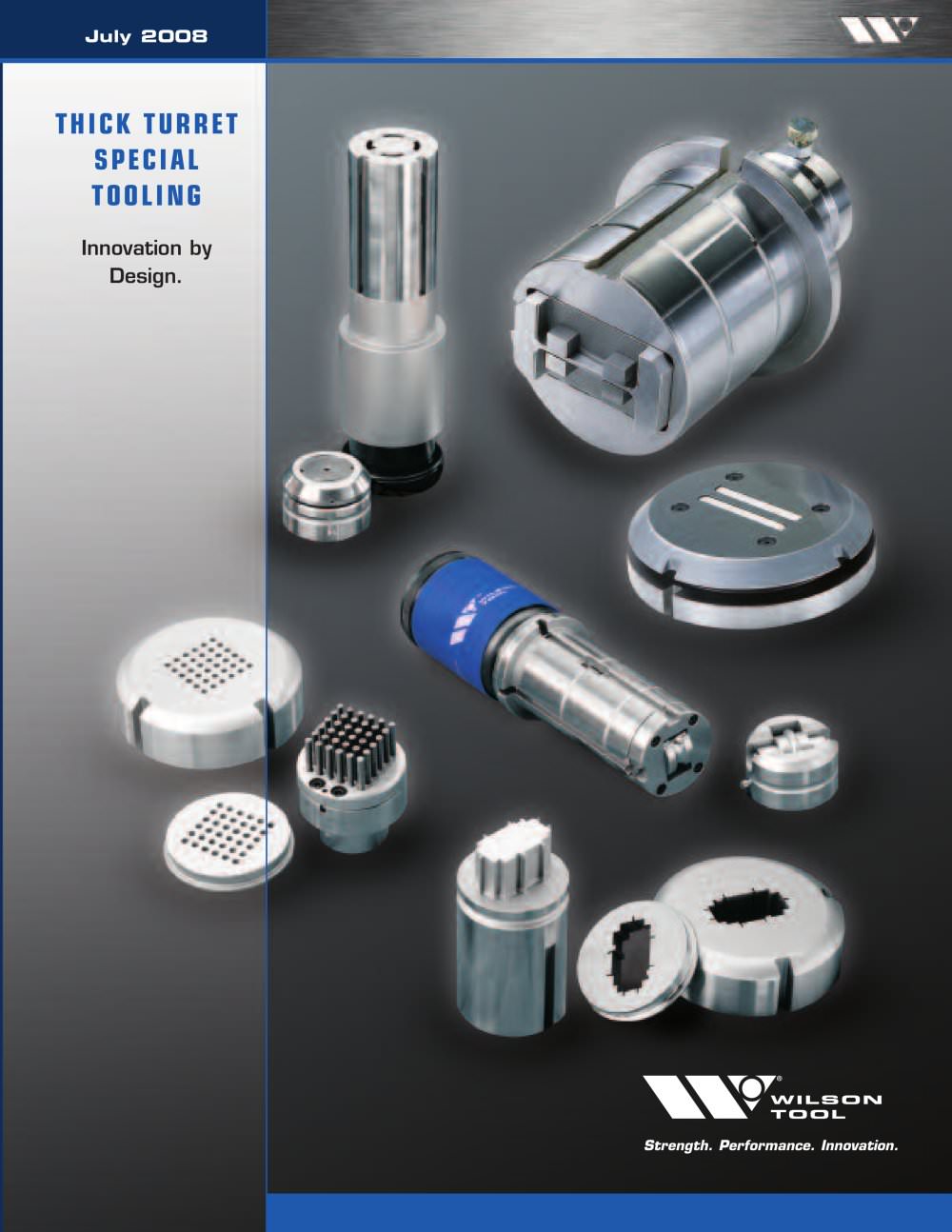

Open the catalog to page 1

o matter how unique your tooling needs, Wilson Tool can design and manufactureThick Turret Special Tooling that will improve your punching productivity. Our years of experience in the industry and the ingenuity of our manufacturing, engineering, and research and development personnel enable us to create durable, performance-driven tooling solutions for even the most challenging application. > At Wilson Tool, designing and manufacturing special tooling for unique customer applications is still viewed as a craft. Ourhighly skilled engineers and toolmakers combine unmatched experience with sophisticated,...

Open the catalog to page 2

Every Wilson Thick Turret Special Tooling is available with WilsonΒs exclusiveOptima > coating. Developed by Wilson engineers, Optima provides a surfacehardness, wear resistance and lubricity unmatched by any other coated or uncoated turret punch press tooling. The result is a longer tool life, more hitsbetween sharpenings, reduced galling, better performance and less downtime. Special Shapes: Group A. . . . . . . . . 3-5Special Shapes: Group B. . . . . . . . . 6-9 Special Shapes: Group C. . . . . . . . . . 10 Cluster Tool. . . . . . . . . . . . . . . . 11-12 Bridge Lance And Form Ε Form-Up....

Open the catalog to page 3

Thick Turret Special Tooling Catalog -11

Toll Free Mexico Tel:001-800-741-2510 Fax:001-800-544-2096 Local Tel:651-286-6001 Fax:651-286-5959 Toll Free U.S.A. & Canada Website & Email www.wilsontool.com [email protected] Tel: 800-328-9646 Fax: 800-222-0002 >

Open the catalog to page 11
