Standard Thick Turret Tooling Catalog

Standard Thick Turret Tooling Catalog

Product catalog summary

Overview: The Wilson Standard™ Thick Turret Tooling System is engineered to boost productivity and lower costs for fabricators. It offers a durable and cost-effective solution by using stronger tool steels and smart design features.

Key Features:

Durability and Precision: The system includes a hardened steel guide that extends grind life by four times compared to traditional guides, with an integrated oiling system for smooth and precise punching.
Quick Adjustments: Features like external keying and push-button punch length adjustments allow for rapid changes without shims.
Optima® Coating: This exclusive coating improves surface hardness, wear resistance, and lubricity, leading to longer tool life and reduced downtime.

Slug Hugger® 2 Design: This innovative die design prevents slug pulling, enhancing productivity by reducing press downtime and damage. It is effective with various materials, including aluminum and stainless steel, and remains effective after sharpening.

Product Range: The document outlines various station tooling options, including 1/2" (A), 1-1/4" (B), 2" (C), 3-1/2" (D), and 4-1/2" (E) stations, along with replaceable insert assemblies and shear options.

Accessories: A wide range of accessories is available, such as tooling cabinets, shear grinding fixtures, multi-tool punch and die holders, and alignment tools.

Contact Information: Wilson Tool provides contact details for customer support in the USA, Canada, and Mexico, along with a website and email for further inquiries.

Alignment Tools for Amada Machines: For aligning A and B stations in Amada machines, single track turrets require one tool per station, while multiple track machines need two tools per station. Specific tools are listed by category number and size.

Adapters: Adapters are available for punch and guide assembly and die adapters, with maximum material thickness specified for different metals.

Ball Riding Die & Brush Die: The Ball Riding Die prevents issues like sheet hang-up and deformation by lifting sheets during forming operations. Brush Dies are used when marking from Ball Riding Dies is unacceptable.

Punch & Die Shims: Shims are available in various thicknesses and quantities for different station sizes, aiding in precise adjustments during operations.

Notcher Stripper Plate: Made from hardened tool steel, these plates provide better guiding and flexibility, enhancing tool life and application versatility.

Wilson Punch & Die Grinder: This grinder is designed for resurfacing punches and dies, featuring a 5 hp spindle motor, CBN grinding wheel, and dual coolant application, offering efficient, space-saving, and cost-effective sharpening solutions.

Terms of Sale: Includes minimum order requirements, credit terms, payment terms, freight details, order cancellation policies, and return procedures.

Contact Information: Wilson Tool International provides contact details for various global locations, emphasizing their extensive support network and commitment to customer service.

Catalog excerpts

Standard Thick Turret Tooling Catalog -1

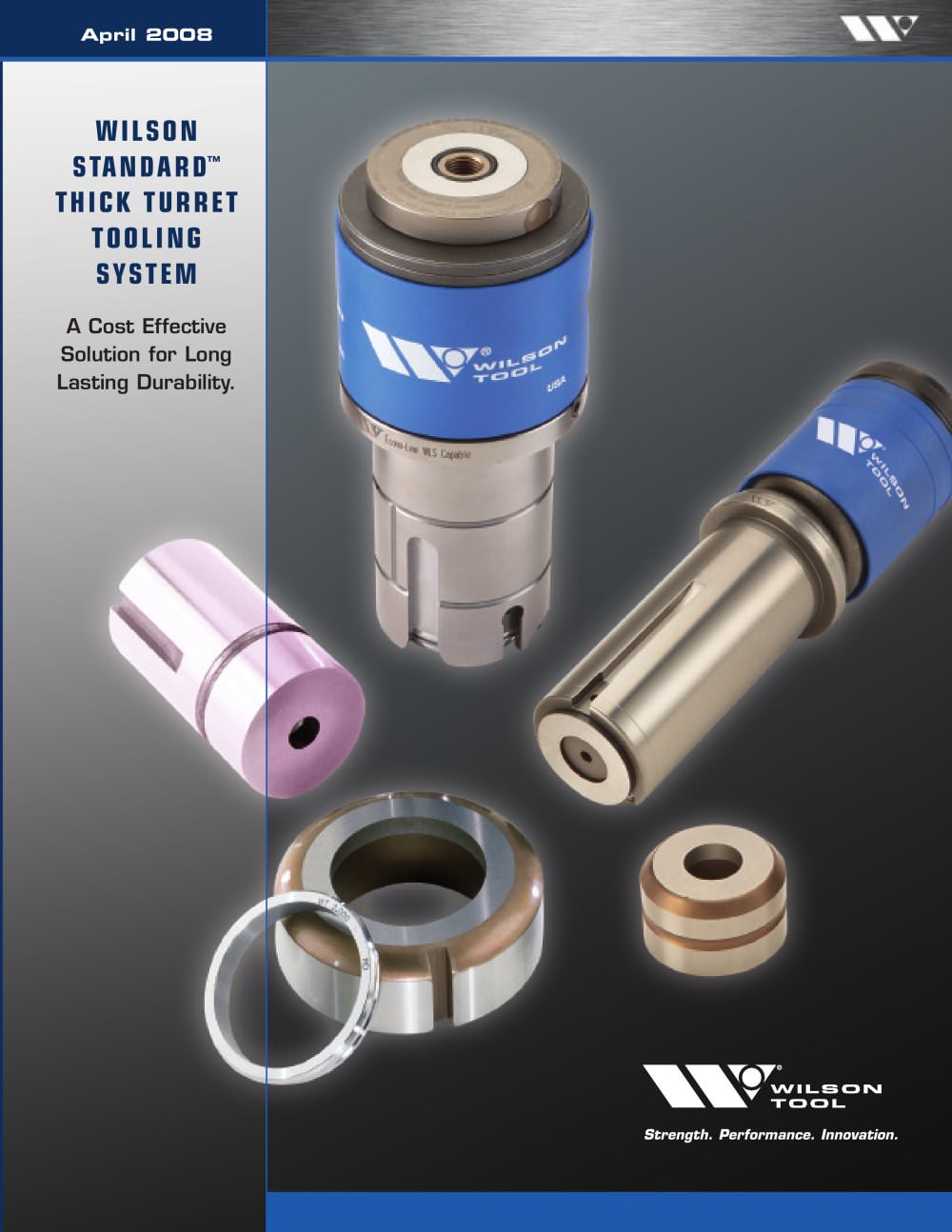

April 2008 WILSONSTANDARD > THICK TURRETTOOLING SYSTEM > ACost EffectiveSolution for LongLasting Durability. Strength. Performance. Innovation. size="-4">

Open the catalog to page 1

Standard Thick Turret Tooling Catalog -2

Wilson Standard Thick Turret Tooling is manufactured with a hardened steel guide, providing four times more grind lifethan traditional old style guide assemblies. A built-in oiling system assures proper internal/external lubrication for a consistently smooth and precise punching action. > Wilson Standard Thick Turret Tooling is uniquely designed to speed adjustments. External keying allows for quick key position changes and push button punch lengthadjustments eliminate the need for shims. Two-inch (C) and 3-1/2 inch (D) stationguide assemblies are keyed at 0ٰ, 90and 225аand keys are coated with...

Open the catalog to page 2

Standard Thick Turret Tooling Catalog -3

Every Wilson Standard Thick Turret Tooling is available with WilsonΒs exclusiveOptima 1/2" (A) Station Tooling. . . . 481-1/4" (B) Station Tooling. . 9֖12 2" (C) Station Tooling. . . . . . . 13 3-1/2" (D) Station Tooling. . . 14 4-1/2" (E) Station Tooling. . . . 15 Replaceable Insert Assembly. . 16 Close to Clamps Tooling. . . . . 17Shear Options. . . . . . . . . . . . 18Standard Keying Locations. . . 19Non-Standard Keying. . . . . . . 20Multi-Tools > coating. Developed by Wilson engineers, Optima provides a surfacehardness, wear resistance and lubricity unmatched by any other coated or uncoated...

Open the catalog to page 3

Standard Thick Turret Tooling Catalog -4

For a guaranteed solution to slug pulling problems that will maximize your press time and improve your productivity turn toWilson Tool, the leading provider of tooling solutions for the punching industry. Manufacturers simply cannot afford to havetheir presses down for any amount of time. At Wilson Tool, our desire to provide innovative tooling solutions for our customers has lead us to develop the Slug Hugger > 2 die design to helpeliminate the very costly problem of slug pulling.The Slug Hugger > ή 2 design works on most material typesand thicknesses including aluminum and stainless steel....

Open the catalog to page 4

Standard Thick Turret Tooling Catalog -5

Not recommended for stainless steel. > ADJ.PUNCH HEAD WITH SCREW > SOCKET HEAD SET SCREW CONE PT. > RETAINING RING SPRING RETAINER WITH O-RING > Maximum Material Thickness .150" (3.81mm) > .037 (0.94mm) Min. Dia. .062 (1.57mm) Min. Dia. Toll Free Mexico Tel:001-800-741-2510 Fax:001-800-544-2096 Local Tel:651-286-6001 Fax:651-286-5959 Toll Free U.S.A. & Canada Website & Email www.wilsontool.com [email protected] Tel:800-328-9646 Fax:800-222-0002 >

Open the catalog to page 5

Standard Thick Turret Tooling Catalog -6

O-RING PUNCH HEAD Cat. No. 24345 Cat. No. 13395 > SOCKET HEAD SET SCREW (M6 x 6mm)Cat. No. 25235 > QUICK ADJUST SPRING PACK ASSEMBLY PUNCH HEAD RETAINER Cat. No. 13396 Cat. No. 13394 > M4X6 HALF DOG POINT SCREW Cat. No. 24292 > SPRING Cat. No. 24291 > SPRING CANISTER Cat. No. 13397 > RETAINING RING Cat. No. 24290 > DOWEL PIN (REPLACEMENT-ROUND ONLY) SPRING SUPPORT (3/16 x .500) Cat. No. 2131 Cat. No. 13398 DESCRIPTIONCAT.NO.PRICE > PUNCH & GUIDEASSEMBLY DOWEL PIN Օ Round Shape Fitted Օ Optima (3/16 x .312) Cat. No. 6013 > Add On > Maximum Material Thickness .150" (3.81mm) PUNCHES Ε Round Shape...

Open the catalog to page 6

Standard Thick Turret Tooling Catalog -20

SDDDLDQDETOBSQRTHXOT Single-D Double-D Long-D Quad-D EquilateralTriangle Obround Square Rectangle Hexagon Octagon Toll Free Mexico Tel:001-800-741-2510 Fax:001-800-544-2096 Local Tel:651-286-6001 Fax:651-286-5959 Toll Free U.S.A. & Canada Website & Email www.wilsontool.com [email protected] Tel:800-328-9646 Fax:800-222-0002 >

Open the catalog to page 20

Standard Thick Turret Tooling Catalog -21

Wilson Tools keying diagram. > This key location matches AmadaҒs > turret punch press programming method. > Shape at 23˚ > 1/2" (A)1-1/4" (B)2" (C)3-1/2" (D)4-1/2" (E) No Charge Not Available Not AvailableNot AvailableNot AvailableNot Available Not Available Not Available Not Available 0˚ & 45˚0˚ & 180˚45˚ Increments 45˚ Increments 45˚ IncrementsNot AvailableNot Available 0˚ & 45˚0˚ & 180˚ 45˚ Increments 45˚ Increments 45˚ IncrementsNot Available NoChargeNot ApplicableNot ApplicableNot ApplicableNot Applicable AvailableOptionsAdd OnPriceAvailableOptionsAdd OnPrice > or 1/2" (A)1-1/4" (B)2"(C)3-1/2"...

Open the catalog to page 21

Standard Thick Turret Tooling Catalog -24

Toll Free Mexico Tel:001-800-741-2510 Fax:001-800-544-2096 Local Tel:651-286-6001 Fax:651-286-5959 Toll Free U.S.A. & Canada Website & Email www.wilsontool.com [email protected] Tel:800-328-9646 Fax:800-222-0002 >

Open the catalog to page 24

Standard Thick Turret Tooling Catalog -27

Cat.No.Price Complete Form-Down Assembly (incl. die)(.250" (6.35mm) max. mat.)Replaceable Center Punch ButtonPunch BodyGuideBlank DieLight Spring (for > .250" (6.35mm) mat.)1-1/4" (B) Station-Complete Set (not shown)1-1/4" (B) Station Upper Punch Assembly1-1/4" (B) Station Lower Die Assembly1-1/4" (B) Station Replaceable Die Insert .375" (9.53mm) 1852 21052107 21062267 649112568 > Toll Free Mexico Tel:001-800-741-2510 Fax:001-800-544-2096 Local Tel:651-286-6001 Fax:651-286-5959 Local Tel:651-286-6001 Fax:651-286-5959 Toll Free U.S.A. & Canada Website & Email www.wilsontool.com [email protected]...

Open the catalog to page 27

Standard Thick Turret Tooling Catalog -29

Toll Free Mexico Tel:001-800-741-2510 Fax:001-800-544-2096 Local Tel:651-286-6001 Fax:651-286-5959 Local Tel:651-286-6001 Fax:651-286-5959 Toll Free U.S.A. & Canada Website & Email www.wilsontool.com [email protected] Tel:800-328-9646 Fax:800-222-0002 >

Open the catalog to page 29

Standard Thick Turret Tooling Catalog -32

ՕDesigned to fit Wilson Toolmanufactured guide assemblies only.For larger sizes, pleasecontact our sales desk.Ն'A' Dimension = Longestdistance across shape. min. total clearance (patented). > Toll Free Mexico Tel:001-800-741-2510 Fax:001-800-544-2096 Local Tel:651-286-6001 Fax:651-286-5959 Toll Free U.S.A. & Canada Website & Email www.wilsontool.com [email protected] Tel:800-328-9646 Fax:800-222-0002 >

Open the catalog to page 32
