Pro-Flo X™

Product catalog summary

Introduction to Pro-Flo X™
Pro-Flo X™ is an innovative air distribution system developed by Wilden, designed to enhance pump performance through the Efficiency Management System (EMS). This system allows users to control flow rates and air consumption efficiently, providing reliability and flexibility for energy-conscious applications.

Specifications

All metal construction available in sizes from 13mm (1/2”) to 102mm (4”).
Polypropylene options available in 38mm (1-1/2”) and 51mm (2”).
Groundable and ATEX compliant.
Features superior anti-freezing capabilities and lube-free operation.
Longest Mean Time Between Failures (M.T.B.F).

Efficiency Management System (EMS)
The EMS allows for precise tuning of the pump by adjusting the air volume at the inlet using a variable control dial. This enables users to either maximize flow for speed or maximize efficiency to reduce costs.

Performance Comparison
Pro-Flo X™ demonstrates superior performance compared to competitors in various conditions:

PX1 Performance: At 60 psig air vs. 30 psig head, Wilden achieves 8.7 gpm at 8.8 SCFM, offering 20% SCFM savings over competitors.
PX200 Performance: At 100 psig air vs. 0 psig head, Wilden achieves 46 gpm at 30.7 SCFM, providing 28% SCFM savings.
PX8 Performance: At 100 psig air vs. 0 psig head, Wilden achieves 160 gpm at 94.0 SCFM, resulting in 22% SCFM savings.

Conclusion
Pro-Flo X™ breaks traditional rules by eliminating the need for external systems to maximize pump efficiency. With its advanced EMS, it offers unmatched performance and cost savings, making it a valuable asset in demanding industrial applications.

Catalog excerpts

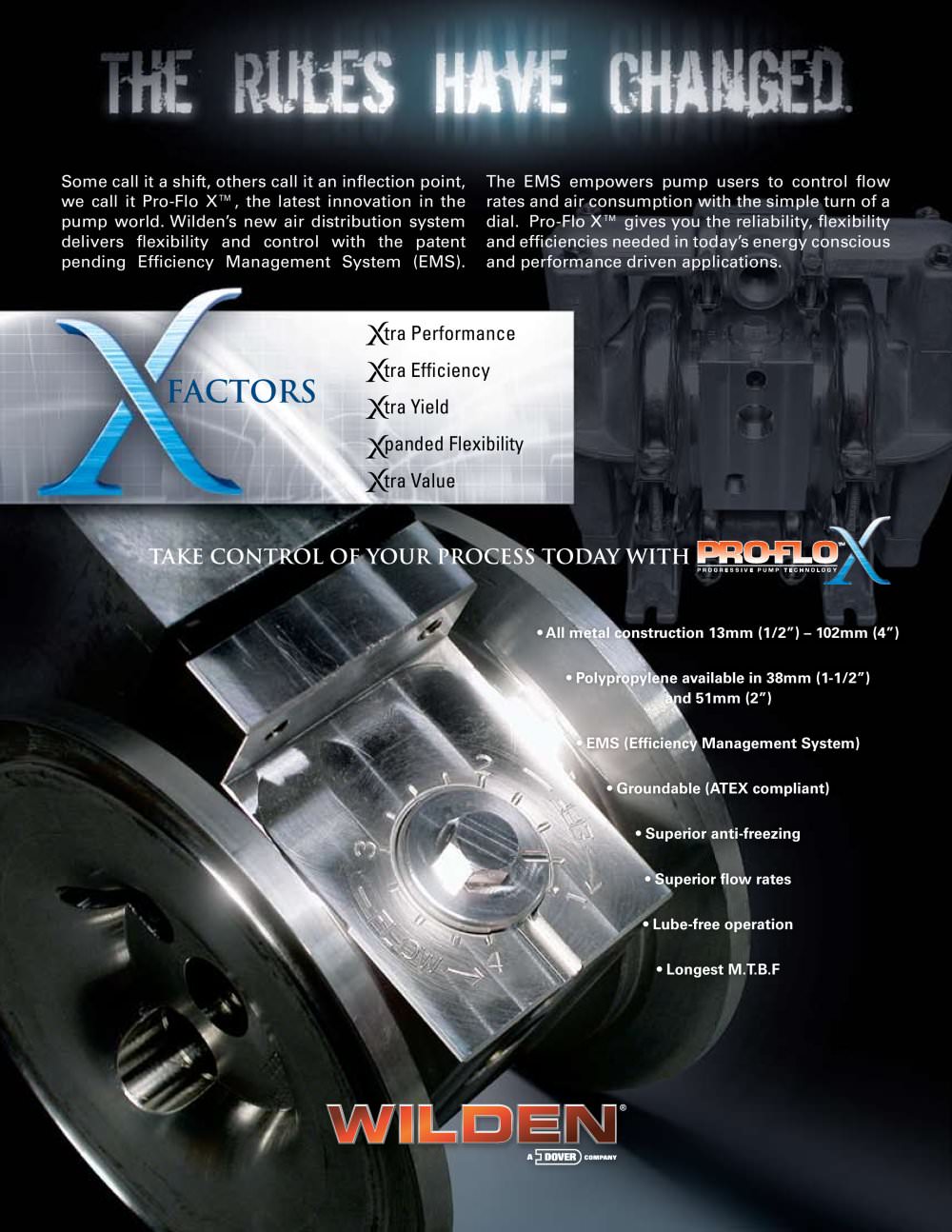

All metal construction 13mm (1/2Ք) 102mm (4֔) Polypropylene available in 38mm (1-1/2Ք)and 51mm (2)ԕ EMS (Efficiency Management System) Groundable (ATEX compliant)Օ Superior anti-freezing Superior flow ratesՕ Lube-free operation Longest M.T.B.F >

Open the catalog to page 1

60 psig air vs.30 psig head 60 psig air vs.30 psig head 60 psig air vs.30 psig head Competitor > CompetitivePerformance 8.7 gpm @11.0 SCFM 7.9 gpm @10.2 SCFM 18 gpm @14.7 SCFM 26 gpm @23.3 SCFM 53 gpm @33.4 SCFM 72 gpm @58.8 SCFM X Setting > WildenPerformance 8.7 gpm @ 7.9 gpm @ 18 gpm @ 26 gpm @ 53 gpm @ 72 gpm @ 8.8 8.8 SCFM SCFM 8.1 8 . 1 SCFM SCFM 11.9 11 . 9 SCFM SCF M 19.4 19.4 4 SCFM SC FM 28.1 28 . 1 SCFM SCF M 39.5 39.5 5 SCFM SC FM SCFM Savings > 100 psig air vs.0 psig head PerformancePoint > 100 psig air vs.0 psig head PerformancePoint > 100 psig air vs.0 psig head Competitor > CompetitivePerformance...

Open the catalog to page 2
