• Suitable for viscous or abrasive sludges, corrosive chemicals, and sheer sensitive materials.
• Seal-less construction with simple and inexpensive maintenance.
• Reversible pump capable of continuous dry running.
• Self-priming with suction lift up to 9m (29.5 ft.) of water.
• Handles particles (not sharp) up to 15-25%.

• Chemical process industry, food industry, water treatment, paints and coatings, ceramics, mining, filter press equipment, nuclear, and slurry.

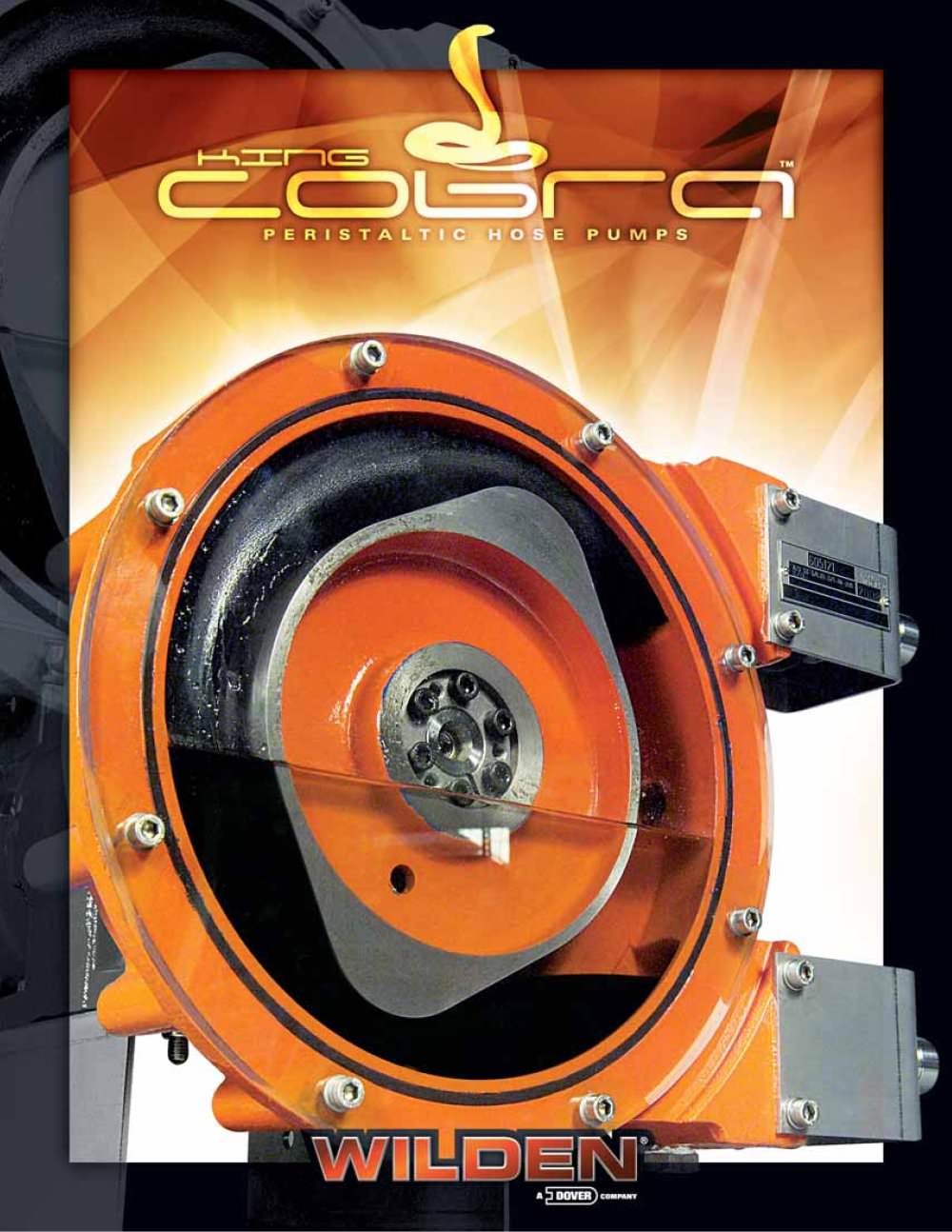

The King Cobra™ Series peristaltic pumps use a compression mechanism with rotating shoes to move fluid through an elastomeric hose. The pump is self-priming and can handle abrasive and aggressive fluids. It features a seal-free design, reducing potential leak points, and is capable of dry suction lift up to 9m.

• Non-wetted components include ductile iron for the pump case and rotor, aluminum or cast iron for shoes, and steel and plexiglass for the cover.
• Wetted components include hoses made from natural rubber, Buna-N, or EPDM, with stainless steel, PP, or PVDF hose inserts.

Motor speed and horsepower are critical for specifying a peristaltic hose pump. The King Cobra™ pump is compatible with NEMA and IEC motors.

• Option #1 (Flat Pack): Includes the pump only.
• Option #2: Includes pump and reducer (no motor).

Contact the authorized Wilden Distributor for appropriate configuration.

• KCS Series (Pump Head Only)
• KCG Series (Pump Head + Gear Reducer)

Note: Maximum solids passage is no greater than 25% of the hose's inside diameter.
