WIELAND ELECTRIC
wipos - Power Supply Units

wipos - Power Supply Units

Product catalog summary

Overview: The document provides detailed information about the Wipos power supply units, emphasizing their reliability and robust design, which are crucial for the availability of machines and processes in control cabinets. The Wipos family is characterized by its essential features without unnecessary frills.

Key Features:

100% power up to 60°C.
Automatic or wide-input voltage range for global use.
PFC technology for high functional reliability.
Outdoor installation capability due to a wide temperature range.
Active monitoring with signaling contact.
Parallel connection possible (from 5 A) to increase power and redundancy.
High operational reliability with long hold-up times (>30 ms).
Compensation of voltage drops via adjustable output voltage.
Easy commissioning via LED diagnosis.

Technical Specifications:

Input voltage ranges from 85 – 264 V AC and 90 – 375 V DC.
Output voltage ranges from 22.5 – 28.5 V depending on the model.
Output current varies from 1.25 A to 20 A across different models.
Temperature range from -25°C to +71°C.
Efficiency ranges from 83% to 89%.
Approvals include CE, cULus, and UL 1310 Class 2.

Product Range: The document also outlines the broader product range offered by Wieland Electric GmbH, including solutions for control cabinets, field applications, and building installation technology. This includes DIN rail terminal blocks, safety sensors, PLC and fieldbus components, interface modules, remote automation technology, and connectors for industrial applications.

Contact Information: The document provides contact details for Wieland Electric GmbH's headquarters, sales and marketing center, and technical support.

Catalog excerpts

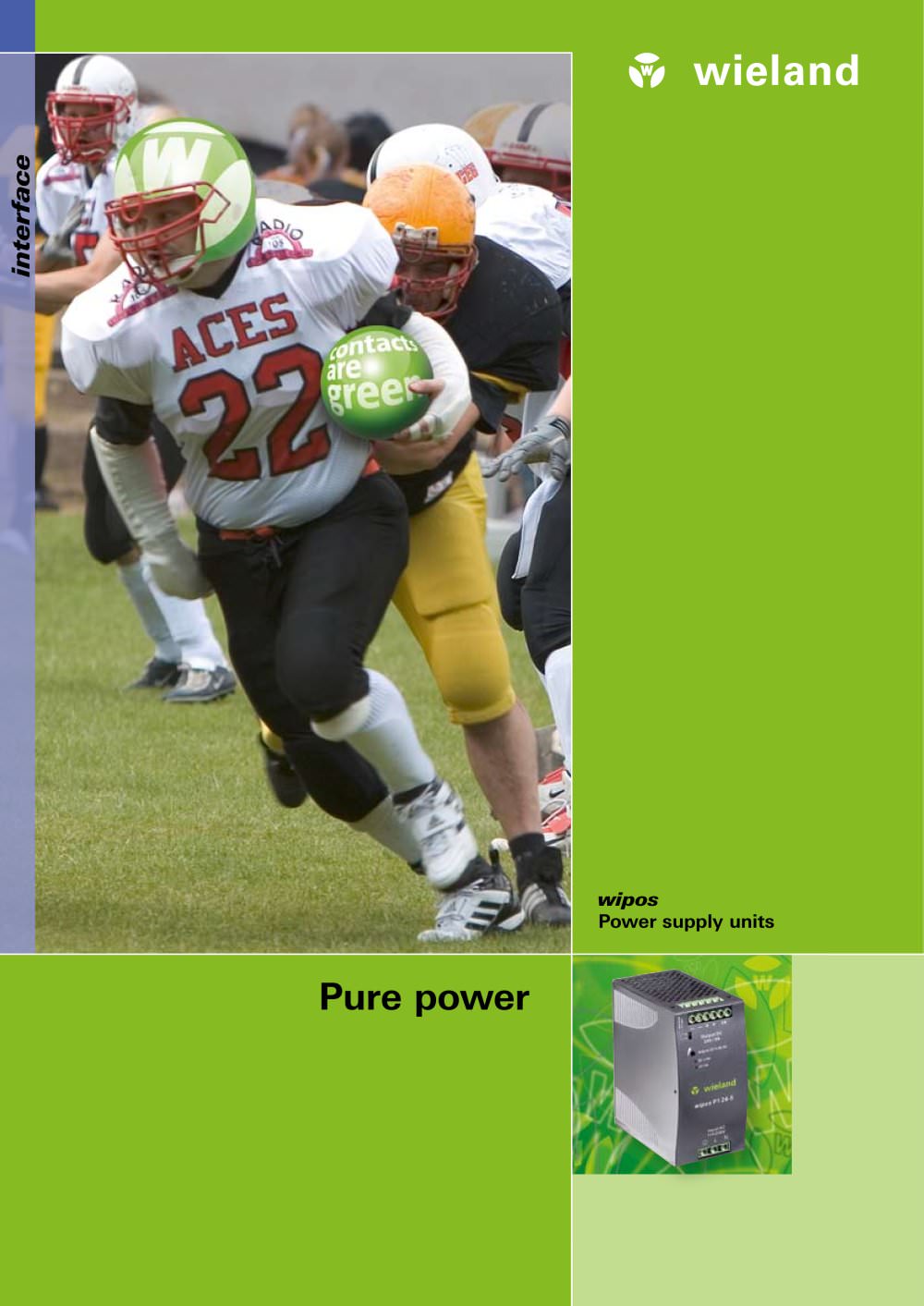

interface wipos Power supply units Pure power

Open the catalog to page 1

2 Power supplies take a central function in the control cabinet. Their reliability affects the availability of the machine or the process to a great degree. That is why a robust and proven design is very important for a power supply unit. There are no unnecessary frills with the wipos family. Instead, these power supply units score with their fundamental features. wipos satisfies your requirements in the significant disciplines: wipos Power supply units Pure Power. No-Frills. 100 % power up to 60° C Automatic or wide-input voltage range for worldwide use PFC technology for high functional reliability...

Open the catalog to page 2

3 interface wipos P1 24-1.25 81.000.6110.0 wipos P1 24-2.5 81.000.6120.0 wipos P1 24-3.8 81.000.6135.0 wipos P1 24-5 81.000.6130.0 wipos P1 24-10 81.000.6140.0 wipos P1 24-20 81.000.6150.0 wipos Modules Power supply wipos P1 24-1.25 P1 24-2.5 Power supply wipos P1 24-10 P1 24-20 Power supply wipos P1 24-3.8 P1 24-5 Type Part No. Part No. Type Part No. Part No. Type Part No. Part No. Technical data Input voltage 85 – 264 V AC, 90 – 375 V DC 85 – 264 V AC, 90 – 375 V DC PFC not necessary not necessary Hold up time > 30 ms at 230 V > 30 ms at 230 V Output voltage 24 – 28 V 24 – 28 V Output current...

Open the catalog to page 3

Headquarters: Wieland Electric GmbH Brennerstraße 10 – 14 D-96052 Bamberg Sales and Marketing Center: Wieland Electric GmbH Benzstraße 9 D-96052 Bamberg Phone +49 (9 51) 93 24-0 Fax +49 (9 51) 93 24-198 www.wieland-electric.com [email protected] Technical Support: Phone +49 (9 51) 93 24-995 Fax +49 (9 51) 93 26-991 [email protected] Product Range 0151.5 E 03/09 Industrial technology Solutions for the control cabinet • DIN rail terminal blocks – Screw, spring clamp or IDC connection technology – Wire cross sections up to 240 mm2 – Numerous special functions – Software solutions...

Open the catalog to page 4
