WIELAND ELECTRIC
wietap - Overvoltage Protection

wietap - Overvoltage Protection

Product catalog summary

Overview: The document focuses on overvoltage protection, particularly using the zone concept for lightning protection as per IEC 62305-4 standards. It highlights the necessity of safeguarding technical manufacturing plants and information systems from lightning-induced disruptions.

Zone Concept for Lightning Protection: Buildings are divided into different risk zones, each requiring specific protective measures. The zones include:

LPZ 0A: Exposed to direct lightning strikes with full lightning current.
LPZ 0B: Protected from direct strikes but subject to partial lightning currents.
LPZ 1: Impulse currents are mitigated by current division and surge protective devices (SPDs).
LPZ 2: Further reduced impulse currents with local shielding.

Technical Specifications: Detailed specifications for surge protection devices (SPDs) are provided, including combined arresters and surge arresters for various power network configurations (TN-C, TN-S, TT). Key parameters include nominal voltage, maximum continuous voltage, lightning impulse current, and protection levels.

Product Features:

Combined arresters and surge arresters are available for different systems (TN-C, TN-S, TT).
Features include pluggable protection modules, function/failure indication, and optional remote signaling contacts.
Devices are tested for vibration and shock resistance according to EN 60068-2.

Installation and Approvals: Devices are mounted on DIN rails and have various approvals such as VDE and cURus. They are designed to ensure maximum system availability and safety through features like follow current limitation and selective switch-off capabilities.

Specifications:

Surge Arrester Type 2: Suitable for sub-distributors or control cabinet power infeed, with a maximum continuous voltage of 275 V AC, nominal discharge current of 20 kA, and a protection level of ≤ 1.25 kV.
Surge Arrester Type 3: Used for direct load protection in control cabinets, with a nominal voltage of 230 V AC, nominal discharge current of 3 kA, and a protection level of ≤ 1250 V.
Photovoltaic Surge Protection: Designed for photovoltaic DC circuits, with a maximum continuous voltage of 500 V DC and a nominal discharge current of 20 kA.

Procedures and Installation:

All devices are mounted on DIN rails according to EN 60715 standards.
They are tested for vibration and shock resistance as per EN 60068-2.
Wire ranges vary from 1.5 mm² to 35 mm² depending on the product type.

Standards and Approvals:

Products comply with EN 61643-11 and IEC 61643-1 standards.
Approvals include VDE and cURus certifications.

Recommendations:

Ensure proper installation on DIN rails and verify compatibility with existing electrical systems.
Utilize remote signaling contacts for enhanced monitoring and maintenance.

Additional Information: The document also outlines the product range of Wieland Electric GmbH, including solutions for control cabinets, field applications, and building installations, emphasizing safety, connectivity, and overvoltage protection.

Catalog excerpts

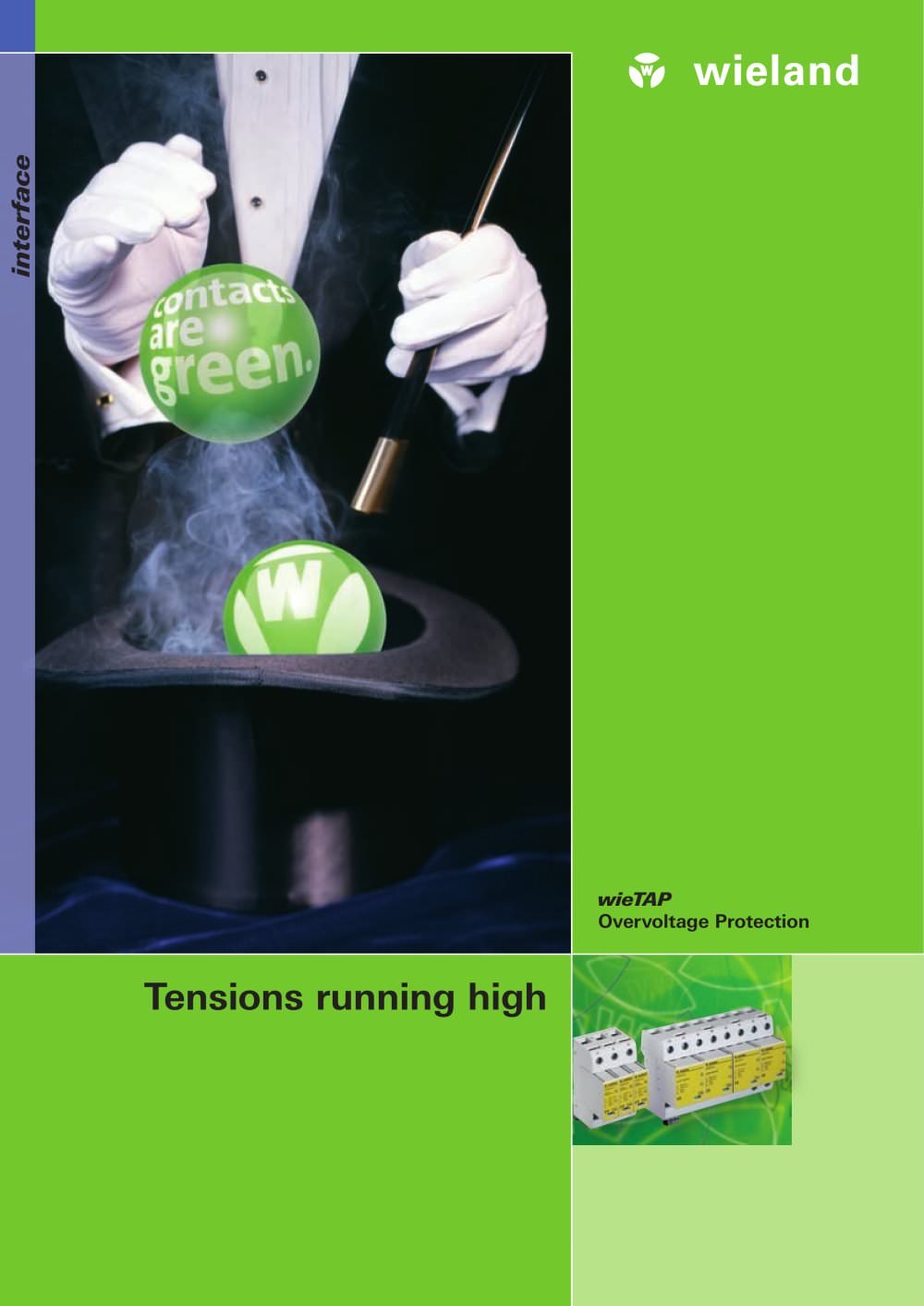

interface wieTAP Overvoltage Protection Tensions running high

Open the catalog to page 1

2 Overvoltage protection The zone concept for lightning protection Figure 1 Owners of technical manufacturing plants and information systems desire an interference-free operation, even in thunderstorms. The disruption or destruction of these types of systems can have far-reaching consequences. The damage reports of insurance agencies clearly show that there is a lot of catching up to do both in private homes and in commercial plants. This goal can be reached with an extensive concept for protection. The zone concept for lightning protection enables planners, builders and owners to plan, implement...

Open the catalog to page 2

interface 3 L1 L2 PEN L3 .. L1 L1´ L2 L2´ PEN L3 L3´ .. 3 4 1 2 .. .. 3 4 1 2 .. .. 3 4 1 2 .. .. R M 2P 255 R M 2P 255 R M 2P 255 R M 2P 255 FM R M 2P 255 FM R M 2P 255 FM N/PE(N) L/N N/PE(N) L/N N/PE(N) L/N N/PE(N) R M 2P 255 FM R M 2P 255 FM R M 2P 255 FM V M TNC 255 FM V M TNC 255 FM V M TNC 255 FM 25 A 25 A 125 A 25 A 125 A 315 A PAS L1 L2 L3N PE 1) 1) 1) 1) 1) 1) Fig 2: . Peak current for testing of lightning arresters Fig 3: EMC-oriented zone concept for lightning protection . Peak current for testing of surge arresters Waveform (ìs) imax. (kA) Q (AS) WR (J/Ù) Standard Equipotential bonding...

Open the catalog to page 3

interface 4 wieTAP V M TNC 255 84.995.1300.0 wieTAP V M TNC 255 FM 84.995.1305.0 wieTAP V M TNS 255 84.995.1400.0 wieTAP V M TNS 255 FM 84.995.1405.0 wieTAP V M TNC 255 (FM) wieTAP V M TNS 255 (FM) Three-phase combined arrester, type 1 For protection of the building power infeed Type Part No. Type Part No. Power network TN-C SPD accord. to EN 61643-11 type 1 SPD accord. to IEC 61643-1 class I Nominal voltage AC [UN] 230 / 400 V Nominal frequency [fN] 50 / 60 Hz Maximum continuous voltage AC [UC] 255 V Lightning impulse current (10/350) [L1+L2+L3-PEN] [Itotal] 75 kA Lightning impulse current (10/350)...

Open the catalog to page 4

interface 5 wieTAP V M TT 255 84.995.1310.0 wieTAP V M TT 255 FM 84.995.1315.0 wieTAP V MOD 255 84.995.1001.0 wieTAP V MOD NPE 100 84.995.1100.0 wieTAP V M TT 255 (FM) wieTAP V MOD 255 wieTAP V MOD NPE 100 Three-phase combined arrester, type 1 For protection of the building power infeed Type Part No. Type Part No. Power network TT and TN-S SPD accord. to EN 61643-11 type 1 SPD accord. to IEC 61643-1 class I Nominal voltage AC [UN] 230 / 400 V Nominal frequency [fN] 50 / 60 Hz Maximum continuous voltage AC [UC] 255 V Lightn. impulse current (10/350) [L1+L2+L3 +N-PE] [Itotal] 100 kA Lightning impulse...

Open the catalog to page 5

interface 6 wieTAP G M TNC 275 84.995.2300.0 wieTAP G M TNC 275 FM 84.995.2305.0 wieTAP G M TNS 275 84.995.2400.0 wieTAP G M TNS 275 FM 84.995.2405.0 wieTAP G M TNC 275 (FM) wieTAP G M TNS 275 (FM) Three-phase surge arrester, type 2 For protection of sub-distributors or the control cabinet power infeed Type Part No. • Surge arrester, type 2 • For TN-C systems • With pluggable protection modules • Function/failure indication • Optional with remote signaling contact for monitoring device • Vibration and shock tested acc. to EN 60068-2 Type Part No. • Surge arrester, type 2 • For TN-S systems •...

Open the catalog to page 6

interface 7 wieTAP G M TT 275 84.995.2310.0 wieTAP G M TT 275 FM 84.995.2315.0 wieTAP G MOD 275 84.995.2010.0 wieTAP G MOD NPE 84.995.2050.0 wieTAP G M TT 275 (FM) wieTAP G MOD 275 wieTAP G MOD NPE Three-phase surge arrester, type 2 For protection of sub-distributors or the control cabinet power infeed Type Part No. • Surge arrester, type 2 • For TT and TN-S systems („3+1“ circuits) • With pluggable protection modules • Function/failure indication • Optional with remote signaling contact for monitoring device • Vibration and shock tested acc. to EN 60068-2 • Replacement modules for all wieTAP...

Open the catalog to page 7

interface 8 wieTAP G S 275 84.995.2070.0 wieTAP G S 275 FM 84.995.2090.0 wieTAP G MOD 275 84.995.2010.0 wieTAP G S 275 (FM) wieTAP G MOD 275 Single-phase surge arrester, type 2 For protection of sub-distributors or the control cabinet power infeed Type Part No. • Surge arrester, type 2 • All-purpose surge arrester • With pluggable protection modules • High discharge capacity due to powerful zinc oxide varistor • High reliability due to arrester monitoring • Slim design (modular construction) acc. to DIN 43880 • Multi-function connection for conductors and comb rails • Optional with remote signaling...

Open the catalog to page 8

interface 9 wieTAP GP C S 84.995.2030.0 wieTAP GP C S FM 84.995.2035.0 wieTAP GP C MOD 84.995.2060.0 wieTAP GP C S (FM) wieTAP GP C MOD Single-phase surge arrester, type 2 For protection of sub-distributors or the control cabinet power infeed Type Part No. • Surge arrester, type 2 • For use in TT systems in "3+1" and "1+1" circuits acc. to E DIN VDE 0100-534 between neutral conductor N and protective conductor PE • High discharge capacity • With pluggable protection modules • Function/failure indication • Optional with remote signaling contact for monitoring device • Vibration and shock tested...

Open the catalog to page 9

interface 10 wieTAP R M 2P 255 84.995.3200.0 wieTAP R M 2P 255 FM 84.995.3205.0 wieTAP R MOD 255 84.995.3010.0 wieTAP R M 2P 255 (FM) wieTAP R MOD 255 Surge arrester, type 3 For direct load protection in control cabinets or sub-distributors Type Part No. • Surge arrester, type 3 • Two-pole surge arrester • High discharge capacity due to powerful zinc oxide varistor • Slim design (modular construction) acc. to DIN 43880 • With pluggable protection modules • Function/failure indication • Optional with remote signaling contact for monitoring device • Vibration and shock tested acc. to EN 60068-2...

Open the catalog to page 10

interface 11 wieTAP G PV 500 SCP 84.995.0500.0 wieTAP G PV 500 SCP FM 84.995.0505.0 wieTAP G PV 500 SCP (FM) Surge protection for solar modules To be used in photovoltaic DC circuits Type Part No. • Single-pole photovoltaic arrester • Type 2 classification acc. to EN 61643-11 • Can be used with all PV systems acc. to IEC 60364-7-712 • High discharge capacity due to powerful zinc oxide varistor • No fire hazard during overload due to combined disconnection and short-circuit device • Function/failure indication • Optional with remote signaling contact for monitoring device Power network photovoltaic...

Open the catalog to page 11
