FACE MILLS
Product catalog summary
Overview: This document provides technical specifications for face mills, specifically focusing on integral shank and fixed pocket face mills. It includes details on part numbers, dimensions, and compatible inserts.
Integral Shank Face Mills:
- Part Number: FM 1500-6 RH
- Lead Angle: 6 degrees
- Diameter (D): 1-1/2 inches
- Shank Diameter (d): 3/4 inches
- Flutes: 2
- Inserts: XPMT 15T3
- Screw Head: SCR-30 T10
Fixed Pocket Face Mills:
- FM 2000-30: 2-inch diameter, 30-degree lead angle, 3 flutes, SCR-30 T10RH/LH screw head
- FM 2000-90: 2-inch diameter, 0-degree lead angle, 3 flutes, SCR-30 T10RH screw head
- FM 3000-30: 3-inch diameter, 30-degree lead angle, 4 flutes, SCR-30 T10RH/LH screw head
- FM 3000-90: 3-inch diameter, 0-degree lead angle, 4 flutes, SCR-30 T10RH screw head
Additional Information: The document references page G21 for further details on insert specifications and grade selection. It highlights the tool's capability to utilize the often unused corner of the insert.
See more
Catalog excerpts

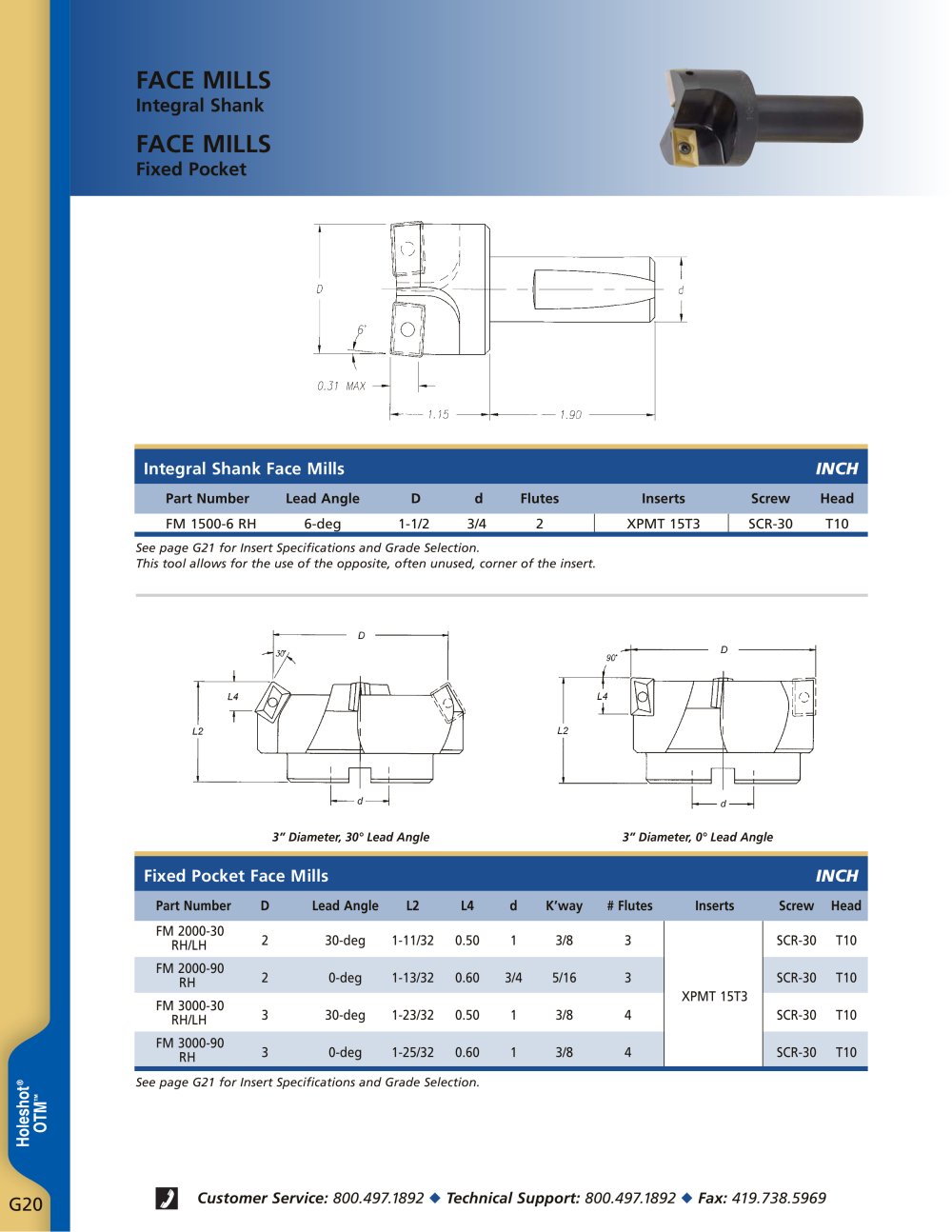

Part NumberLead AngleDdFlutesInsertsScrewHead FM 1500-6 RH6-deg1-1/23/42XPMT 15T3SCR-30T10 See page G21 for Insert Specifications and Grade Selection.This tool allows for the use of the opposite, often unused, corner of the insert. See page G21 for Insert Specifications and Grade Selection. 3 Diameter, 30Lead Angle3 Diameter, 0Lead Angle Customer Service: 800.497.1892 Ң׆ Technical Support: 800.497.1892 ◆ Fax: 419.738.5969 >
