END MILLS

Product catalog summary

Overview: This document provides detailed specifications for various types of end mills, including small diameter, large diameter, extended length, and long edge end mills. Each section includes part numbers, dimensions, and specific capabilities.

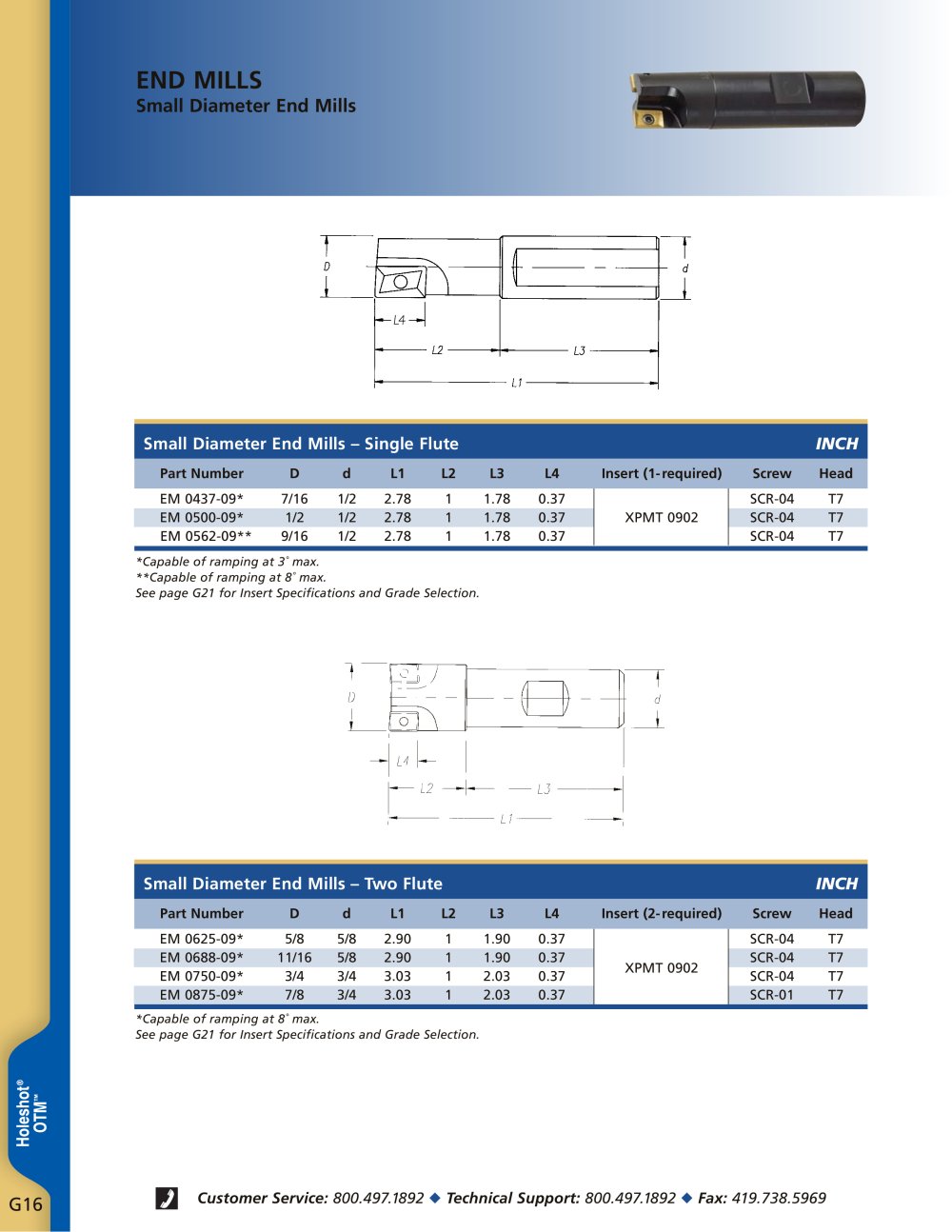

Small Diameter End Mills:

Single Flute: Includes part numbers EM 0437-09, EM 0500-09, and EM 0562-09. These are capable of ramping at a maximum of 8˚.
Two Flute: Includes part numbers EM 0625-09, EM 0688-09, EM 0750-09, and EM 0875-09. These are capable of ramping at a maximum of 3˚.

Large Diameter End Mills:

Single Flute: Includes part numbers EM 0625, EM 0688, EM 0750, EM 0813, and EM 0875. The EM 0625 is designed for light cuts only and is non-returnable.
Two and Three Flute: Includes part numbers EM 0938, EM 1000-09-3F, EM 1000, EM 1000-1005, EM 1125, EM 1250, EM 1250-3F, EM 1375, EM 1500, and EM 1500-3F. These are capable of ramping at a maximum of 8˚.

Extended Length End Mills:

Includes part numbers EM 1000-2.5, EM 1000-3.5, and EM 1250-2.5. These are capable of ramping at a maximum of 8˚.

Long Edge End Mills:

Includes part numbers EM 1250-1500-LE, EM 1500-2000-LE, and EM 2000-2775-LE. These tools have multiple inserts and are designed for specific applications.

Additional Information: For insert specifications and grade selection, refer to page G21. Customer service and technical support are available at 800.497.1892.

Catalog excerpts

Part NumberDdL1L2L3L4Insert (2-required)ScrewHead EM 0625-09*5/85/82.9011.900.37SCR-04T7EM 0688-09*11/165/82.9011.900.37XPMT 0902SCR-04T7EM 0750-09*3/43/43.0312.030.37SCR-04T7EM 0875-09*7/83/43.0312.030.37SCR-01T7 *Capable of ramping at 8˚ max.See page G21 for Insert Specifications and Grade Selection. *Capable of ramping at 3˚ max.**Capable of ramping at 8˚ max. See page G21 for Insert Specifications and Grade Selection. Customer Service: 800.497.1892 ◆ Technical Support: 800.497.1892 ◆ Fax: 419.738.5969 >

Open the catalog to page 1

Part NumberDdL1L2L3L4Insert (1-required)ScrewHead EM 0625ֆ*5/83/42.9011.900.60SCR-16T10EM 0688*11/163/42.9011.900.60SCR-16T10EM 0750*3/43/43.401.501.900.60XPMT 15T3SCR-16T10 EM 0813**13/163/43.401.501.900.60SCR-16T10EM 0875**7/83/43.401.501.900.60SCR-16T10 The EM 0625 is designed for light cuts only because it has a large insert in a small diameter mill. This tool is non-returnable.* Capable of ramping at 3Ƌ max. ** Capable of ramping at 8ڋ max. See page G21 for Insert Specifications and Grade Selection. Part NumberDdL1L2L3L4FlutesInsert (2-3 required)ScrewHead EM 0938*15/163/43.401.501.900.602XPMT...

Open the catalog to page 2

Part NumberDdL1L2L3L4FlutesInsert (2 required)ScrewHead EM 1000-2.5*13/44.402.501.900.602SCR-16T10EM 1000-3.5*115.783.502.280.602XPMT 15T3SCR-16T10 EM 1250-2.5*1-1/414.782.502.280.602SCR-30T10 * Capable of ramping at 8˚ max.See page G21 for Insert Specifications and Grade Selection. See page G21 for Insert Specifications and Grade Selection. Customer Service: 800.497.1892 ◆ Technical Support: 800.497.1892 ◆ Fax: 419.738.5969 >

Open the catalog to page 3
