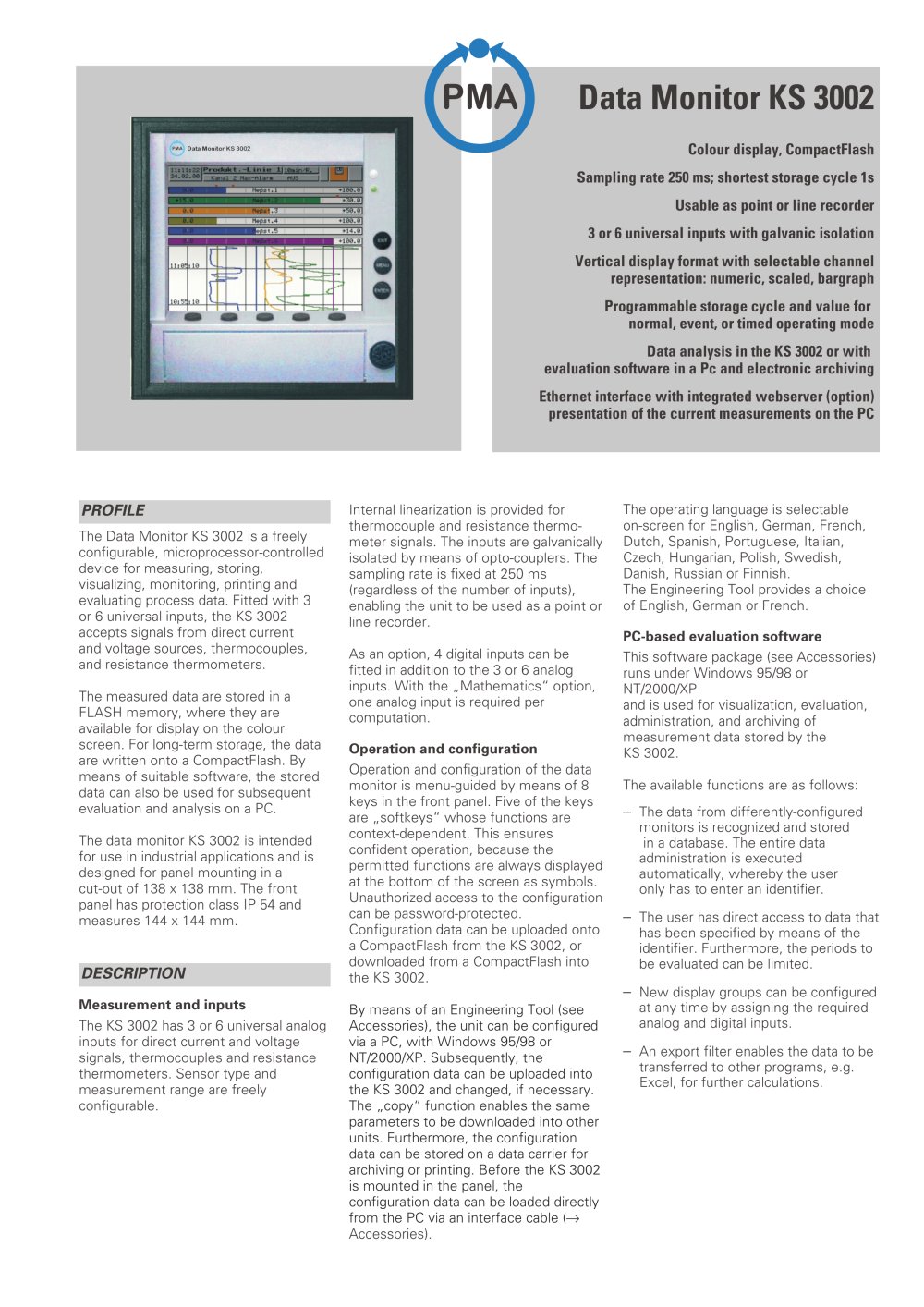

Data Monitor KS 3002 Screen recorder
6Pages

Colour display, CompactFlash Sampling rate 250 ms; shortest storage cycle Is Usable as point or line recorder 3 or 6 universal inputs with galvanic isolation Vertical display format with selectable channel representation: numeric, scaled, bargraph Programmable storage cycle and value for normal, event, or timed operating mode Data analysis in the KS 3002 or with evaluation software in a Pc and electronic archiving Ethernet interface with integrated webserver (option) presentation of the current measurements on the PC The Data Monitor KS 3002 is a freely configurable, microprocessor-controlled device for measuring, storing, visualizing, monitoring, printing and evaluating process data. Fitted with 3 accepts signals from direct current and voltage sources, thermocouples, The measured data are stored in a FLASH memory, where they are available for display on the colour screen. For long-term storage, the data are written onto a CompactFlash. By means of suitable software, the stored data can also be used for subsequent The data monitor KS 3002 is intended designed for panel mounting in a panel has protection class IP 54 and inputs for direct current and voltage signals, thermocouples and resistance thermometers. Sensor type and measurement range are freely Internal linearization is provided for thermocouple and resistance thermo- meter signals. The inputs are galvanically isolated by means of opto-couplers. The sampling rate is fixed at 250 ms (regardless of the number of inputs), enabling the unit to be used as a point or line recorder. As an option, 4 digital inputs can be fitted in addition to the 3 or 6 analog inputs. With the „ Mathematics" option, one analog input is required per Operation and configuration of the data monitor is menu-guided by means of 8 keys in the front panel. Five of the keys are „softkeys" whose functions are context-dependent. This ensures confident operation, because the permitted functions are always displayed at the bottom of the screen as symbols. Unauthorized access to the configuration Configuration data can be uploaded onto downloaded from a CompactFlash into By means of an Engineering Tool (see Accessories), the unit can be configured configuration data can be uploaded into The „copy" function enables the same parameters to be downloaded into other units. Furthermore, the configuration data can be stored on a data carrier for archiving or printing. Before the KS 3002 configuration data can be loaded directly from the PC via an interface cable (—» The operating language is selectable on-screen for English, German, French, Dutch, Spanish, Portuguese, Italian, Czech, Hungarian, Polish, Swedish, Danish, Russian or Finnish. The Engineering Tool provides a choice of English, German or French. PC-based evaluation software This software package (see Accessories) runs under Windows 95/98 or and is used for visualization, evaluation, measurement data stored by the The available functions are as follows: - The data from differently-configured monitors is recognized and stored in a database. The entire data automatically, whereby the user only has to enter an identifier. - The user has direct access to data that has been specified by means of the identifier. Furthermore, the periods to - New display groups can be configured at any time by assigning the required analog and digital inputs. - An export filter enables the data to be transferred to other programs, e.g. Excel, for further calculations.

- The evaluation program supports networking, i.e. several users have ndependent access to the same - By means of an accessory device, data stored in the FLASH memory of modem. Readout can be triggered manually or with a timed function. graphics display with a resolution of 320 x 240 pixels. 27 colours ensure brilliant displays. Measured data are displayed vertically, as with conven- tional chart recorders. By means of a key in the front panel, various display formats are possible for the channels: numeric, scaled, bargraph, or no display. Vertical diagram with numeric channel display, no...

Data processing Analog input values are sampled cyclically at fixed intervals of 250 ms, and are stored in a buffer memory. The stored data is checked for exceeded storage cycle, storage mode and storage data (min, max, mean, current or min+max value), the measurement results are then passed to a ring buffer (FLASH). There are three operating modes, each of which can be configured for storage cycle and storage data: • Normal mode: This is the default setting, and is used as long as there is no alarm, and timed mode has not been • Event mode: This is triggered by an external signal (digital...

Measurement error: range (only guaranteed above 400 °C with Type B, and above 0 °C with Types S and R). Span start and end of span can be configured freely in steps of 0,1 K within the specified max. measuring Cold junction Error of internal cold junction: ±1,0 K External: with reference thermostat The cold junction temperature is configured for a constant value in the Resistance thermometers (two, three Measurement error referred to max. measuring range: Span start and end of span can be confi- gured freely in steps of 0,1 K within the specified max. measuring ranges. Lead resistances —...

POWER SUPPLY Supply voltage Supply voltage effect Power consumption Operating temperature Temperature effect Storage temperature Relative humidity CONFORMITY TESTS The unit meets the relevant European Standards. Electrical safety Electromagnetic compatibility Meets EN 61 326 class A industrie. Material: galvanized sheet steel Depth behind panel: 214 mm Protection mode Data back-up The internal clock is buffered for at least 10 years by means of a lithium battery. If the buffer capacitor is used, the data are retained for 2 weeks data are stored in a non-volatile Flash memory. In addition,...

Connecting diagram Input/output connections for 3/6 channels Connecting symbol Analog Inputs Current input Resistance thermometer Resistance thermometer Resistance thermometer Overall dimensions Supply voltage Supply voltage Relay outputs (optional) Interface (option) (selection of the active interface is done by configuration in the unit) 3 TxD+/RxD+ Received/Transm. data Ethernet (OptionKin prep) I Connector 21. RJ 45 Digital inputs (optional) Supply voltage Digital inputs Voltage controlled internal voltage supply Setup interface The Setup interface is located on the front behind the...
