Compact High Pressure Transmitter Series 310

Product catalog summary

General Overview
The miniature pressure transmitter is designed for installations with limited space, offering small dimensions and excellent performance.

Description
The transmitter features a 30mm housing with a sputtered thin film sensor and electronics. It can withstand severe pressure peaks with a proof pressure of 3 times the full scale (FS). The unit offers various electrical outputs and connections, making it versatile for different applications. Its stainless steel construction ensures durability.

Technical Data

Input: Measuring span ranges from 0 to 5 bar up to 2,200 bar gauge. Proof pressure is 2 times the nominal pressure (PN) up to 1000 bar and 1.5 times PN above 1600 bar. Burst pressure varies from 10 times nominal up to 400 bar to 1.8 times nominal above 1600 bar. The fatigue life exceeds 100 million cycles.
Output: The output signal is linear with a conformity of 0.15% of nominal pressure. Hysteresis and repeatability are ±0.1% of full scale deflection. The response time is less than 4 ms, and long-term drift is 0.1% per year.
Power Supply: Direct current with a supply voltage up to 30 V. Current consumption is 4.5 mA to 20 mA.
Ambient Conditions: The permissible ambient and process temperatures range from -40 to +125 °C. The compensated temperature range is -40 to +120 °C. The device is CE approved for electromagnetic compatibility.

Dimensions and Connections
The transmitter is compact, with a build-up of approximately 35 mm. It offers various pressure ports and electrical connections, including M12 x 1,5, G ¼ A, and others. The housing is made of stainless steel 316 L, with protection modes IP 65 and IP 67 depending on the electrical version.

Mounting and Accessories
Mounting position is not critical, but care must be taken to allow displaced volume to escape in liquid-filled systems. For temperatures above 120 °C, a syphon is recommended. The transmitter can handle pressure spikes with a restrictor or damping device. The maximum mounting torque is 30 Nm, and the weight is approximately 35 g without a connector.

Order Codes and Accessories
Various cables and connectors are available for different electrical connections, with specific order codes provided for each type.

Contact Information
PMA Prozeß- und Maschinen- Automation GmbH, located in Kassel, Germany, provides contact details for further inquiries.

Catalog excerpts

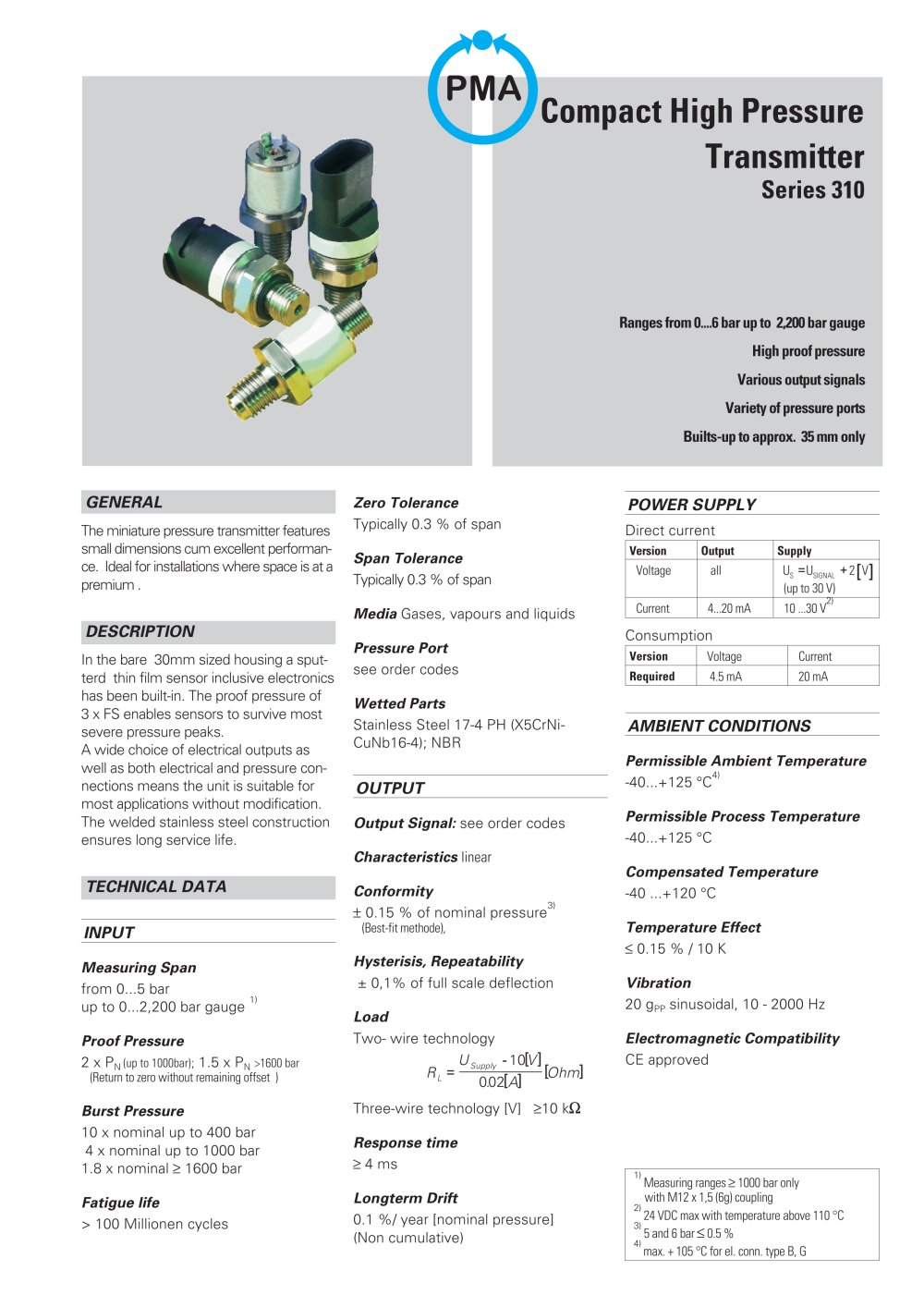

Compact High Pressure Transmitter Series 310-1

Compact High Pressure High proof pressure Various output signals Variety of pressure ports Builts-up to approx. 35 mm only The miniature pressure transmitter features small dimensions cum excellent performan- ce. Ideal for installations where space is at a In the bare 30mm sized housing a sput- terd thin film sensor inclusive electronics has been built-in. The proof pressure of 3 x FS enables sensors to survive most severe pressure peaks. A wide choice of electrical outputs as well as both electrical and pressure con- nections means the unit is suitable for most applications without modification. The welded stainless steel construction ensures long service life. TECHNICAL DATA Measuring Span Proof Pressure (Return to zero without remaining offset ) Burst Pressure Fatigue life Zero Tolerance Span Tolerance Media Gases, vapours and liquids Pressure Port Wetted Parts Output Signal: see order codes Characteristics linear (Best-fit methode), Hysterisis, Repeatability ± 0,1 % of full scale deflection Response time Longterm Drift 0.1 %/ year [nominal pressure] POWER SUPPLY Direct current AMBIENT CONDITIONS Permissible Ambient Temperature Permissible Process Temperature Compensated Temperature Temperature Effect Electromagnetic Compatibility Measuring ranges > 1000 bar only 24 VDC max with temperature above 110 °C

Open the catalog to page 1

Compact High Pressure Transmitter Series 310-2

GVAA mitO-Ring M12x 1,4 Pin, IP 67, freie Enden/free ends Kunden spezifisch

Open the catalog to page 2

Compact High Pressure Transmitter Series 310-3

ELECTRICAL CONNECTIONS Voltage signal

Open the catalog to page 3

Compact High Pressure Transmitter Series 310-4

ORDER CODES Electrical Connections • Via process coupling according to version. It must be assured that during mounting in liquid filled volume freely can escape. For process temperatures above • According to versions with anaerobe sealing material. Pressure spikes • Especially within hydraulic systems with fast acting valves (shut down) transient pressure recommended that a Transmitter is used with a restrictor respectively a damping device fitted to protect designed for such purpose. Mounting Torque approx. 35 g (without connector) RoHS connform Output signal Electrical Connection Pressure...
