2-phase without heatsink

Product catalog summary

Main Characteristics:

2-phase control with a compact design, only 45 mm wide.
Features an LED display and various connection technologies.
Plug-in control terminal with a degree of protection rated at IP 20.

Standards / Approvals:

Complies with DIN EN 60947-4-3, UL 508 / CSA, CE, and C-Tick standards.

Ordering Key:

Includes specifications for load current, connection technology, switching function, controlled phases, control voltage, and operating voltage.
Example: 3RF22 30 - 1 A B 4 5 indicates a solid-state relay without a heat sink, with specific parameters for current, connection, and voltage.

Main Circuit:

Details on maximum load current, power loss, and leakage current for different types (e.g., 3RF2230 and 3RF2255).
Rated operating voltage ranges from 48 to 600 V, with a frequency of 50/60 Hz.

Control Circuit A1-A2:

Control voltage ranges from 4 to 30 V DC, with specific response and drop-out voltages.
Switching times include an ON delay and OFF delay of 1 ms plus a maximum of one half-wave.

General Data:

Operating ambient temperature ranges from -25 to 60 °C, with storage temperatures from -55 to 80 °C.
Mounting altitude up to 1000 m, with specific impact and vibration resistance.
Electromagnetic compatibility includes interference emission and resistance specifications.

Connection Details:

Different connection types available: screw, spring-loaded, and ring cable connections.
Specifications for conductor cross-section, stripping length, and terminal screw details.

Fused Design with Semiconductor Protection:

Details on semiconductor protection fuses for different voltage levels and types.

Accessories:

Function modules available, such as converters for specific types.

Characteristic Curves:

Graphs provided for thermal resistance and power loss at various current levels and ambient temperatures.

Catalog excerpts

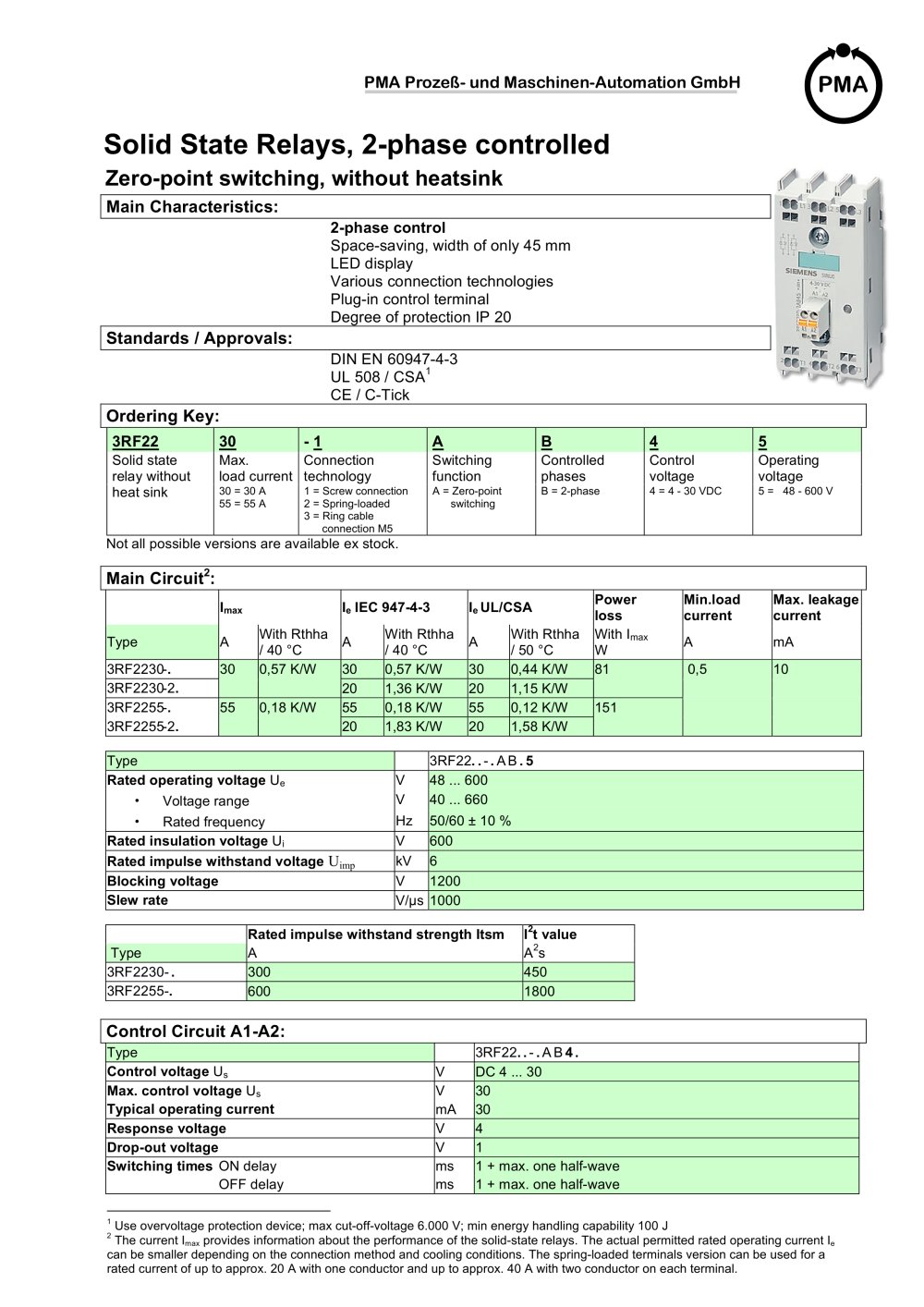

PMA ProzelS- und Maschinen-Automation GmbH Solid State Relays, 2-phase controlled Zero-point switching, without heatsink Main Characteristics: Space-saving, width of only 45 mm Various connection technologies Plug-in control terminal Standards / Approvals: Not all possible versions are available ex stock. 1 Use overvoltage protection device; max cut-off-voltage 6.000 V; min energy handling capability 100 J 2 The current lmax provides information about the performance of the solid-state relays. The actual permitted rated operating current le can be smaller depending on the connection method and cooling conditions. The spring-loaded terminals version can be used for a rated current of up to approx. 20 A with one conductor and up to approx. 40 A with two conductor on each terminal.

Open the catalog to page 1

General Data: Ambient temperature During operation, derating as of 40 °C During storage Mounting altitude Impact resistance acc. to DIN IEC 68 Vibration resistance Degree of protection Electromagnetic compatibility Interference emission o Conducted interference voltage IEC 60 947-4-3 o Radiated, high-frequency interference voltage IEC 60 947-4-3 Interference resistance o Electrostatic discharge acc. to IEC 61 000-4-2 (corresponds to severity 3) o Induced HF fields acc. to IEC 61 000-4-6 o Burst acc. to IEC 61 000-4-4 o Surge acc. to IEC 61 000-4-5 Dielectric Strength 50/60 Hz (Input, Output /...

Open the catalog to page 2

Fused Design with Semiconductor Protection: Semiconductor protection fuse, cylindrical design Full-range fuse LV HBC design gR/SITOR 10 x 38 mm 14 x 51 mm 22 x 58 mm aR / SITOR aR / SITOR aR / SITOR 3NC1032 3NE1814-0 3NC1430 3NC2232 3NC1025 3NE1802-0 3NC2263 3NC1450 3NE1803-0 3NC2250 Type 3RF2230- … . 3RF2230- … . 3RF2255- … . 3RF2255- … . up to 506 V up to 660 V up to 506 V up to 660 V Accessories: Function module Order No. Converter Applicable for the following types 3RF22. . - . A B 4 . 3RF2900-0EA18 Versions Us = AC/DC 24 V Characteristic Curves: 3RF2230Min. thickness of the heat sink the...

Open the catalog to page 3

Deutschland Osterreich ProzefJ- und Maschinen-Automation GmbH PMA ProzefJ- und Maschinen-Automation GmbH D-34058 Kassel Triester Str. 64, A-1100 Wien E-mail: [email protected] E-mail: [email protected] Internet: http://www.pma-online.de Internet: http://www.pma-online.at

Open the catalog to page 4
