General Features

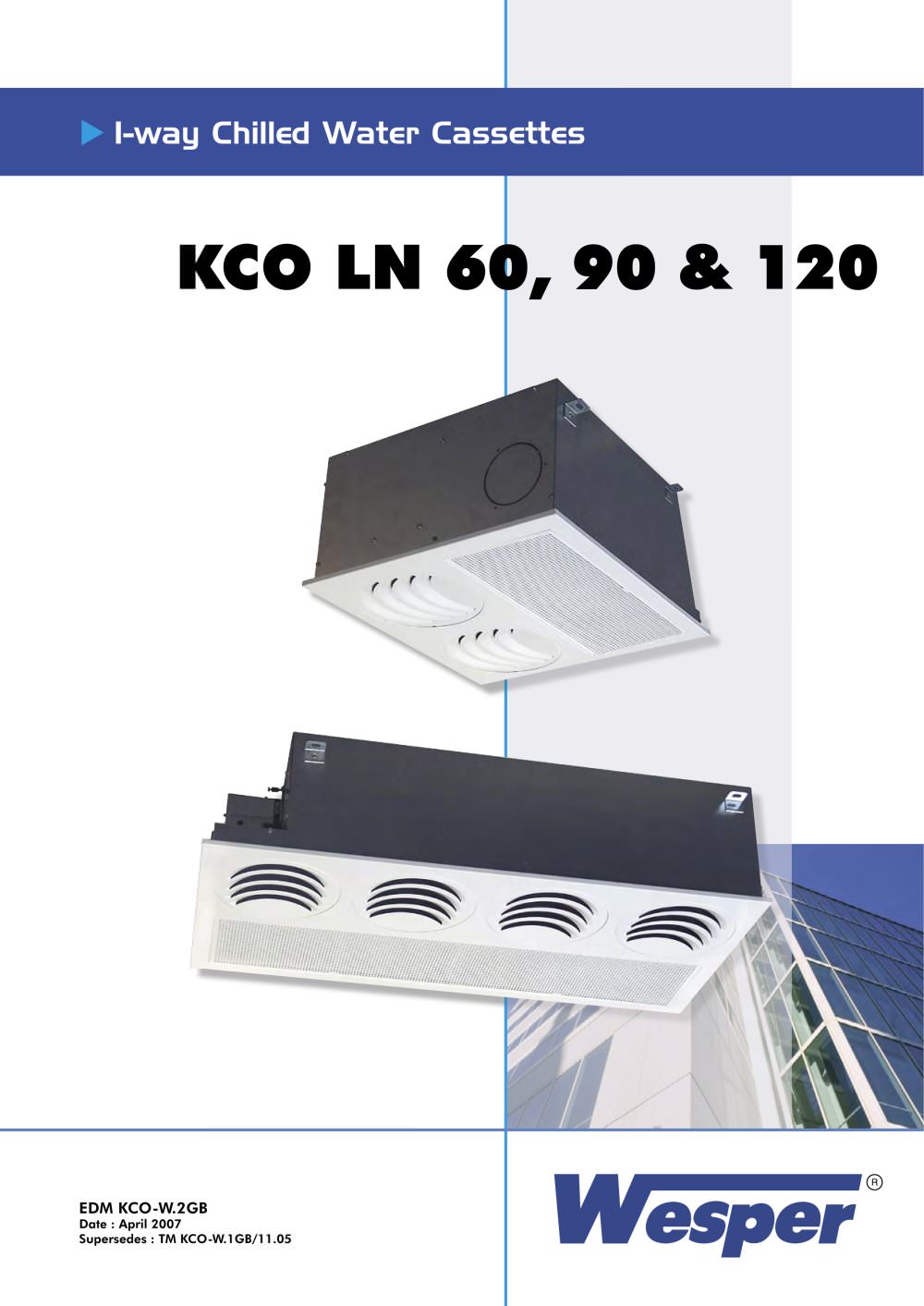

The KCO LN 1-way chilled water cassettes are designed for integration with ceiling tiles, suitable for various applications like offices and hospitals. Key features include a fan-motor assembly, optional fresh air intake, an inclined epoxy-coated condensate drain pan, and optional components like a 3-position condensate pump, control valve, and in-tube electric heating elements. The units have adjustable multidirectional PLAY® diffusers for uniform air distribution.

Presentation
The KCO LN cassettes are available in three models (60, 90, 120) with different ceiling tile sizes and air volume capacities (120 to 700 m3/h). They are offered in multiple configurations, including 2-pipe and 4-pipe systems, with or without height extension for gravity condensate flow.

Casing and Coils
The casing is made from galvanized steel with acoustic insulation. Coils are equipped with ISO-G 1/2" couplings and are pressure tested. The condensate drain pan is removable and washable.

Fan-Motor Assembly
The assembly features dynamically balanced aluminium wheels, consuming up to 53 Watts for model 60 and 105 Watts for model 120. The motor has 6 speeds and includes thermal protection.

Air Filter
The filter is made of cleanable synthetic fibre with a G3 classification, accessible via the return grille.

Options and Accessories
Available options include electric heaters, fresh air intake, regulation valves, height extension, and a low-noise condensate pump.

Performance Data
The document provides detailed performance data, including air throw distances, sound power levels, and cooling/heating capacities for each model and speed setting.

Dimensions and Weight
Dimensions and weights are provided for both standard units and those with height extension.

Hydraulic Connections
Details on hydraulic connections for both standard and height extension units are included.

Note: The document mentions that product specifications are subject to change as part of ongoing improvements.
