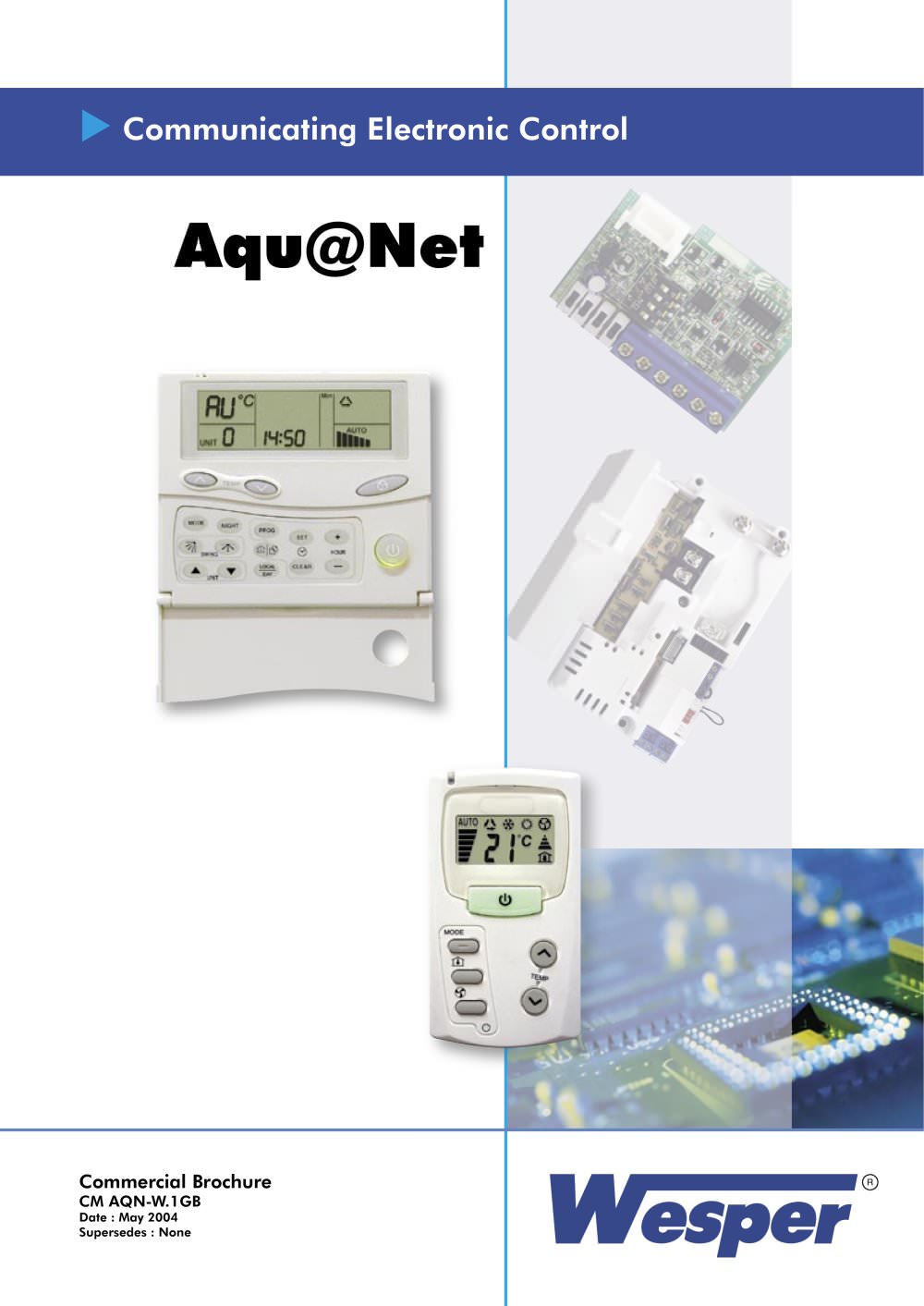

FCC RCL > The Aqu@Net control system forms a cleverly designed package, comprising : - An FCC universal electronic controller, - An RCL user remote control, - An NIU interface board, - A BMS compact monitoring module. NIU յBMS M S > , encompassing all the fan coil units and the chilled or hot water production unit, with all connections interlinked via a communication bus. operating management system Aqu@Net is not only a Aqu@Logic > state of the art electronic control system specially designed for low and high wall mounted, ceiling mounted, ducted or cassette type fan coil units, all...

Every fan coil unit equipped with Aqu@Net control is supplied complete, configured and factory tested. No software programme is required for commissioning. No programming is required. All the parameters are set at the factory. Installation is limited to making the hydraulic and electrical connections to the unit and, possibly the installation of a communication bus. RCL > In its basic version, Aqu@Net functions as an independent electronic control system.In fact, thanks to the RCL room remote control, the user can adjust the fan coil unit operating parameters at his/her convenience. ҵBMS >...

With more than 11 possible configurations , the FCC controller is fully assembled, wired and parameterised at the factory . It requires no adjustment or programming on the part of the installer . The controller is designed to accommodate all types of fan coil unit systems : - 2-pipe system with action on valve and fan ventilation or action on fan ventilation only ;- 2-pipe reversible system by automatic water changeover (action on 4-way valve and/or electric heating coil and fan ventilation or on fan ventilation only) ;- 2-pipe reversible system by automatic water changeover with additional...

As standard, Aqu@Net incorporates automatic management of the anti-freeze protection mode. As soon as the user presses the Stop key, the controller is automatically switched into the anti-freeze protection mode.Aqu@Net offers the possibility of connecting the controller to one or several window contact switches. Thus, several controllers can be connected in series to a single window contact switch. (Refer to the Aqu@Net Installation and Operation manual). > To achieve maximum levels of comfort and wellbeing for the user, the FCC controller enables different operating and fan ventilation...

By successive presses, this key enables the desired operating mode to be selected. This led indicates the working condition of the fan coil unit : > ON : fan coil unit running. Ventilation only mode. OFF : fan coil unit stopped. Slow flashing : Unoccupied mode activated. Cooling only mode (Summer). Rapid flashing : Condensate level alarm. Heating mode (Winter). Automatic operating mode selection (in Heating or Cooling mode). Sending data to the FCC controller or blocked keypad signal. This key enables the fan coil unit(s) to be started or moved into standby mode. These keys enable the...

Aqu@Net is an upgradeable control system . Basically designed for operating in a single zone, the Aqu@Net can evolve towards a multi-zone management system for piloting, via a communication bus, up to 100 fan coil units or 80 fan coil units + 1 hot or chilled water production unit. > As an option, the Aqu@Net controller can be equipped, with an BMS compact monitoring module for controlling and managing, from a single point, the operation of from 80 to 100 fan coil units spread over 15 different zones, in addition to managing the hot or chilled water production unit. > The ŵBMS compact...

Mon 1 2 AUTO AUTO UNIT UNIT 0h6h21h > Mon 1 2 AUTO AUTO UNIT UNIT Mon 1 2 AUTO AUTO UNIT UNIT
