WESPER

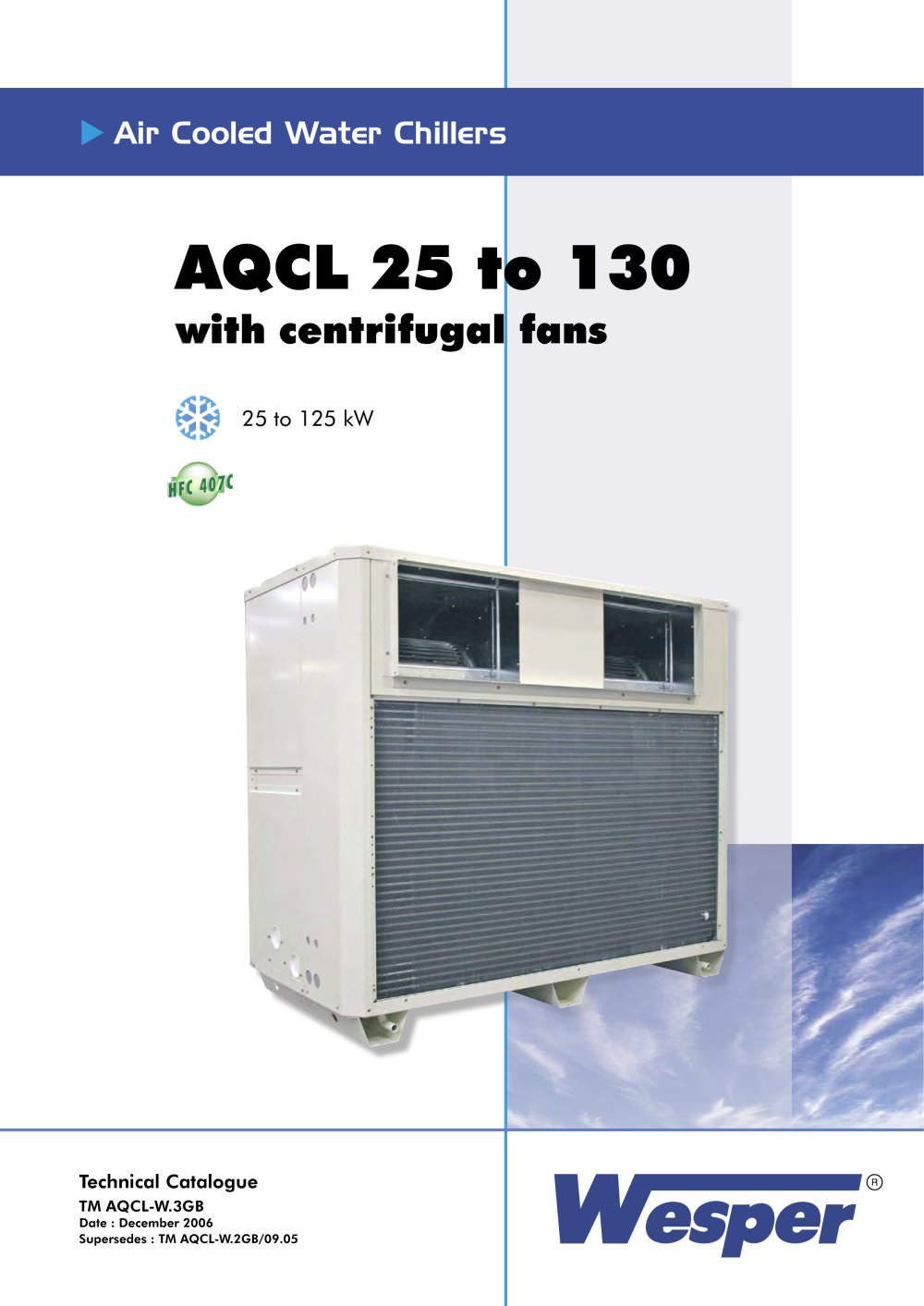

AQCL 25 to 130

AQCL 25 to 130

Product catalog summary

Overview
The AQCL range of air-cooled water chillers features 11 models with cooling capacities from 25 to 125 kW. These chillers incorporate advanced technology for enhanced efficiency and reliability, utilizing ILTC (Intelligent Liquid Technology Chiller) control for optimized performance.

Features and Benefits

High-tech components: Includes Scroll compressors, brazed stainless steel plate heat exchangers, microprocessor-based ILTC control, and HFC 407C refrigerant.
Compact design for easy installation and maintenance.
Enhanced performance with high Coefficient Of Performance (COP) compressors.
Energy savings through intelligent compressor management and reduced need for buffer tanks.

General Specifications

Cabinet made of galvanized steel with epoxy paint.
Hermetically sealed Scroll compressors with low noise and vibration.
Direct expansion evaporator with anti-freeze protection.
Air-cooled condenser coil with copper tubes and aluminum fins.
Belt-driven centrifugal fans with adjustable airflow.
Refrigerant circuit optimized for HFC 407C with pressure sensors and brazed components.
Electrical panel with power supply connections and control circuit.
Integrated hydraulic module for installation efficiency.

ILTC Control System
The ILTC system optimizes chiller operation by managing compressors and fans to reduce energy consumption. It features a user-friendly interface with menus for parameters, sensors, alarms, and operating status. The system adapts to thermal load changes and offers night-time running modes for energy savings.

Safety and Remote Management
The system includes safety devices like water flow switches and thermal relays. It supports remote management functions such as ON/OFF switching and alarm reading.

Operating Limits

Inlet water temperature: 10-30°C at start-up, 10-23°C during running.
Outlet water temperature: 5-18°C without glycol.
Air temperature: 15-46°C (standard), -7-46°C (with fan speed controller).
Correction factors for altitude and fouling are provided.

Hydraulic Circuit
Diagrams illustrate the hydraulic circuit components and configurations for basic and pack versions, including valves, sensors, and pumps.

Technical Document Summary

1. Specifications
The document provides detailed specifications for various models of a cooling system, identified by sizes ranging from 25 to 130. Key specifications include:

Power supply: 400/3+N/50 V/Ph/Hz
Cooling capacity: Ranges from 24.9 kW to 124.8 kW depending on the model size
Total power consumption: Varies from 11.5 kW to 49.8 kW
Refrigerant charge: Between 6.5 kg and 29 kg
Compressor type: Scroll with two capacity reduction stages
Evaporator type: Brazed stainless steel plates
Condenser type: 3/8" copper tube with smooth aluminum fins
Fan type: Centrifugal with two fans per unit
Water connections: Gas-threaded with a diameter of 1"1/2 to 2"

2. Procedures and Recommendations
For installations where the minimum volume requirement cannot be met, an additional buffer tank is recommended. The document also provides guidelines for water and glycol solution volumes based on the unit's expansion tank capacity.

3. Electrical Data
Electrical specifications include:

Fuse aM type and full load current for each model size
Nominal and maximum power consumption and current input for compressors, fan motors, and pumps

4. Sound Data
Sound power levels are provided for different frequencies (63 Hz to 8000 Hz) and are categorized by unit size and fan motor configuration (standard and high static).

5. Performance Data
Performance metrics are detailed for various outdoor air temperatures and leaving water temperatures (LWT), including cooling capacity and input power for each model size.

6. Hydraulic and Heat Exchanger Data
Hydraulic pump external static pressure and heat exchanger water pressure drop data are provided for different models, indicating nominal, minimum, and maximum water flow rates.

7. Dimensions
Overall dimensions for each unit size are specified, including length, width, and height measurements.

Specifications and Dimensions
The document provides detailed dimensions for AQCL units with different sizes ranging from 25 to 130. The dimensions are specified for both opposite and vertical blowing configurations. Key dimensions include parameters A, B, C, D, and E, with measurements provided in millimeters.

Water Connection and Electrical Access
Details are provided for water connections and electrical access for standard, vertical, and opposite blowing configurations. Water connections are noted to be inside the unit and extend approximately 50 mm to the exterior.

Water Connections
Specific water connection details are given for AQCL sizes 25-30-35, 40-50-60-70-80, and 100-120-130. The document specifies the positions for water in and out connections, with dimensions A and B provided for each size.

Minimum Clearance Requirements
The document specifies minimum clearance requirements around the unit for air circulation, with a clearance of 500 mm on the sides and 1000 mm at the front and back.

Additional Information
The document notes that products are subject to change as part of an ongoing improvement program, and all photos are non-contractual. Contact information for the CAC Export Department is provided, along with a note that the distributor's details are available.

Catalog excerpts

The new range of AQCL air cooled water chillers with centrifugal fans is composed of 11 models covering a nominal cooling capacity range from 25 to 125 kW. (2.5 l/kW) and thus eliminating, for the majority of comfort air conditioning applications, the need for a buffer water tank. AQCL represents a new generation of innovative air cooled water chillers, integrating components using the very latest technological advances.These components provide AQCL water chillers with considerable advantages in terms of compact design and improved efficiency and reliability.All AQCL water chillers are equipped...

Open the catalog to page 2

- Direct expansion type, made of brazed stainless steel plates.- The evaporator is surrounded by an electrical heating resistance and insulated with cellular polyurethane foam to provide anti- freeze protection. Access to the electrical panel is possible after having taken off the panel, removable by just releasing the fixing screws. The following equipment is mounted on the power circuit side of the electrical panel : a power supply connection terminal block - 400 V / 3 Ph / 50 Hz + Neutral, a main switch, a phase controller (allowing the presence and the order of the phases to be detected),...

Open the catalog to page 3

- Water pump control with 2 possible operating modes: Continuous operation in ON / OFF mode or operating only in ON mode.- As standard, the ILTC control system offers the possibility of selecting a "Night-time running mode" function. When the "Night-time Running" mode is activated, four operating modes are available : 1st mode : Selected to change the set temperature for energy savings when the building is unoccupied. 2nd mode : Selected to enable the set temperature to be lowered. 3rd mode : Selected to change the set condensing pressure values. The ILTC control system is an intelligent digital...

Open the catalog to page 4

FPC SLC 1CPEC 2D L HPPCPT D FM I EWTSHRP H E EPTFPE LPT TEV AIR LWT S FPC SLC 1CPEC 2 D L HPPCPT D FM I AIR SI EPTFPE LPT LWTS EWTSHRP H E TEV COMPONENTSC1 Compressor 1 FPC Condensation pressure transducer CPE Oil level egalization C2 Compressor 2 FPE Evaporator pressure transducer PHE Plate heat exchanger CPT Condensing pressure tap HPP High pressure switch SI Silencer DF Filter drier HR Evaporator safety heater SL Suction line DL Discharge line LPT Liquid pressure tap TEV Thermostatic expansion valve EPT Evaporator pressure tap LWTS Leaving water temperature sensor EWTS Entering water temperature...

Open the catalog to page 5

020 40 6080100120140 160 180200 2 34567891011 l/s WATER FLOW (l/s)MODEL 100MODEL 120MODEL 130 Nominal (1) 4.745.445.97Minimum (2) 3.163.633.98Maximum (3) 7.909.079.95 (1) Eurovent conditions, Water : 12/7 C, Air : 35 аC. (2) With water ∆T : 7.5 K at nominal capacity. (3) With water ∆T : 3 K at nominal capacity. >

Open the catalog to page 13

Èx 䰓xǣnnxЎn Water inWater out Water in Note : Water connections are inside the unit. > B A 318 > 31850366 300 Water in Water out AQCL sizesA(mm)B(mm)40 274202.5 50 274202.5 60 274202.5 Note : Water connections exceed about 50 mm to exterior. 70 344306 80 344306Water out >
