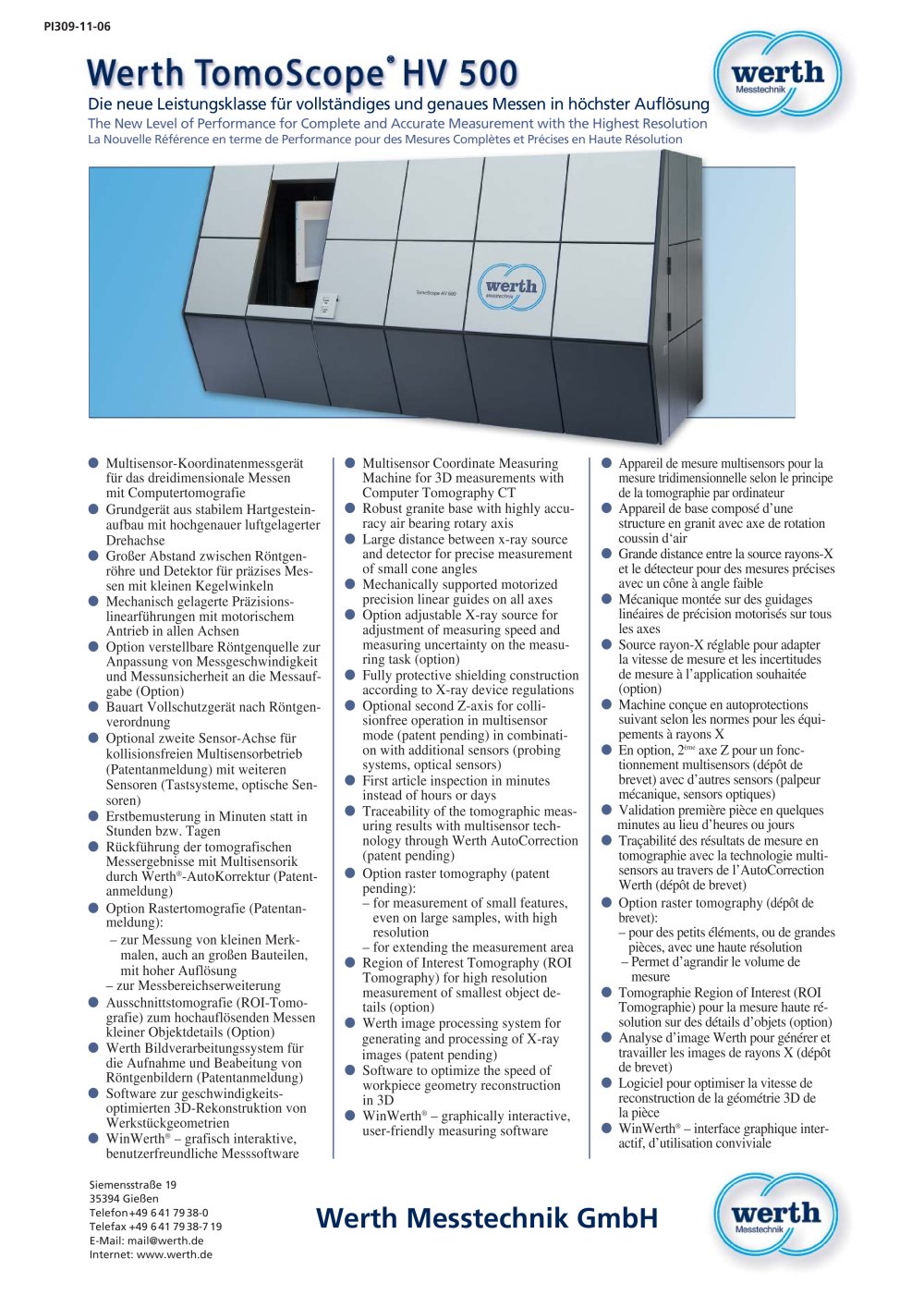

Werth TomoScope'HV 500

Product catalog summary
Overview: The document introduces a new multisensor coordinate measuring machine designed for three-dimensional measurements using computer tomography (CT). It highlights the machine's capabilities in providing complete and accurate measurements with high resolution.
Specifications:
  • The base of the machine is constructed from robust granite with a highly accurate air-bearing rotary axis.
  • It features a large distance between the X-ray source and detector, allowing precise measurement of small cone angles.
  • Mechanically supported motorized precision linear guides are present on all axes.
  • An adjustable X-ray source is available as an option to tailor measuring speed and uncertainty to specific tasks.
  • The machine is designed with full protective shielding according to X-ray device regulations.
Optional Features:
  • A second Z-axis can be added for collision-free multisensor operation, compatible with additional sensors such as probing systems and optical sensors.
  • Raster tomography is available as an option for measuring small features on large samples with high resolution and for extending the measurement area.
  • Region of Interest (ROI) Tomography is offered for high-resolution measurement of small object details.
Technological Innovations:
  • The Werth AutoCorrection system ensures traceability of tomographic measuring results using multisensor technology.
  • The Werth image processing system is designed for generating and processing X-ray images.
  • Software is provided to optimize the speed of 3D reconstruction of workpiece geometries.
  • WinWerth® is a graphically interactive, user-friendly measuring software included with the machine.
Advantages:
  • First article inspection can be completed in minutes instead of hours or days.
  • The machine's design and features allow for precise and efficient measurement processes.
