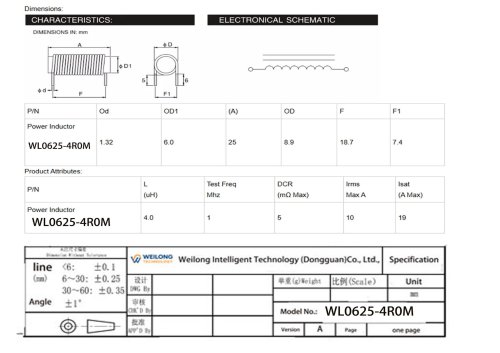

WL0625 Efficiency Ferrite Core Inductor Ferrite core inductors are commonly used in electronic and electric devices where inductors are required. Ferrite core inductors are primarily required in power supply devices. Ferrite core inductors are required to control and maintain voltage levels in power supply devices. Ferrite core inductors are required in DC to DC converters where energy storage is required during switching operations. Ferrite core inductors are required to store energy during switching operations and provide power as required to maintain voltage levels in DC to DC converters....

A ferrite core inductor is a passive electronic component that stores energy in a magnetic field when current flows through a coil wound around a ferrite magnetic core. It is widely used in power supplies, DC-DC converters, filters, and electromagnetic devices. Key Functions: Energy storage Current smoothing EMI suppression Signal filtering The ferrite core directly determines magnetic efficiency, stability, and power loss. A well-designed ferrite core inductor ensures reliable circuit performance and long service life

Working Process: Electric current flows through the coil. A magnetic field is generated in the ferrite core. Energy is stored in the magnetic field. When current changes, the inductor resists the change. The stored energy is released back into the circuit. 1 Stable inductance value 3 Fast magnetic response 4 Reduced electrical noise This working principle helps stabilize voltage and current in power electronics.

Main Components: • Ferrite magnetic core • Copper winding coil • Insulation coating • Lead wires or terminals • Protective sleeve or housing Material Advantages: Ferrite Core: High magnetic permeability Low eddy current loss High frequency performance Copper Coil: Stable conductivity High temperature insulation Structural quality directly Inductance stability and product reliability.
