Product catalog summary

Introduction
FieldPower® is a versatile and cost-effective solution for decentralized power distribution, suitable for industries like mechanical and plant engineering, airports, and automotive production. It features PowerBox distribution boxes, maintenance switches, plug-in connectors, prefabricated cable sets, and accessories, enabling power distribution via uncut cables to reduce installation time and costs while allowing flexibility for future changes.

Specifications
- Rated Voltage: 800 V/600 V UL
- Rated Current: 41 A
- Protection Class: IP 65
- Temperature Range: Assembly from 10°C to +40°C, Operation from -15°C to +55°C
- Material: Polycarbonate, silicone and halogen-free
- Approvals: UL/CSA under preparation

PowerBox Principle
The PowerBox system facilitates decentralized power distribution by allowing connections at any point along the cable using IDC technology. It supports both pluggable and fixed connections, enabling line, tree, and network structures.

Technical Data
- Round Cable: 2.5 – 6 mm²
- Flat Cable: 6 mm²
- Output: 1.5 – 6 mm²

Benefits
- Universal application as feeder, extension, and two-way T-output
- Prefabricated cables or on-site fabrication
- Current-carrying capacity up to 41 A
- Reduces logistics costs and enhances system planning flexibility

Components

PowerBox: Contact element for uncut power cables with T-distribution via Push In connection.
PowerTerminal: Similar to PowerBox but with different ingress protection class (IP 30).
PowerBox F: Includes a fuse connector for overload and short-circuit protection.
Connectors: Push In connection technology for conductors 0.5 to 4 mm², codable and interlocking.
Flat Cable: Rated voltage of 450 V/750 V, suitable for flexible and fixed installations.

Conclusion
FieldPower® offers a comprehensive solution for decentralized power distribution, providing flexibility, reduced costs, and ease of installation. Its modular components and robust specifications make it suitable for a wide range of industrial applications.

Additional Specifications
The document specifies insulation outer diameter as a maximum of 7.5 mm x 26.5 mm, with materials including PVC for sheath and conductor insulation, and copper for the conductor. The cross-section ranges from 1.5 mm² to 6 mm². Rated voltage is 300 V / 500 V with a test voltage of 3 kV. The cables are halogen-free and available in grey.

Procedures
Prefabricated outgoing cables are available for quick connections, with options for different plug-in connectors and wire-end ferrules. The cables come with appropriate housing seals for the PowerBox.

Norms and Standards
Compliance with IP65 protection for seals, which are silicon-free and halogen-free. The seals are made from EPDM material and conform to UL 94 flammability class HB.

Tools
Tools such as sheathing strippers and cutters are detailed, including their technical specifications like maximum stripping performance and cutting capabilities. The sheathing stripper AM 16 is suitable for round PVC cables, while the AMF 6/10 is for PVC-insulated ribbon cables.

Accessories
Various accessories are listed, including cable glands, locknuts, sealing rings, and blanking plugs. These components are made from materials like polyamide and neoprene, with specified temperature ranges and protection classes.

Global Contacts
Contact information for Weidmüller and its partners across various countries, including phone numbers, fax numbers, and email addresses for regions such as the UAE, Argentina, Australia, and more.

Catalog excerpts

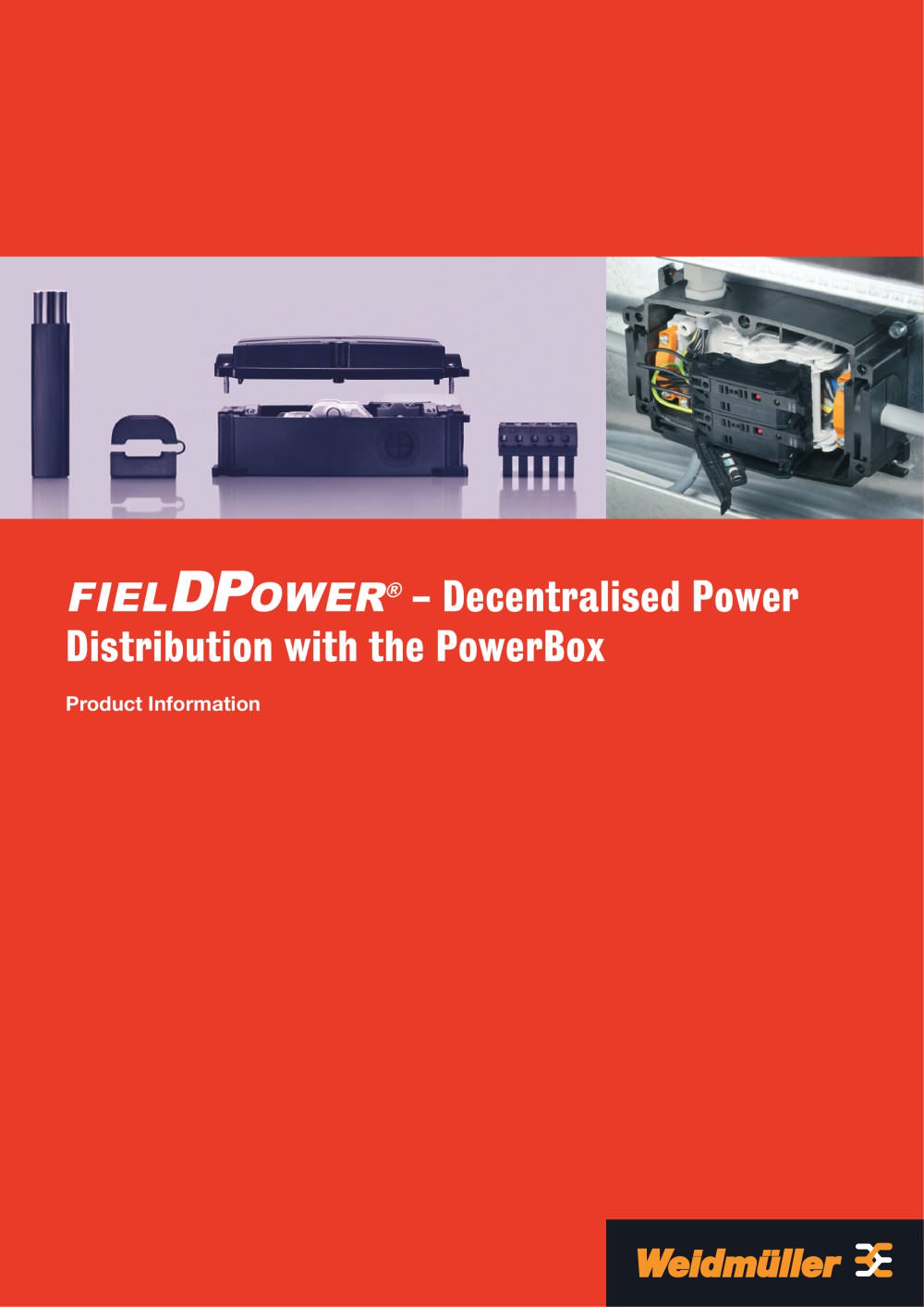

OWER > Ζ Decentralised PowerDistribution with the PowerBox > Product Information size="-1">

Open the catalog to page 1

Rated data to IEC 60947-7-1 Rated data to IEC 60947-7-1 Rated data to IEC 60947-7-1 Rated cross-section Rated voltage/Rated current Rated impulse withstand voltage 6 mm > 2 cross-section 6 mm > 2 cross-section 800 V/41 Aage/Rated current8 kVd impulse withstand voltage 800 V/41 Aage/Rated current8 kVd impulse withstand voltage General data Insulating material/Colour UL 94 flammability class Halogen-free/Silicone-free Ingress protection class Temperature range, assembly, min.-max. Operating temperature, min.-max. General data General data Polycarbonate/black/Colour Polycarbonate/black/Colour 5VA94...

Open the catalog to page 6

Open the catalog to page 7

Rated data to IEC 60947-7-1 Rated data to IEC 60947-7-1 Rated cross-section Rated voltage/Rated current Rated impulse withstand voltage 6 mm > 2 cross-section 690 V/12.5 Ae/Rated current8 kVd impulse withstand voltage General data Insulating material/Colour UL 94 flammability class Halogen-free/Silicone-free Ingress protection class Temperature range, assembly, min.-max. Operating temperature, min.-max. General data Polycarbonate/black/Colour 5VA94 flammability class Yes/Yes-free/Silicone-free IP 65ss protection class 10 аC ... 40 Crange, assembly, min.-max.-15 аC ... 55 Cmperature, min.-max....

Open the catalog to page 8

Rated data to IEC 60947-7-1 Rated data to IEC 60947-7-1 Rated data to IEC 60947-7-1 Rated cross-section Rated voltage/Rated current Rated impulse withstand voltage 4 mm > 2 cross-section 4 mm > 2 cross-section 690 V/32 Aage/Rated current8 kVd impulse withstand voltage 690 V/32 Aage/Rated current8 kVd impulse withstand voltage General information connectors Type of mouting Insulating material/Colour of insulating material UL 94 flammability rating of insulation material Constant operating temp., min.-max. Outgoing direction of conductor Test point Codable Conductor connection system No. of Poles...

Open the catalog to page 9

Technical data Technical data Rated voltage U0/U Test voltage 450 V/750 Vge U0/U2.5 kVoltage General data Cable type Number of conductors Cable identification / arrangement PE conductor Applicationxed installationTemperature range, flexible, min.-max. Temperature range, fixed, min.-max. Bending radius, min., flexible Bending radius, min., fixed Resistance to spread of flame Halogen-free O.D. of insulation, max. External dimension Sheathing colour Sheath material Conductor insulation Conductor material Cross-section General data flate type 5umber of conductors L1;N;L2;PE;L3ication / arrangement...

Open the catalog to page 10

Technical data Allgemeine Angaben Plug-in connector PTS 4 Rated voltage U0/U Test voltage 300 V / 500 V3 kV General data Cable type Number of conductors Length Cable identification / arrangement PE conductor Application Temperature range, flexible, min. -max. Temperature range, fixed, min. -max. Bending radius, min., flexible Bending radius, min., fixed Halogen-free Sheathing colour Sheath material Conductor insulation Conductor material Cross-section round 5 optionally consecutive number imprint Yes Flexible / fixed installation 5 ְC +70 ŰC 40ְC +70 ŰC approx. 12.5 x cable diameter approx. 4...

Open the catalog to page 11

General data General data Material UL 94 flammability class Colour Thickness Cable type Halogen-free Silicone-free Ingress protection class EPDMrial HB94 flammability class blackr 18 mmness roundtype Yesogen-free Yesicone-free IP 65ss protection class Note >

Open the catalog to page 12

General data General data General data Material UL 94 flammability class Colour Thickness Cable type Halogen-free Silicone-free Ingress protection class EPDMrial EPDMrial HB94 flammability class HB94 flammability class blackr blackr 18 mmness 18 mmness flate type Cable type Yesogen-free Yesogen-free Yesicone-free Yesicone-free IP 65ss protection class IP 65ss protection class Note > Clamping range TypeQtyOrder No. TypeQtyOrder No. 8 mm x 27 mm FKDG 8x27 PT610 4323990000 DG D0 PT610 4323240000 Note >

Open the catalog to page 13

Max. stripping performance AM 16 AMF 6/10 Cable model Conductor cross-sectionmm PVC round cable PVC ribbon cable > 2 6 10 Conductor diametermm Max. stripping lengthmm Adjustable depth of cutmm 6Ņ 17.3 0.8 - 2.5 mm 0 - 4.0 mm Cutting performance Max. cutting performancemm > 2 Tool data Lengthmm Weightg 5360 110115 Information > VersionInformation TypeQty.Order No. TypeQty.Order No. AM 161 9204190000 AMF 6/101 9204180000 > TypeQty.Order No. TypeQty.Order No. Spare blade1 9204260000 Spare blade1 9204250000 Information > Sheathing stripper Sheathing stripper

Open the catalog to page 14

Max. cutting performance copper cable KT20 Solid (max. conductor cross-section)mm > 2 / AWGStranded (max. conductor cross-section)mm 16/ 6 > 2 / AWGFlexible (max. conductor cross-section)mm 35/ 2 > 2 / AWGFlexible, Stranded (max. diameter)mm Sector line 70/ 2/0 20 Max. cutting performance aluminium cable Stranded (max. conductor cross-section)mm > 2 / AWGStranded (max. diameter)mm Solidmm 70/ 2/0 2035 > 2 Data-/ telephone-/ control cable O.D. max.mm 20 Tool data Length / width / heightmm Weightg Note 215/ 66/ 29 400 > Tool closed VersionNote TypeQty.Order No. TypeQty.Order No. KT 201 9002300000...

Open the catalog to page 15
