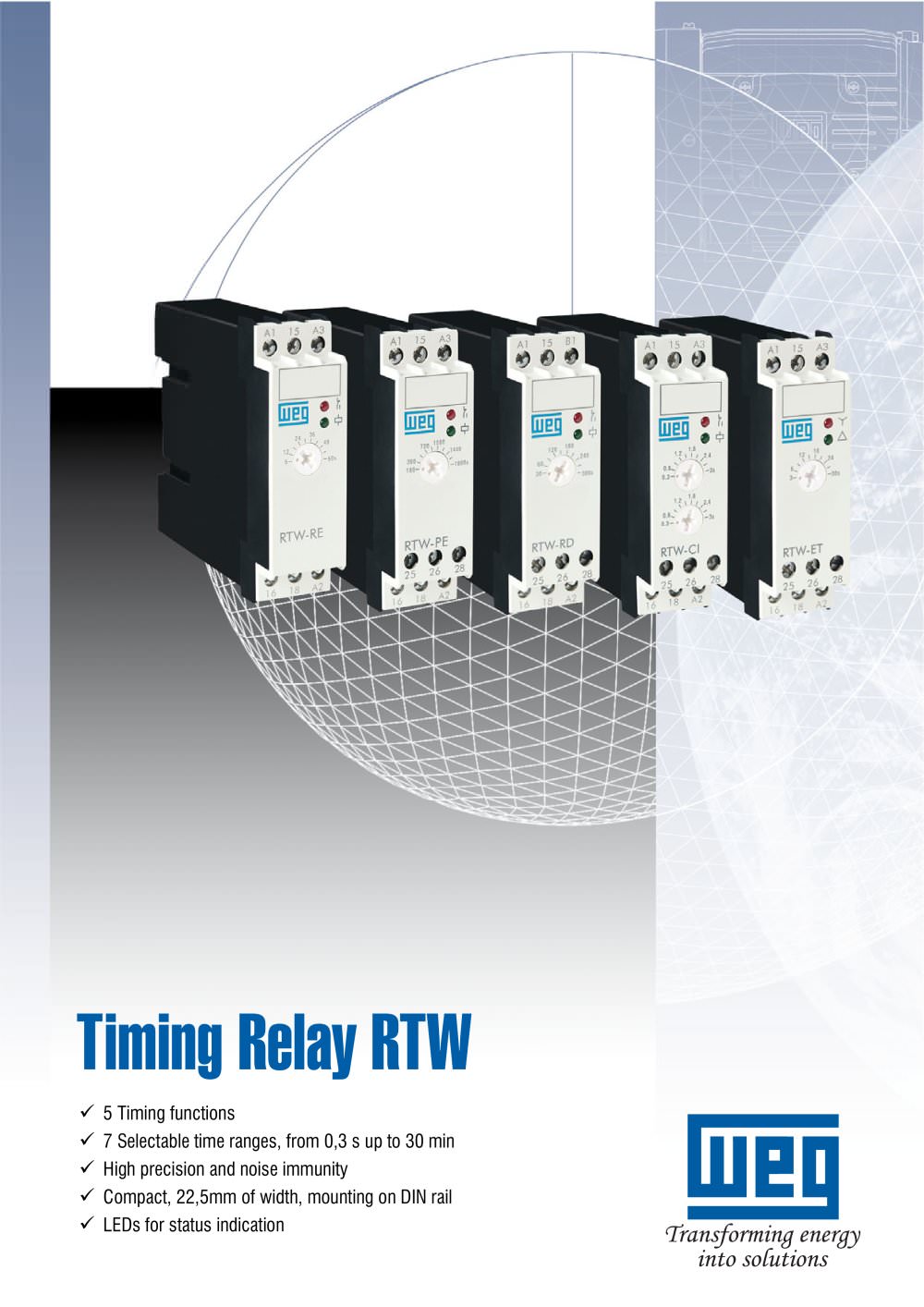

5 Timing functions 7 Selectable time ranges, from 0,3 s up to 30 min High precision and noise immunity Compact, 22,5mm of width, mounting on DIN rail LEDs for status indication >
Open the catalog to page 1The Electronic Timing Relay WEG RTW is a device that allow, in function of adjusted times, switch an output signal in accordance with the selected function, used in automation, industrial processes, motor starters and others. The RTW provides high performance, precision, repeatability and noise immunity. Designed in accordance with the International standards, the RTW constitutes a safe solution, with 22,5mm of width, direct mounting on DIN rail 35mm, with 1 or 2 output contacts (NO/NC) and dual supply voltage 110-130VAC/24VDC, 220-240 VAC/24VDC or 24VAC/24VDC. With 7 timing ranges,...
Open the catalog to page 232 21 1 - Electronic Timing Relay WEG (RTW)2 - Screw fixing acessory (PLMP) 3 - Contactor (CWM9...25) > Timing RelayFunction RE ON-Delay PE ֖ Impulse ON CI Flasher RD ֖ OFF-Delay ET - Star-DeltaNumber of Output Contacts01 1 Contact02 ֖ 2 Contacts Timing Range3 0,3 until 3 seconds10 ֖ 1 until 10 seconds 30 3 until 30 seconds 60 ֖ 6 until 60 seconds 100 10 until 100 seconds 300 ֖ 30 until 300 seconds 1800 180 until 1800 seconds Supply voltage110 ֖ 130 Vac 50/60Hz / 24 Vdc220 240 Vac 50/60 Hz / 24 VdcNote ֖ The RTW RD is single voltage 24Vdc must be selected,... 1E 2E >
Open the catalog to page 4THE NETHERLANDS - WEG NETHERLANDSKeulenstraat 4e 7418 ET Deventer Phone(s): +31 (0) 570-620550 Fax: +31 (0) 570-620560 E-mail: info@weg-netherlands.nl UNITED KINGDOM - WEG ELECTRIC MOTOR (U.K.) LTD28/29 Walkers Road Manorside Industrial Estate North Moons Moat Redditch Worcestershire B98 9HE, United Kingdom Phone: 44 (01527) 596-748 Fax: 44 (01527) 591-133 E-mail: wegsales@wegelectricmotors.co.uk > SPAIN - WEG IBERIA Poligono Industrial Miralrio C/ Ebanistas, 8 - 28891 Velilla de San Antonio Madrid, Spain Phone: 34 91 655 3008 Fax: 34 91 655 3058 E-mail: wegiberia@wegiberia.es BELGIUM - WEG...
