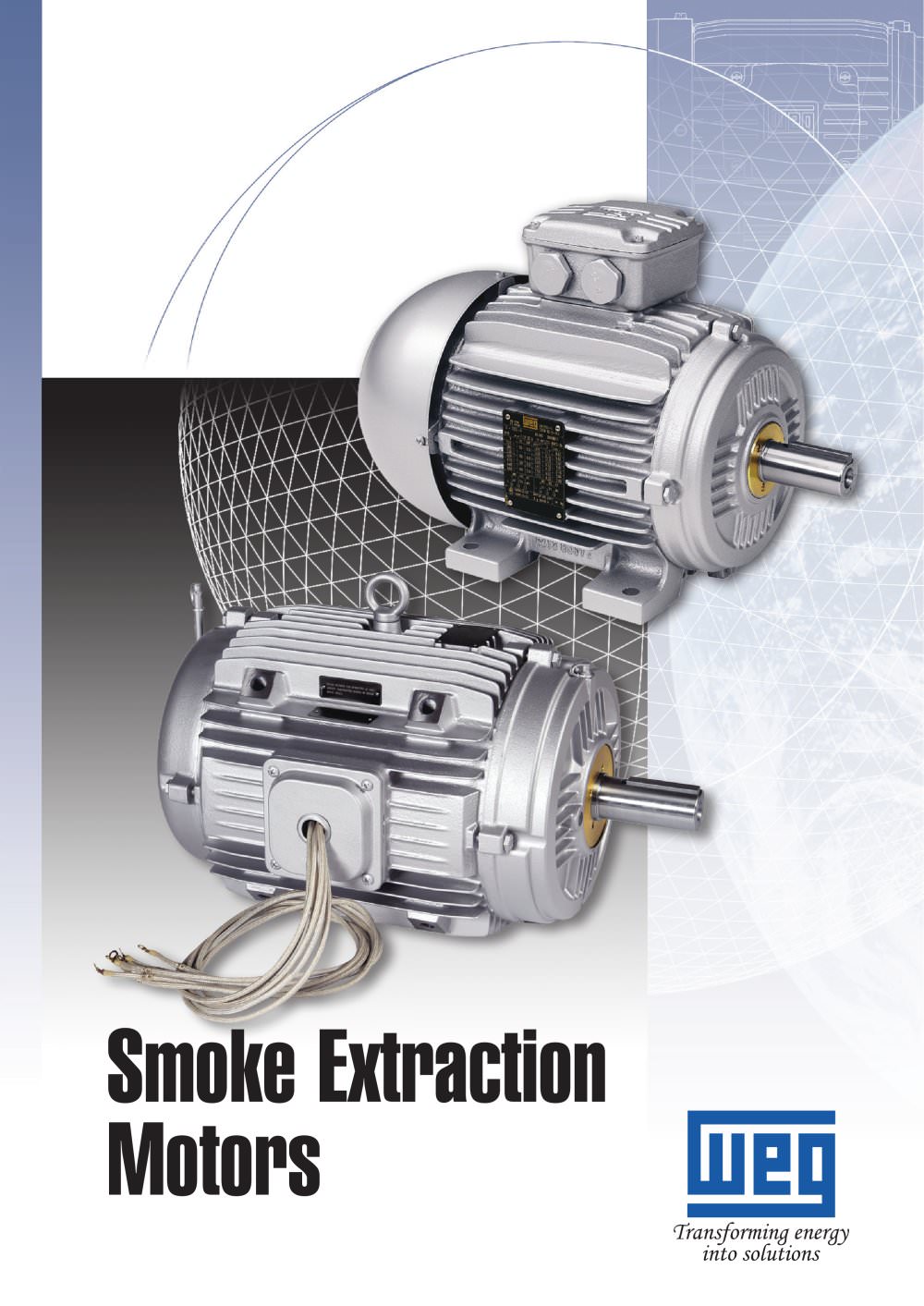

Smoke Application

Smoke Application
38Pages

Catalog excerpts

WEG RANGE OF SMOKE EXTRACTION MOTORS: The high quality of WEG Smoke Extraction Motors is obtained through a strict quality control system and by complying withinternational standards specific to the product, which have resulted in a modern and reliable motor. Smoke Extraction Motors can operate at S1 duty (continuous running) at ambient temperature of 40C and in emergency duty fire condition at S2 duty according to the motor classification of temperature / time combinations. For example, in F400 classification the motor can operate usually at normal operating conditions (at 40ںC) and, on...

Open the catalog to page 3

STANDARD FEATURES:ELECTRICAL: > Three phase Ֆ IP55 - 50Hz > Voltages:Multivoltage Ֆ 220-240/380-415V or 380-415/690V (only for single-speed motors)Single-voltage 220/380V; 380/660V or 415/690V > ֕ Service Factor (SF): 1.0 > Design: N > Օ For 200C/2 hours motors: Thermistors (1/phase) from frame size 160M and above. > ڕ Dip and baked impregnation (frame size 80 up to 200) > Resin continuous flow impregnation (frame size 225S/M and above) > Օ For 400C/2 hours motors: Silicon impregnation MECHANICAL: > ڕ Squirrel cage rotor (Aluminium die cast) > Enclosure:TEFC Ֆ Totally Enclosed Fan...

Open the catalog to page 4

UNITED KINGDOM - WEG ELECTRIC MOTOR (U.K.) LTD28/29 Walkers Road Manorside Industrial Estate North Moons Moat Redditch Worcestershire B98 9HE, United Kingdom Phone: 44 (01527) 596-748 Fax: 44 (01527) 591-133 E-mail: wegsales@wegelectricmotors.co.uk THE NETHERLANDS - WEG NETHERLANDS-Sales Office of WEGEurope Keulenstraat 4E - 7418 ET Deventer, The Netherlands Phone: +31 (0) 570-620550 Fax: +31 (0) 570-620560 E-mail: info@weg-netherlands.nl SWEDEN - WEG SCANDINAVIA ABBox 10196, Verkstadgatan 9 434 22 Kungsbacka,Sweden Phone: (46) 300 73400 Fax: (46) 300 70264 E-mail: info@weg.se > SPAIN...

Open the catalog to page 38
