HS Blue Angel Oil Powered Burner

Product catalog summary

Overview: The HS Model TE combustion systems are designed for superior reliability and ultra-high efficiency. They feature an exclusive flow design that enhances combustion efficiency and versatility, even in poor draft conditions. The Flamelock retention head ensures optimal flame characteristics for maximum efficiency.

Key Features:

Flamelock flame retention head
Wide firing range from 0.50 to 3.00 GPH
High static pressure
Single-piece electrode system

Specifications:

Capacity: 0.50 GPH - 3.00 GPH (above 2.50 GPH requires optional Air Cone P/N 100531-001)
Fuel Pump: Compact size, 3450 RPM, single or two-stage
Controls: Includes Cadmium Sulfide cell
Ignition: 10,000 Volt, constant duty transformer
Motor: Split phase, 1/7 Hp, 3450 RPM, 115 Volt NEMA standard
Fan Housing: One-piece die-cast aluminum alloy
Mounting: Adjustable flange and/or optional pedestal
Nozzle Adaptor: "No drip" design
Air Tube: 4' OD, available in standard lengths
Air Cone: Precision machined, cast iron construction
Shipping Weight: Approximately 36 lbs

Additional Information: The modular design helps reduce inventory costs with a variety of housings, gun assemblies, and air tubes. For firing rates between 2.50-3.00 GPH, an optional air cone is required. Delavan brand nozzles are recommended but not supplied.

Shipping Information: Units are individually cartoned, weighing 33-38 lbs per unit. Pallet configurations vary based on unit size.

Catalog excerpts

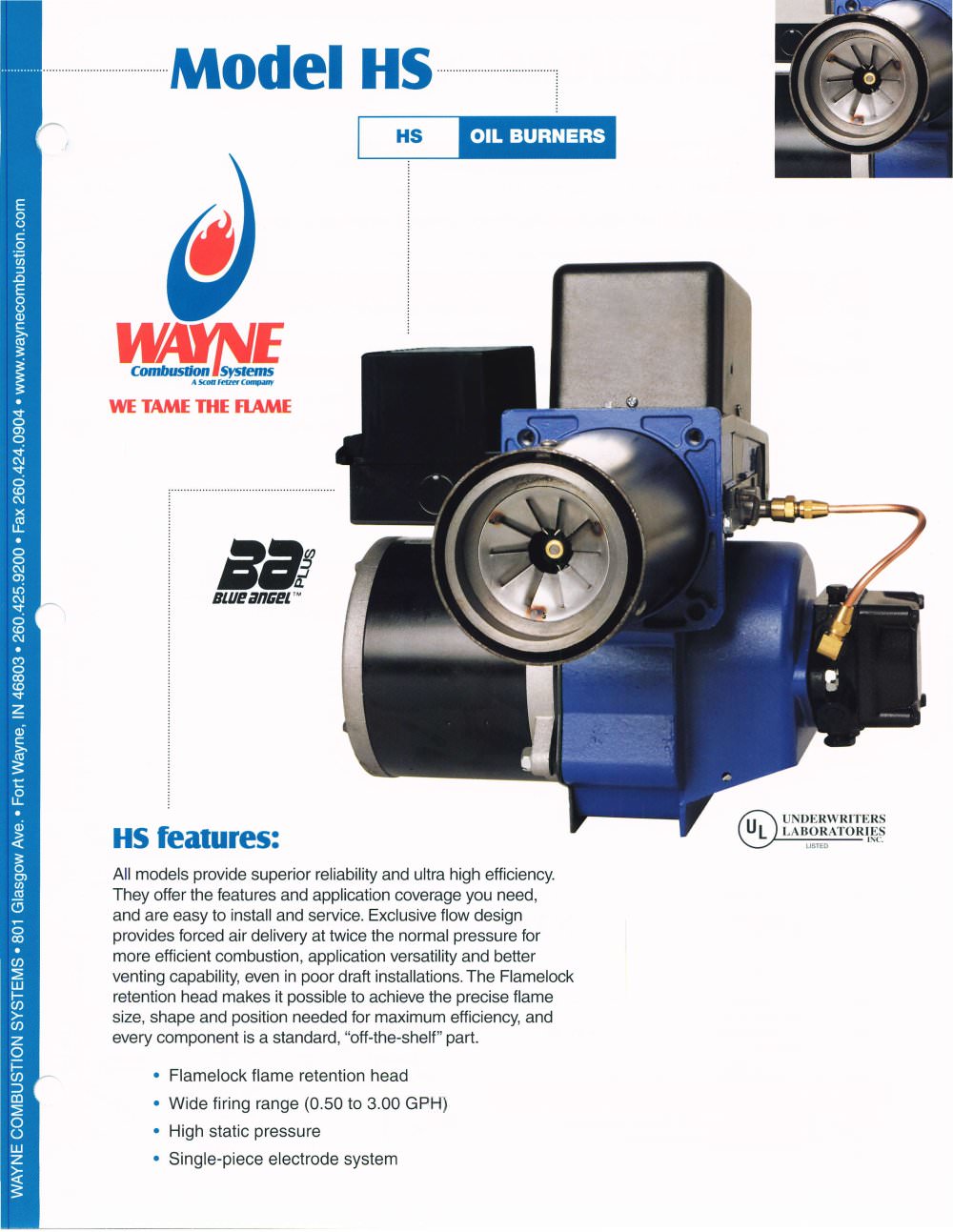

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:18.00pt "Arial", sans-serif; } .font5 { font:36.00pt "Arial", sans-serif; } .font6 { font:54.00pt "Arial", sans-serif; } .font7 { font:4.00pt "Impact", sans-serif; } .font8 { font:9.00pt "Lucida Sans Unicode", sans-serif; } .font9 { font:7.00pt "Sylfaen", serif; } .font10 { font:38.00pt "Trebuchet MS", sans-serif; } Model HS MflMUF Combustion fSystems A Scott Fetzer Company WE TAME THE FLAME sa BiueanEEL HS features: Ail models provide superior reliability and ultra high efficiency. They offer the features and application coverage you need, and are easy to install and service. Exclusive flow design provides forced air delivery at twice the normal pressure for more efficient combustion, application versatility and better venting capability, even in poordraft installations. The Flamelock rtention head makes it possible to achieve the prcise flame size, shape and position needed for maximum efficiency, and every component is a standard, "off-the-shelf" part. 驕 Flamelock flame rtention head Wide firing range (0.50 to 3.00 GPH) 镕 High static pressure Single-piece թlectrode system -v UNDERWR1TERS U| ) LABORATORIES - INC.
