FH Oil Powered Burners
2Pages

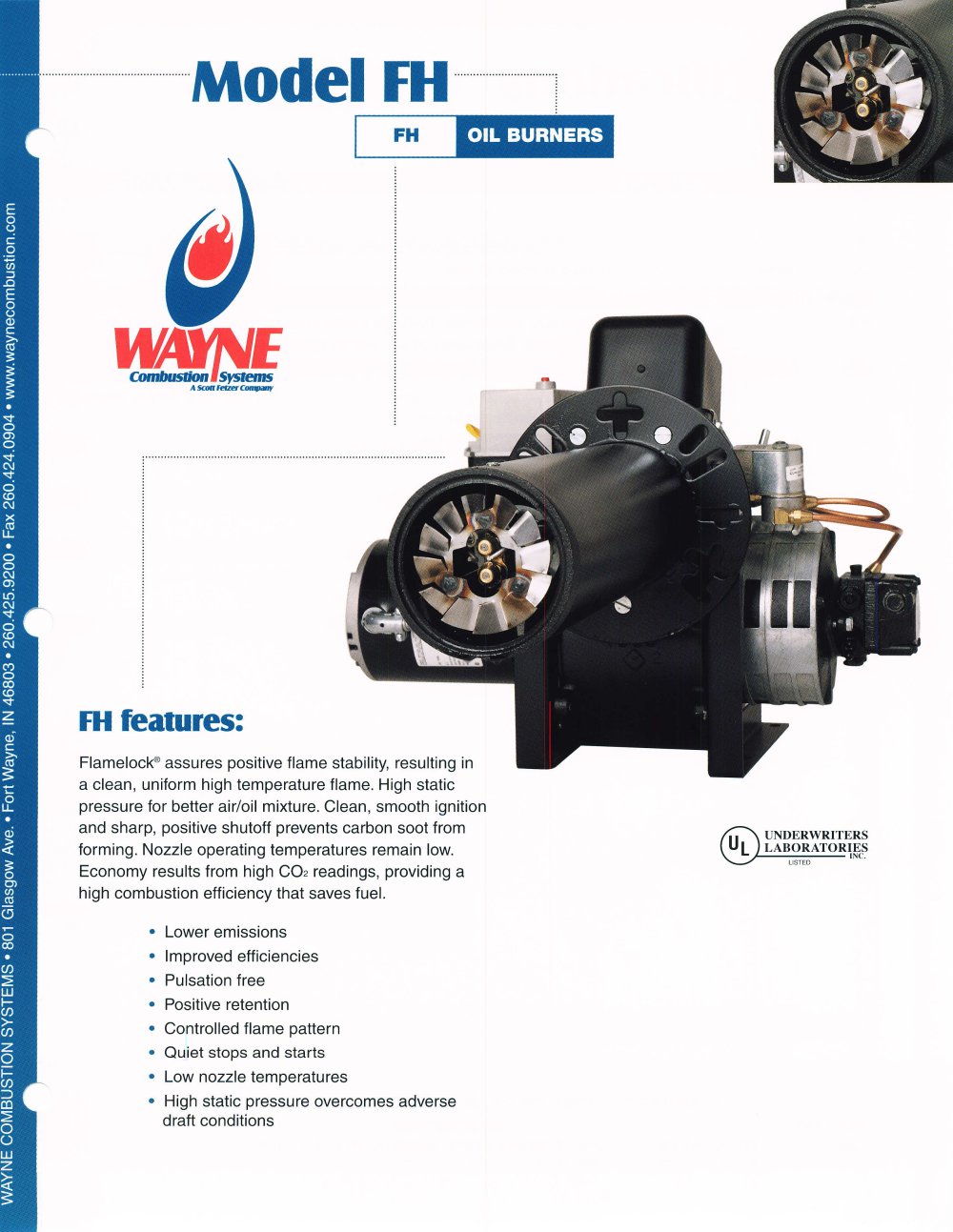

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Georgia", serif; } .font1 { font:24.00pt "Georgia", serif; } .font2 { font:5.00pt "Lucida Sans Unicode", sans-serif; } .font3 { font:4.00pt "Trebuchet MS", sans-serif; } .font4 { font:6.00pt "Trebuchet MS", sans-serif; } .font5 { font:9.00pt "Trebuchet MS", sans-serif; } .font6 { font:10.00pt "Trebuchet MS", sans-serif; } .font7 { font:12.00pt "Trebuchet MS", sans-serif; } .font8 { font:24.00pt "Trebuchet MS", sans-serif; } .font9 { font:42.00pt "Trebuchet MS", sans-serif; } wmiE Combusti Systems A Scott feaer Company m features: Flamelock® assures positive flame stability, resulting in a clean, uniform high temperature flame. High static pressure for better air/oil mixture. Clean, smooth ignition and sharp, positive shutoff prevents carbon soot from forming. Nozzle operating tempratures remain low. Economy results from high CO2 readings, providing a high combustion efficiency that saves fuel. Lower 镩missions Improved efficiencies Օ Pulsation free Positive rթtention Controlled flame pattern Օ Quiet stops and starts Low nozzle tempթratures High static pressure overcomes adverse draft conditions oil burners 'H\ UNDERWRITERS U| )LABORATORIES - INC.

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:24.00pt "Georgia", serif; } .font1 { font:6.00pt "Trebuchet MS", sans-serif; } .font2 { font:9.00pt "Trebuchet MS", sans-serif; } .font3 { font:12.00pt "Trebuchet MS", sans-serif; } .font4 { font:16.00pt "Trebuchet MS", sans-serif; } .font5 { font:36.00pt "Trebuchet MS", sans-serif; } Spcifications fh oil burners J 1 fh oil burner 1 Capacity 4.00 GPH thru 13.00 GPH (560,000 - 1,820,000 Btu/Hr), No. 1 or No. 2 fuel oil. Fuel Pump Standard 3450 RPM two stage fuel pump - easy to service. Solenoid Oil Valve Standard...
