EHG Gas Powered Burners

Product catalog summary

Applications: The EHG power gas burners are versatile and can be used in boilers, furnaces, water heaters, incinerators, ovens, commercial cooking equipment, dryers, and parts washers.

Key Features: The Wayne Model EHG burners are designed for high performance and reliability. They offer higher static pressure than standard burners, good combustion in poor draft situations, and can easily convert to fire LP or Natural Gas. The flame retention head allows for adaptable flame shapes, and the partial premix head design ensures excellent combustion characteristics.

Serviceability: The burners are designed for easy serviceability, with no need to remove the burner for normal service. The gas gun assembly can be easily removed for complete service or component replacement, and external orifice changes are straightforward.

Installation Flexibility: The burners offer flexibility in installation, with adjustable flanges and a complete range of marked orifice sizes. They are equipped with Power On and Fuel On indicator lights.

Certifications: The burners are certified to UL795 and CGA 3.4 standards.

Specifications: The burners have firing rates from 425M to 700M Btu and can use Natural or LP Gas. They feature a Honeywell S89G 2 rod direct ignition system, a 10,000-volt ignition transformer, and a 3450 RPM motor. The fan housing is made of aluminum alloy, and the air tube is available in various lengths.

Shipping Information: Each burner is individually cartoned, with a burner weight of up to 48 lbs and a pipetrain weight of 11 lbs.

Catalog excerpts

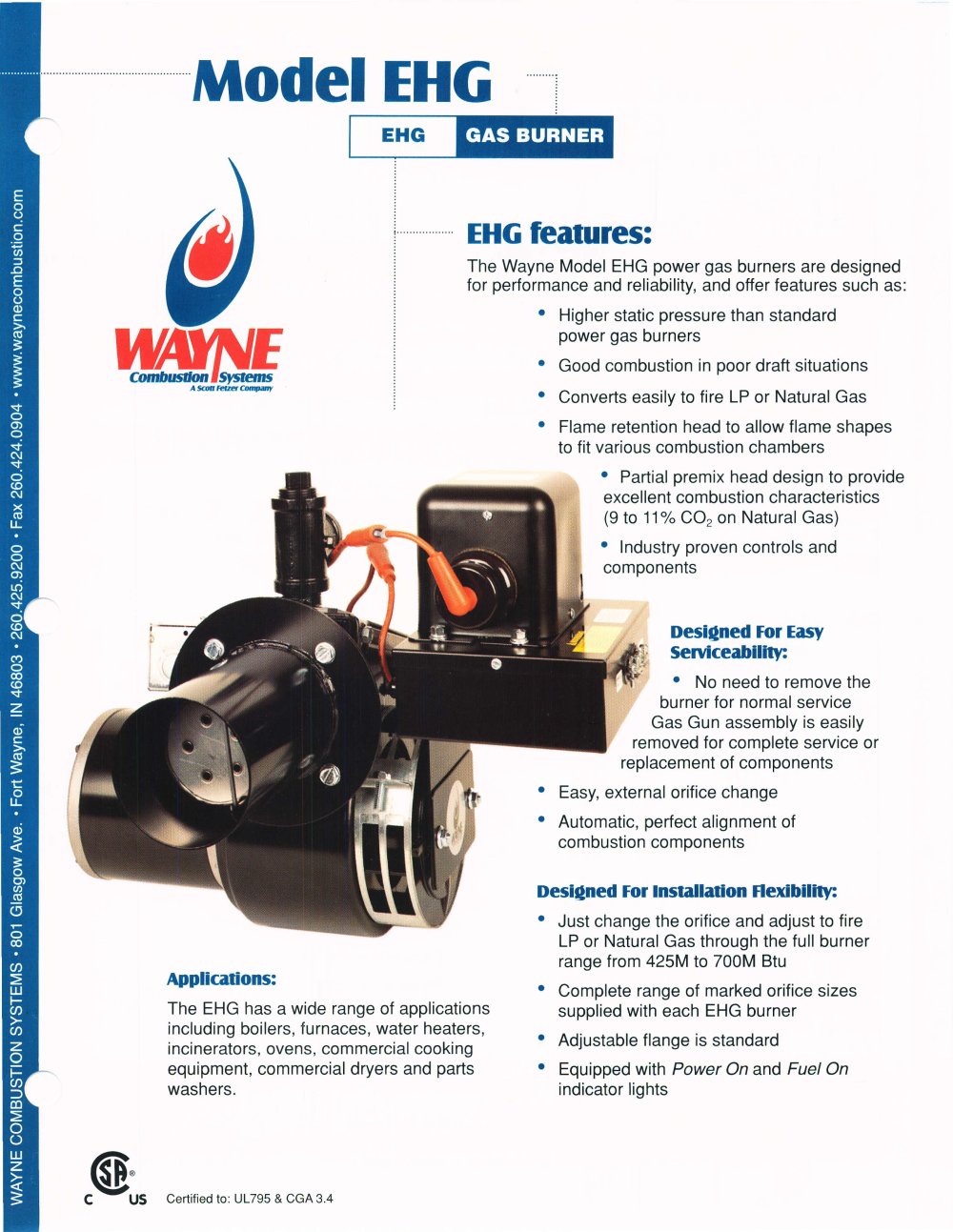

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Arial Black", sans-serif; } .font1 { font:11.00pt "Arial Black", sans-serif; } .font2 { font:34.00pt "Arial Black", sans-serif; } .font3 { font:4.00pt "Microsoft Sans Serif", sans-serif; } .font4 { font:7.00pt "Microsoft Sans Serif", sans-serif; } .font5 { font:8.00pt "Microsoft Sans Serif", sans-serif; } .font6 { font:9.00pt "Microsoft Sans Serif", sans-serif; } .font7 { font:19.00pt "Microsoft Sans Serif", sans-serif; } Model EHG EHG GAS BURNER EHG features: The Wayne Model EHG power gas burners are designed for performance and reliability, and offer features such as Higher static pressure than standard power gas burners Օ Good combustion in poor draft situations Converts easily to fire LP or Natural Gas Օ Flame rtention head to allow flame shapes to fit various combustion chambers Partial premix head design to provide excellent combustion characteristics (9 to 11% C02 on Natural Gas) Industry proven controls and components Combusti 1 Systems A Scott fetzer Company Applications: The EHG has a wide range of applications including boilers, furnaces, water heaters, incinerators, ovens, commercial cooking equipment, commercial dryers and parts washers. Designed For Easy Serviceability: 镕 No need to remove the burner for normal service Gas Gun assembly is easily removed for complte service or replacement of components Easy, external orifice change Automatic, perfect alignment of combustion components Designed For installation Flexibiliry: Just change the orifice and adjust to fire LP or Natural Gas through the full burner range from 425M to 700M Btu Complte range of marked orifice sizes supplied with each EHG burner Adjustable flange is standard Equipped with Power On and Fuel On indicator lights C ^^US Certifi訩e! to: UL795 & CGA 3.4
