- EH EHA EHASR Oil Powered Burners
EH EHA EHASR Oil Powered Burners
EH EHA EHASR Oil Powered Burners
- Flamelock ensures positive flame stability, resulting in a clean, uniform high-temperature flame.
- High static pressure improves air-fuel mixture, leading to clean ignition and sharp, no-drip shutoff, preventing carbon soot formation.
- Economical operation with high CO2 readings for efficient combustion and fuel savings.
- Lower emissions and improved efficiencies.
- Pulsation-free operation with positive retention and controlled flame pattern.
- Quiet starts and stops with low nozzle temperatures.
- High static pressure overcomes adverse draft conditions.
- Capacity: 3.00 G.P.H. to 6.00 G.P.H. for single-stage fuel units; 0.75 GPH to 3.00 GPH for two-stage fuel units.
- Fuel Pump: Standard 3450 RPM, easy to service, available in one or two stages.
- Controls: Standard 15-second control with cadmium cell installed.
- Ignition: 10,000 V constant duty transformer, TV-Radio interference proof, with swing-away design for easy access.
- Motor: 1/4 HP, NEMA Standard, Split Phase 3450 RPM, 115 V / 60 Hz.
- Fan Housing: One-piece die-cast, high-strength aluminum alloy for lifetime alignment and quiet operation.
- Mounting: Adjustable flange standard on 300 Series; pedestal mount available.
- Nozzle Adapter: Patented no-drip brass adapter for sharp oil cutoff and air bleeding.
- Air Adjustment: Patented dual air adjusting bands for positive adjustment.
- Air Tube: Heavy-duty 13 gauge seamless material.
- Serviceable: Easy access for quick inspection and cleaning without special tools.
- Shipping Weight: Approximately 42 lbs for single-stage units, 38 lbs for two-stage units.
- Equipped with 15 sec. safety timing safety primary control, cad cell, and oil valve.
- Available tube lengths for single-stage units: 6", 9", 12", 15".
- Available tube lengths for two-stage units: 6", 9", 12".
Catalog excerpts

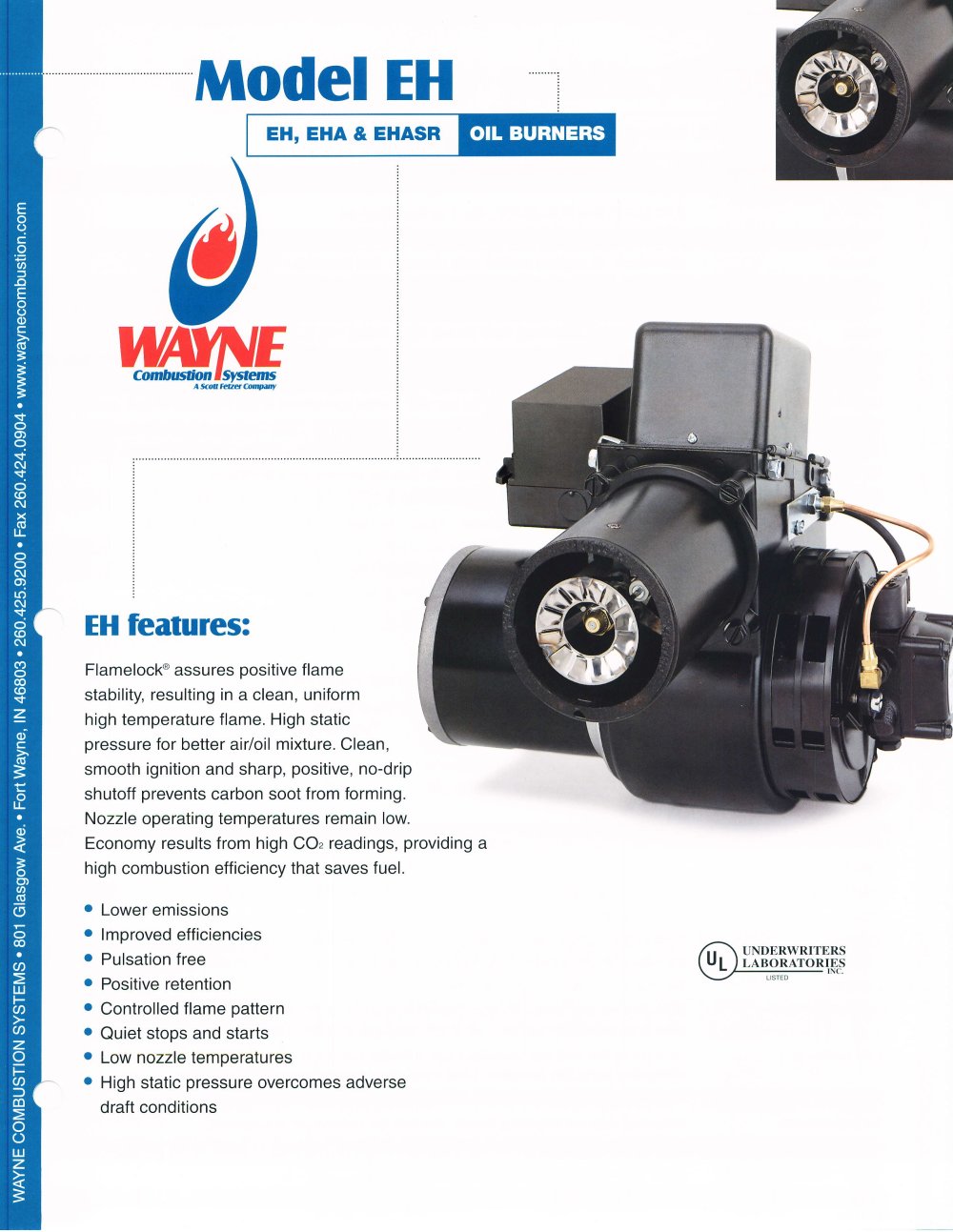

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:11.00pt "Arial Black", sans-serif; } .font1 { font:34.00pt "Arial Black", sans-serif; } .font2 { font:9.00pt "Georgia", serif; } .font3 { font:4.00pt "Microsoft Sans Serif", sans-serif; } .font4 { font:8.00pt "Microsoft Sans Serif", sans-serif; } .font5 { font:9.00pt "Microsoft Sans Serif", sans-serif; } .font6 { font:19.00pt "Microsoft Sans Serif", sans-serif; } .font7 { font:37.00pt "Microsoft Sans Serif", sans-serif; } Model EH EH,EHA & EHASR OIL BURNERS wmiE Combusti tSystems A Scott fetzer Company EH features: Flamelock® assures positive flame stability, resulting in a clean, uniform high temprature flame. High static pressure for better air/oil mixture. Clean, smooth ignition and sharp, positive, no-drip shutoff prevents carbon soot from forming. Nozzle operating tempratures remain low. Economy results from high CO2 readings, providing a high combustion efficiency that saves fuel. 驕 Lower missions Improved efficiencies 镕 Pulsation free Positive rթtention Controlled flame pattern Օ Quiet stops and starts Low nozzle tempթratures High static pressure overcomes adverse draft conditions
