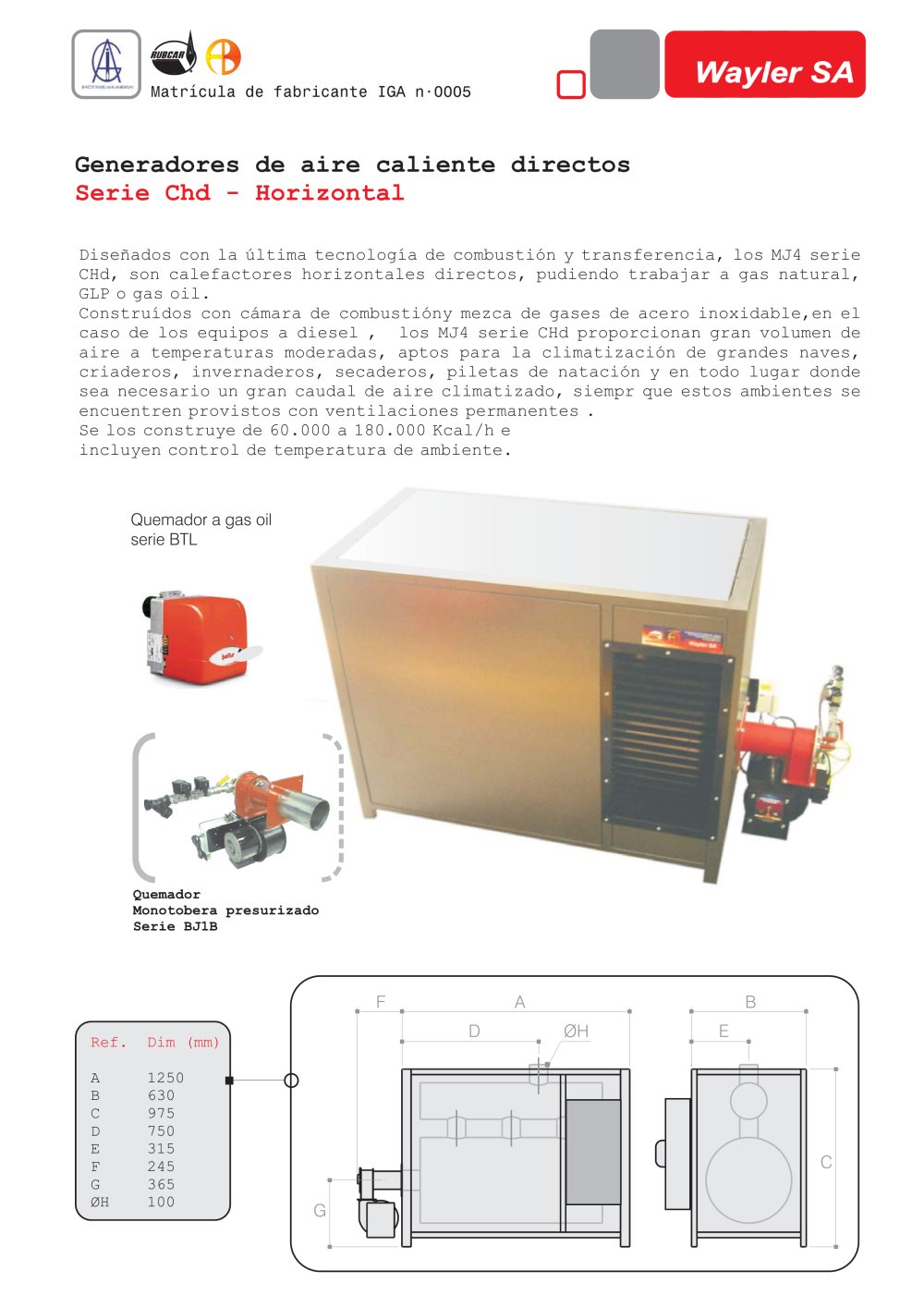

Direct Hot Air Generators - CHd Series (Horizontal)

The MJ4 CHd series are direct horizontal hot air heaters designed with advanced combustion and heat transfer technology. They operate on natural gas, LPG, or diesel fuel.

Construction and Features

• Combustion chamber and gas mixing components are made of stainless steel for durability, especially in diesel models.
• Provide large volumes of air at moderate temperatures.
• Suitable for heating large spaces such as warehouses, hatcheries, greenhouses, drying rooms, swimming pools, and any environment requiring high airflow with climate control.
• Permanent ventilation is required in the heated spaces for safe operation.

Technical Specifications

• Heating capacity ranges from 60,000 to 180,000 Kcal/h.
• Includes ambient temperature control for precise climate management.

Dimensions (in millimeters)

• A: 1250
• B: 630
• C: 975
• D: 750
• E: 315
• F: 245
• G: 365
• ØH (Diameter): 100

Burner

Equipped with BTL series diesel burner for fuel oil operation.
