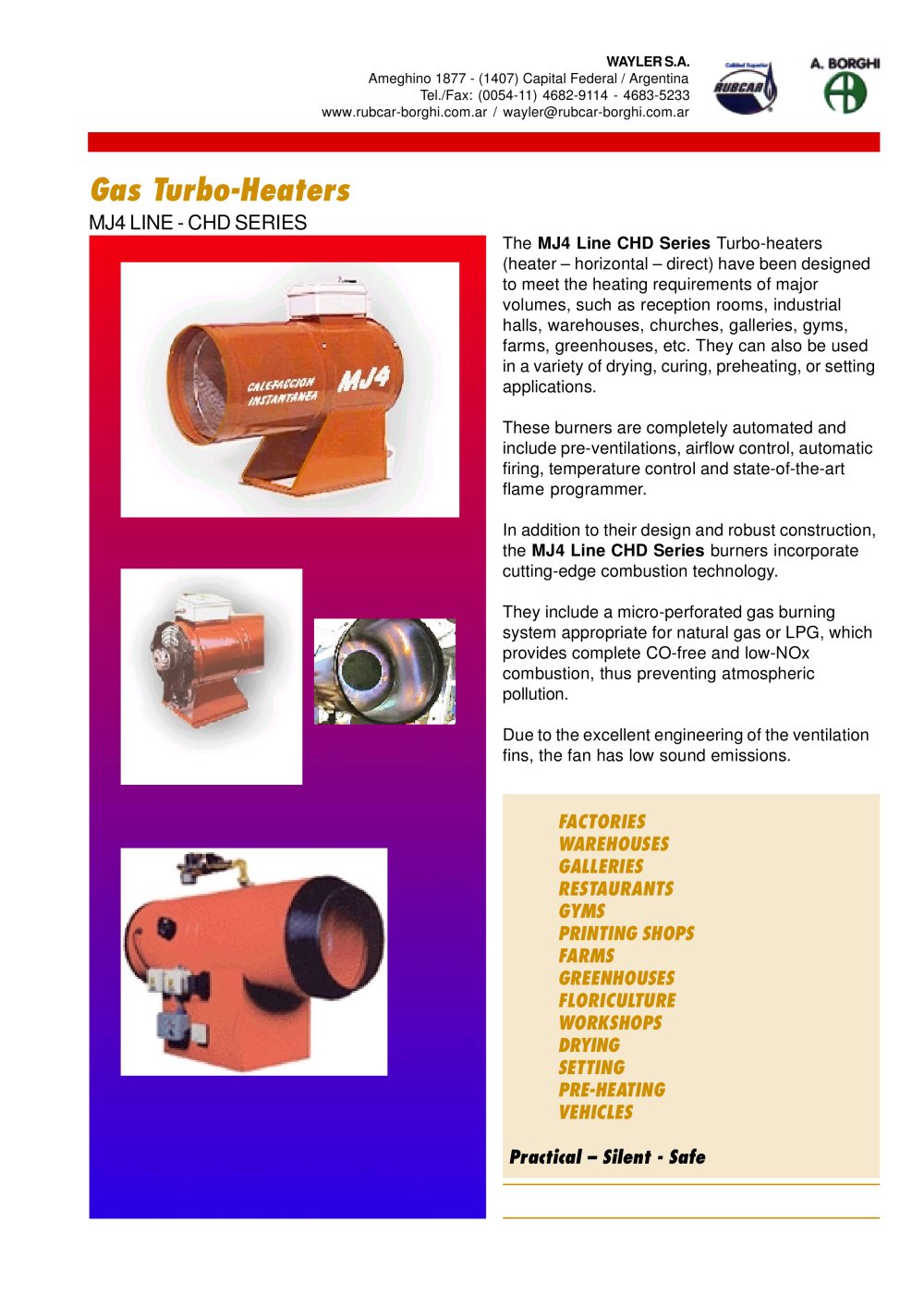

Overview: The MJ4 Line CHD Series Turbo-heaters are designed for heating large spaces such as reception rooms, industrial halls, warehouses, churches, galleries, gyms, farms, and greenhouses. They are also suitable for various drying, curing, preheating, or setting applications.

Specifications: These heaters are fully automated, featuring pre-ventilation, airflow control, automatic firing, temperature control, and a modern flame programmer. They utilize a micro-perforated gas burning system suitable for natural gas or LPG, ensuring complete CO-free and low-NOx combustion to minimize atmospheric pollution. The fan design ensures low sound emissions.

Models and Capacities: The series includes multiple models with varying capacities:

• CHD 20-8-14: 8,000 Kcal/H, 600 m3/h air volume, 0.10 HP motor, 1,400 r.p.m., 1/2” gas connection, dimensions A: 467, B: 240, C: 220, weight 11 KG.
• CHD 20-17-18: 17,000 Kcal/H, 1,000 m3/h air volume, 0.12 HP motor, 2,850 r.p.m., 1/2” gas connection, dimensions A: 467, B: 240, C: 220, weight 11 KG.
• CHD 25-20-14: 20,000 Kcal/H, 800 m3/h air volume, 0.10 HP motor, 1,400 r.p.m., 1/2” gas connection, dimensions A: 587, B: 400, C: 270, weight 19 KG.
• CHD 25-35-28: 35,000 Kcal/H, 1,700 m3/h air volume, 0.15 HP motor, 2,850 r.p.m., 1/2” gas connection, dimensions A: 587, B: 400, C: 270, weight 19 KG.
• CHD 30-37-14: 37,000 Kcal/H, 1,600 m3/h air volume, 0.20 HP motor, 1,400 r.p.m., 1/2” gas connection, dimensions A: 657, B: 440, C: 320, weight 27 KG.
• CHD 30-50-28: 50,000 Kcal/H, 3,600 m3/h air volume, 0.30 HP motor, 2,850 r.p.m., 1/2” gas connection, dimensions A: 657, B: 440, C: 320, weight 27 KG.
• CHD 40-40-14: 40,000 Kcal/H, 2,800 m3/h air volume, 0.25 HP motor, 1,400 r.p.m., 1/2” gas connection, dimensions A: 920, B: 540, C: 430, weight 35 KG.
• CHD 40-60-14: 60,000 Kcal/H, 4,600 m3/h air volume, 0.33 HP motor, 1,400 r.p.m., 1/2” gas connection, dimensions A: 920, B: 540, C: 430, weight 35 KG.
• CHD 50-80-14: 80,000 Kcal/H, 6,000 m3/h air volume, 0.50 HP motor, 1,400 r.p.m., 3/4” gas connection, dimensions A: 1200, B: 720, C: 520, weight 54 KG.
• CHD 50-150-14: 150,000 Kcal/H, 8,000 m3/h air volume, 0.50 HP motor, 1,400 r.p.m., 3/4” gas connection, dimensions A: 1200, B: 720, C: 520, weight 58 KG.
• CHD 60-180-14: 180,000 Kcal/H, 10,000 m3/h air volume, 0.75 HP motor, 1,400 r.p.m., 1” gas connection, dimensions A: 1300, B: 820, C: 600, weight 68 KG.

Key Features: The heaters are noted for their robust construction and advanced combustion technology, ensuring efficient and environmentally friendly operation.
