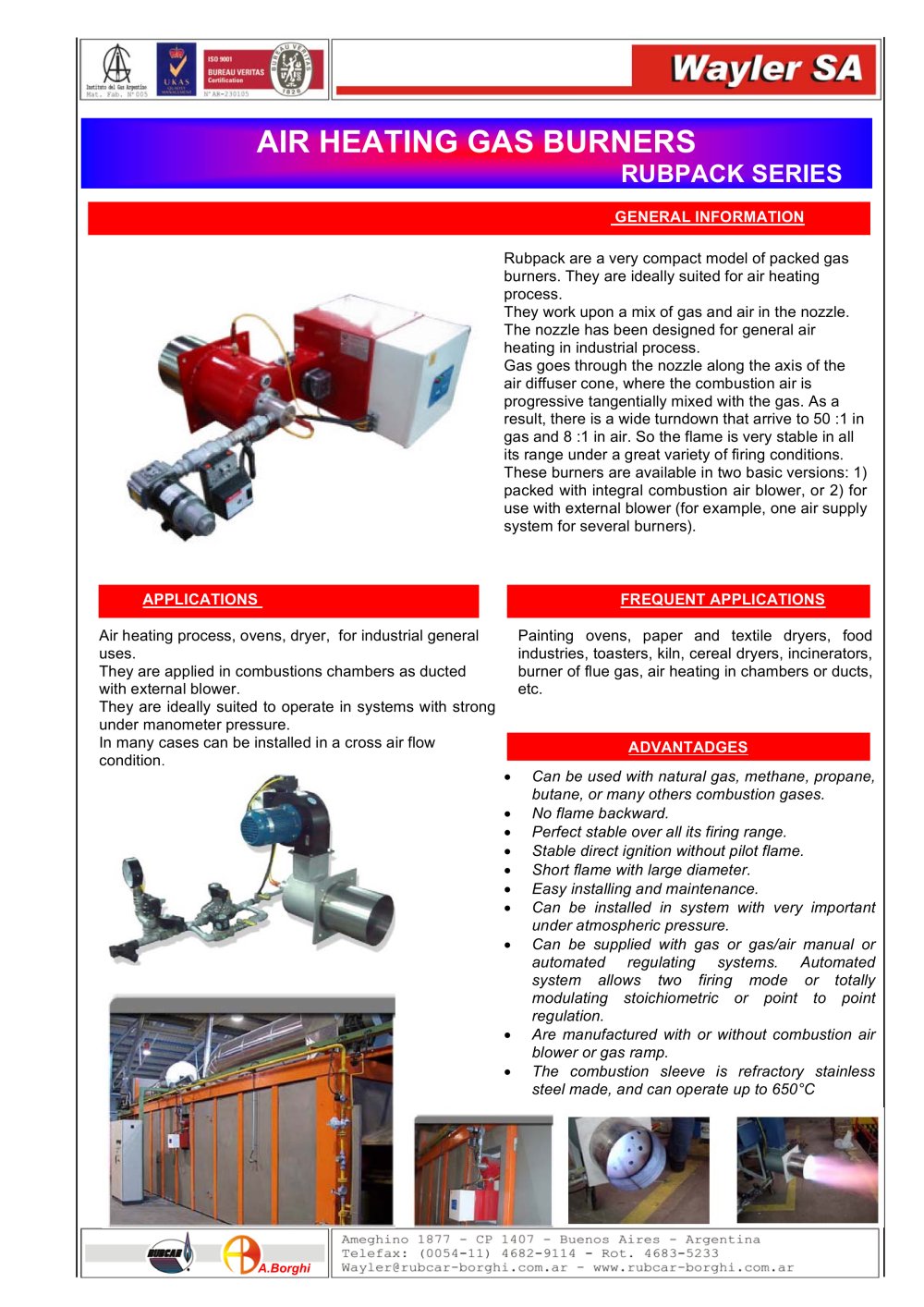

GENERAL INFORMATION Rubpack are a very compact model of packed gas burners. They are ideally suited for air heating process. They work upon a mix of gas and air in the nozzle. The nozzle has been designed for general air heating in industrial process. Gas goes through the nozzle along the axis of the air diffuser cone, where the combustion air is progressive tangentially mixed with the gas. As a result, there is a wide turndown that arrive to 50 :1 in gas and 8 :1 in air. So the flame is very stable in all its range under a great variety of firing conditions. These burners are available in two basic versions: 1) packed with integral combustion air blower, or 2) for use with external blower (for example, one air supply system for several burners). APPLICATIONS FREQUENT APPLICATIONS Can be used with natural gas, methane, propane, butane, or many others combustion gases. Air heating process, ovens, dryer, for industrial general uses. They are applied in combustions chambers as ducted with external blower. They are ideally suited to operate in systems with strong under manometer pressure. In many cases can be installed in a cross air flow condition Painting ovens, paper and textile dryers, food industries, toasters, kiln, cereal dryers, incinerators, burner of flue gas, air heating in chambers or ducts, etc. No flame backward. Perfect stable over all its firing range. Stable direct ignition without pilot flame. Short flame with large diameter. Easy installing and maintenance. Can be installed in system with very important under atmospheric pressure. ADVANTADGES > . Can be supplied with gas or gas/air manual or automated regulating systems. Automated system allows two firing mode or totally modulating stoichiometric or point to point regulation. Are manufactured with or without combustion air blower or gas ramp. The combustion sleeve is refractory stainless steel made, and can operate up to 650C > A.Borghi size="-2">

FT08-RBK General information Model RBK 170RBK 200RBK 300 Burner type Mix in nozzle Combustible Natural Gas or LPG Static pressure > (mbar) 20 or 160 for natural gas / 28 or 80 for LPG Minimum nominal > (Kcal/h) 50.000 160.000 350.000 550.000 > 1.000.000 2.000.000 Maximum nominal > (Kcal/h) 150.000 300.000 500.000 > 1.000.000 1.500.000 4.000.000 Motor 50Hz > (HP)2800 rpm 0.4 M 0.75 T 1 T 2 T 2 T 3 T Motor 60Hz > (HP)3400 rpm 0.4 M 1 T 1.5 T 3 T 3 T 4 T > * Capacity rated at atmospheric pressure * M = mono phase / T = three phases Direct ignition without pilot Large diameter and short flame...
