Flow-Max Filters

Product catalog summary

Overview
Flow-Max® Filters offer high-quality stainless steel filter housings and a variety of pleated cartridges designed for liquid filtration applications. These products are engineered to provide high performance while reducing filtration costs.

Specifications

Material: Stainless steel construction for durability.
Pressure Rating: Standard housings rated up to 150 psi, with options available for 300 psi.
Temperature: Rated for temperatures up to 250°F (121°C).
Gaskets & Seals: Standard Buna-N, with Viton, EDPM, and Teflon available.
Finish: Standard protective poly-coat over stainless steel, with electro-polishing available.
Cartridge Types: Designed to accept DOE cartridges, with adapters for 222 & 226 cartridges available.

Models and Features

Standard Multi-Cartridge Filter Housings: Heavy-duty stainless steel, rated for 150 psi and 250°F, accepting DOE cartridges with optional adapters.
Jumbo Cartridge Filter Housings: Single cartridge design for ease of use, rated for 150 psi, with washable and reusable cartridges.
Premium Series: Includes mounting legs and pressure gauges, rated for 150 psi and 250°F.

Performance and Options

Models available with various flow rates and cartridge sizes, ranging from 30 GPM to 1200 GPM.
Optional features include sanitary connections, electro-polishing for high purity water, and adapters for different cartridge types.

Spare Parts and Accessories

Various gaskets, clamps, and knobs available for maintenance and customization.
Electro-polishing and flange fittings offered for enhanced performance and installation flexibility.

Warranty
Flow-Max housings come with a limited one-year warranty from the date of installation, with optional electro-polishing for aggressive and high TDS water environments.

Catalog excerpts

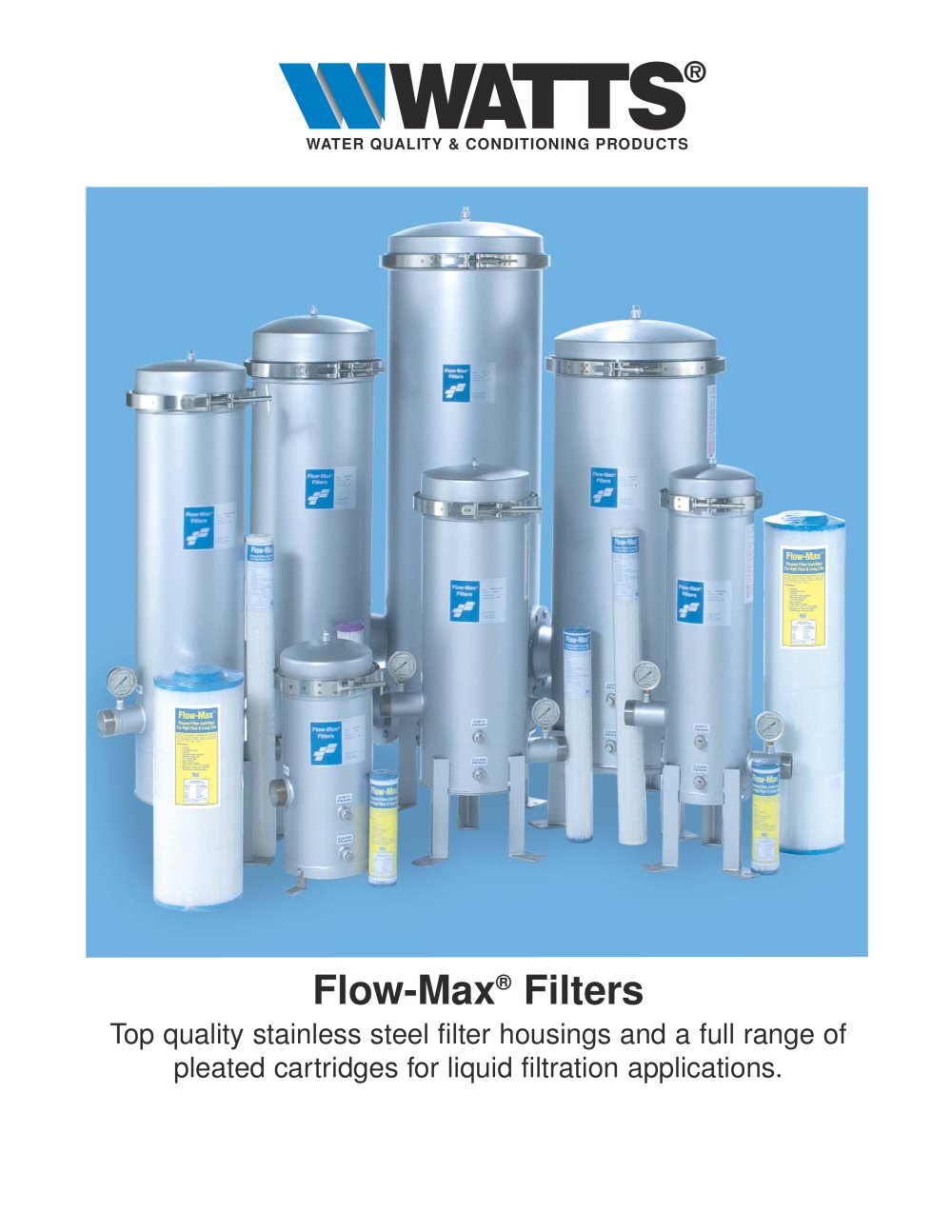

WATER QUALITY & CONDITIONING PRODUCTS Flow-Max > ή Filters > Top quality stainless steel filter housings and a full range ofpleated cartridges for liquid filtration applications. size="-2">

Open the catalog to page 1

Ε100% stainless steelfor durability.?All stainless steel construction.?Convenient bandclamp lid closure is standard for easy cartridge replacement.?Pipe fittings arereadily accessible for easy installation.?Adjustable top plateaccepts variable length cartridges for more options.?Two drains providedfor clean and dirty fluids.?Legs and mountingtabs are available. ?Knife edge seals are provided at both ends of all DOE cartridges for superior performance.?Rated for temperatures to 250F.(No plastic holding rods.)?Pressure rating to 150 psi.?Housings for pressures to 300psi are available.?Optional...

Open the catalog to page 2

Flow-Max pleated cartridges Flow-Max jumbo cartridge Mounting tabs Flange fittings with legs Cartridges adapters Electro-polishing > For 4 & 5 round models iffloor mounting is required. Standard on 12 and 22round models. Available by special order for 222 and 226 cartridges. For high purity water and increased resistance to corrosion. Gasket, Buna-N, 4 & 5FM8017-BHold down plate, 4 roundFM8110-4Gasket, Buna-N, 12FM12021-BHold down plate, 5 roundFM8110-5 Gasket, Buna-N, 22FM16021-BHold down plate, 12 roundFM12008 Gasket, Viton, 4 & 5FM8017-VHold down plate, 22 roundFM16008 Gasket, Viton, 12FM12021-VCenter...

Open the catalog to page 4
