carbon steel ball valve

carbon steel ball valve

Product catalog summary

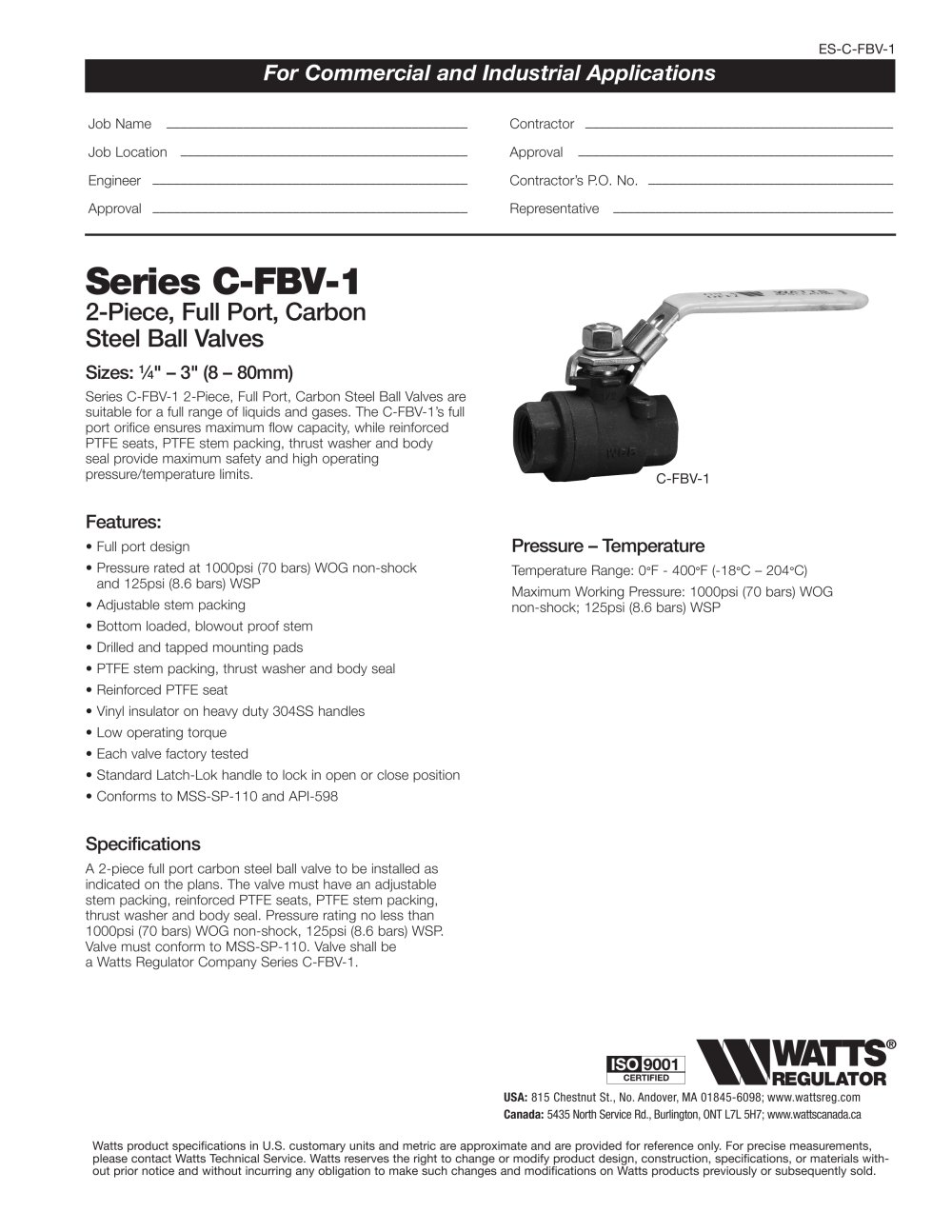

Overview: The document details the specifications and features of the Series C-FBV-1, a 2-piece, full port, carbon steel ball valve designed for commercial and industrial applications. These valves are suitable for a wide range of liquids and gases, offering maximum flow capacity and safety.

Specifications: The valve is available in sizes ranging from 1/4" to 3" (8mm to 80mm). It features a full port design, adjustable stem packing, and reinforced PTFE seats. The pressure rating is 1000psi (70 bars) WOG non-shock and 125psi (8.6 bars) WSP. The valve conforms to MSS-SP-110 and API-598 standards.

Features: Key features include a bottom-loaded, blowout-proof stem, drilled and tapped mounting pads, PTFE stem packing, thrust washer, body seal, and a vinyl insulator on heavy-duty 304SS handles. The valve operates with low torque and includes a standard Latch-Lok handle for secure open or closed positions. Each valve is factory tested for quality assurance.

Pressure-Temperature Ratings: The temperature range for operation is 0°F to 400°F (-18°C to 204°C). The maximum working pressure is 1000psi (70 bars) WOG non-shock and 125psi (8.6 bars) WSP.

Materials: The valve components are made from high-quality materials including carbon steel, AISI 304 stainless steel, and PTFE for various parts such as the handle, stem, body, and seals.

Dimensions and Weights: Detailed dimensions and weights are provided for each valve size, ensuring precise installation and compatibility with existing systems.

Conclusion: The Series C-FBV-1 ball valves are robust, reliable, and designed to meet rigorous industrial standards, making them suitable for a variety of applications requiring high flow capacity and safety.

Catalog excerpts

Pressure Temperature > SIZE (DN)CVTORQUE SIZE (DN)DIMENSIONSWEIGHT CC1C2C3C4EHCenter to HandleStem TopBottom of Stem FlatMounting Pad to Stem TopStem Flat HeightCenter to EndRadius to Handle in.mmin.mmin.mmin.mmin.mmin.mmin.mmin.mm 1 ֢D > 4 81 > 3 ⁄ > 4 441 > 9 ⁄ > 16 40125 > 7 ⁄ > 8 22 > 9 ⁄ > 16 141 > 1 ⁄ > 16 273 > 15 ⁄ > 16 100 > 3 ⁄ > 8 101 > 3 ⁄ > 4 441 > 9 ⁄ > 16 40125 > 7 ⁄ > 8 22 > 9 ⁄ > 16 141 > 1 ⁄ > 16 273 > 15 ⁄ > 16 100 > 1 ⁄ > 2 152511 > 3 ⁄ > 4 441 > 3 ⁄ > 16 301 > 1 ⁄ > 8 29 > 9 ⁄ > 16 141 > 3 ⁄ > 16 304 > 1 ⁄ > 2 114 > 3 ⁄ > 4 202512511 > 3 ⁄ > 8 351 > 1 ⁄ > 8 29 > 9 ⁄ > 16...
