Bottom-Entry Pressure Gauges

Bottom-Entry Pressure Gauges

Product catalog summary

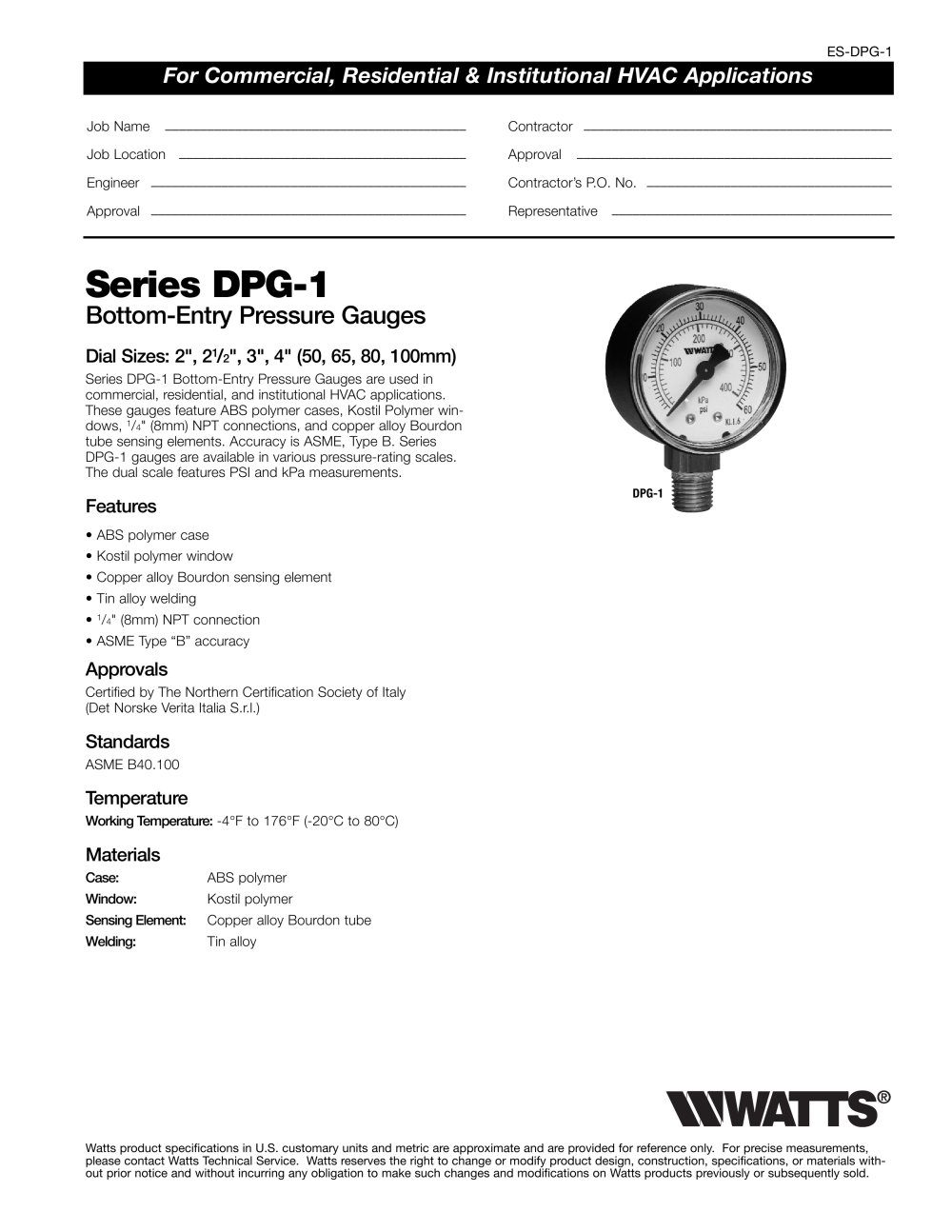

Overview: The Series DPG-1 Bottom-Entry Pressure Gauges are designed for use in commercial, residential, and institutional HVAC applications. They are available in dial sizes of 2", 2.5", 3", and 4" (50, 65, 80, 100mm) and feature dual scale measurements in PSI and kPa.

Specifications:

Case Material: ABS polymer
Window Material: Kostil polymer
Sensing Element: Copper alloy Bourdon tube
Welding: Tin alloy
Connection: 1/4" (8mm) NPT
Accuracy: ASME Type B

Approvals and Standards: Certified by The Northern Certification Society of Italy (Det Norske Verita Italia S.r.l.) and compliant with ASME B40.100 standards.

Temperature Range: The working temperature range is from -4°F to 176°F (-20°C to 80°C).

Applications: Suitable for commercial, residential, and institutional HVAC systems.

Model Variants and Pressure Ratings: The gauges are available in various pressure ratings from 0-15 psi (103 kPa) to 0-1000 psi (6895 kPa), with corresponding dimensions and weights provided for each model size.

Dimensions and Weights: Detailed dimensions and weights are provided for each model variant, ensuring compatibility with specific installation requirements.
