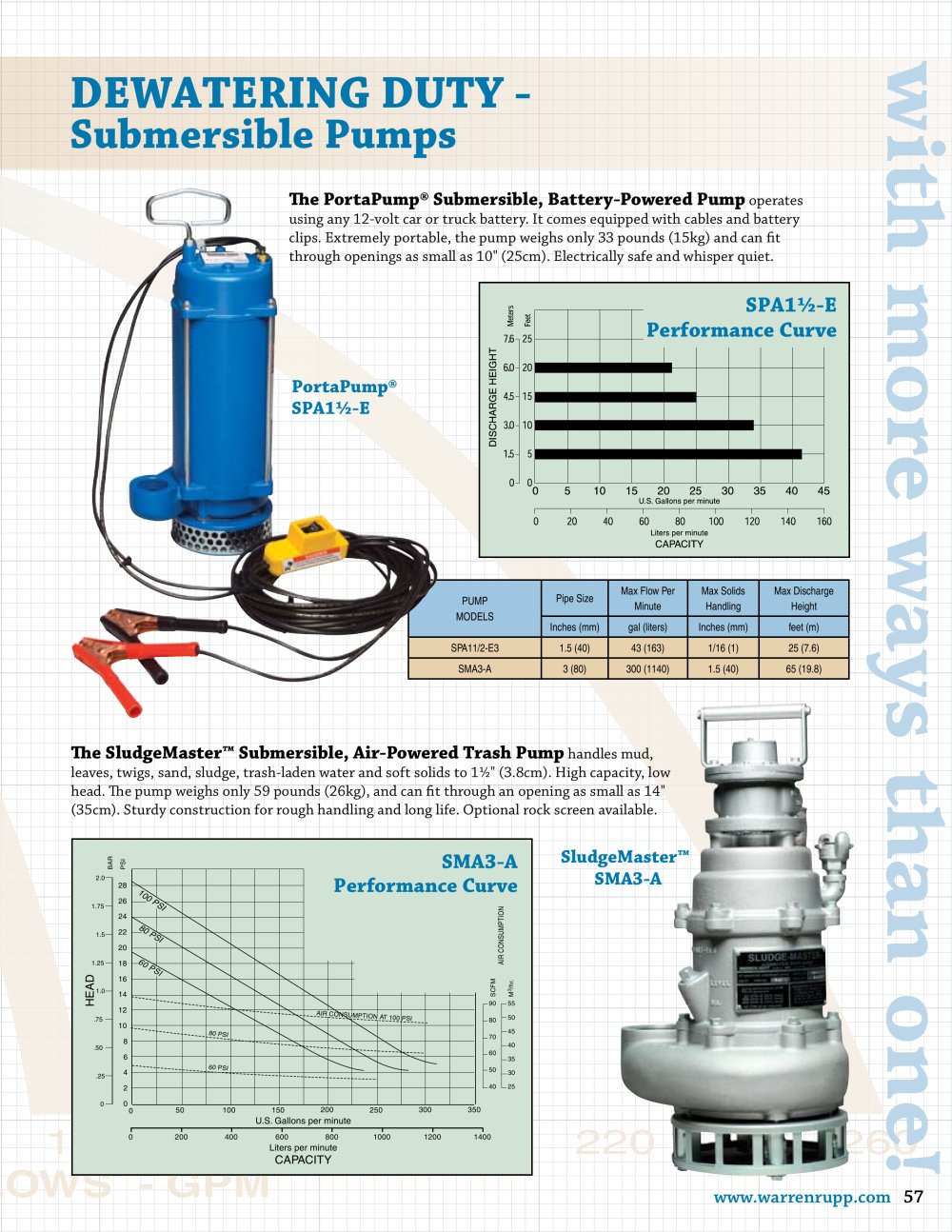

Pump Models Overview
The document provides specifications for various pump models, focusing on their pipe size, maximum flow per minute, maximum solids handling, and maximum discharge height. Key models include the SPA11/2-E3 and SMA3-A.

Specifications

SPA11/2-E3: Pipe size of 1.5 inches (40 mm), maximum flow of 43 gallons (163 liters) per minute, handles solids up to 1/16 inch (1 mm), and a discharge height of 25 feet (7.6 meters).
SMA3-A: Pipe size of 3 inches (80 mm), maximum flow of 300 gallons (1140 liters) per minute, handles solids up to 1.5 inches (40 mm), and a discharge height of 65 feet (19.8 meters).

PortaPump® Submersible, Battery-Powered Pump

Operates with any 12-volt car or truck battery.
Equipped with cables and battery clips.
Weighs 33 pounds (15 kg) and fits through openings as small as 10 inches (25 cm).
Electrically safe and quiet operation.

SludgeMaster™ Submersible, Air-Powered Trash Pump

Handles mud, leaves, twigs, sand, sludge, and trash-laden water.
Handles soft solids up to 1.5 inches (3.8 cm).
Weighs 59 pounds (26 kg) and fits through openings as small as 14 inches (35 cm).
Sturdy construction for rough handling and long life.
Optional rock screen available.

Performance Curves

The performance curve for the SMA3-A model is provided, showing air consumption and capacity at various pressures (60, 80, and 100 PSI).
Capacity is measured in liters per minute and U.S. gallons per minute, with head measurements included.
