Standard Duty Metallic Pumps
1 / 2 PagesView full catalog
Standard Duty Metallic Pumps
Product catalog summary
Overview: The document provides technical specifications for Standard Duty Metallic Pumps, which are suitable for intermittent or on-demand use with moderately abrasive fluids and suspended solids. These pumps are constructed from materials such as Aluminum, Cast Iron, Stainless Steel, and Alloy C, with options for TPE and PTFE diaphragms and check valves.
Specifications: The pumps are available in various models, each with specific dimensions, connection styles, and performance metrics. Key specifications include pipe size, displacement per stroke, maximum flow per minute, maximum solids handling, and maximum discharge pressure. All models are designed to handle a maximum discharge pressure of 125 psi (8.6 bar).
Model Details:
- E02: Smallest model with a 1/4" NPT connection, suitable for low flow applications.
- S05: Available in Aluminum (AL) and Stainless Steel (SS), with a 1" MNPT connection, offering moderate flow rates.
- S1F: Available in Aluminum/Cast Iron (AL/CI) and Stainless Steel (SS), with a 1" NPT connection, designed for higher flow rates.
- S15: Available in AL/CI and SS, with a 1½" NPT connection, suitable for larger flow requirements.
- S20: Available in AL/CI and SS, with a 2" NPT connection, designed for high flow applications.
- S30: Largest model available in AL/CI and SS, with a 3" NPT connection, capable of handling the highest flow rates.
Applications: These pumps are used in industrial waste treatment operations and exterior sump pumping requirements, demonstrating versatility in handling various industrial fluids and conditions.
Dimensional Details: All dimensions are provided with a tolerance of +/- 1/8 inch (3 mm), ensuring precision in installation and operation.
See more
Catalog excerpts

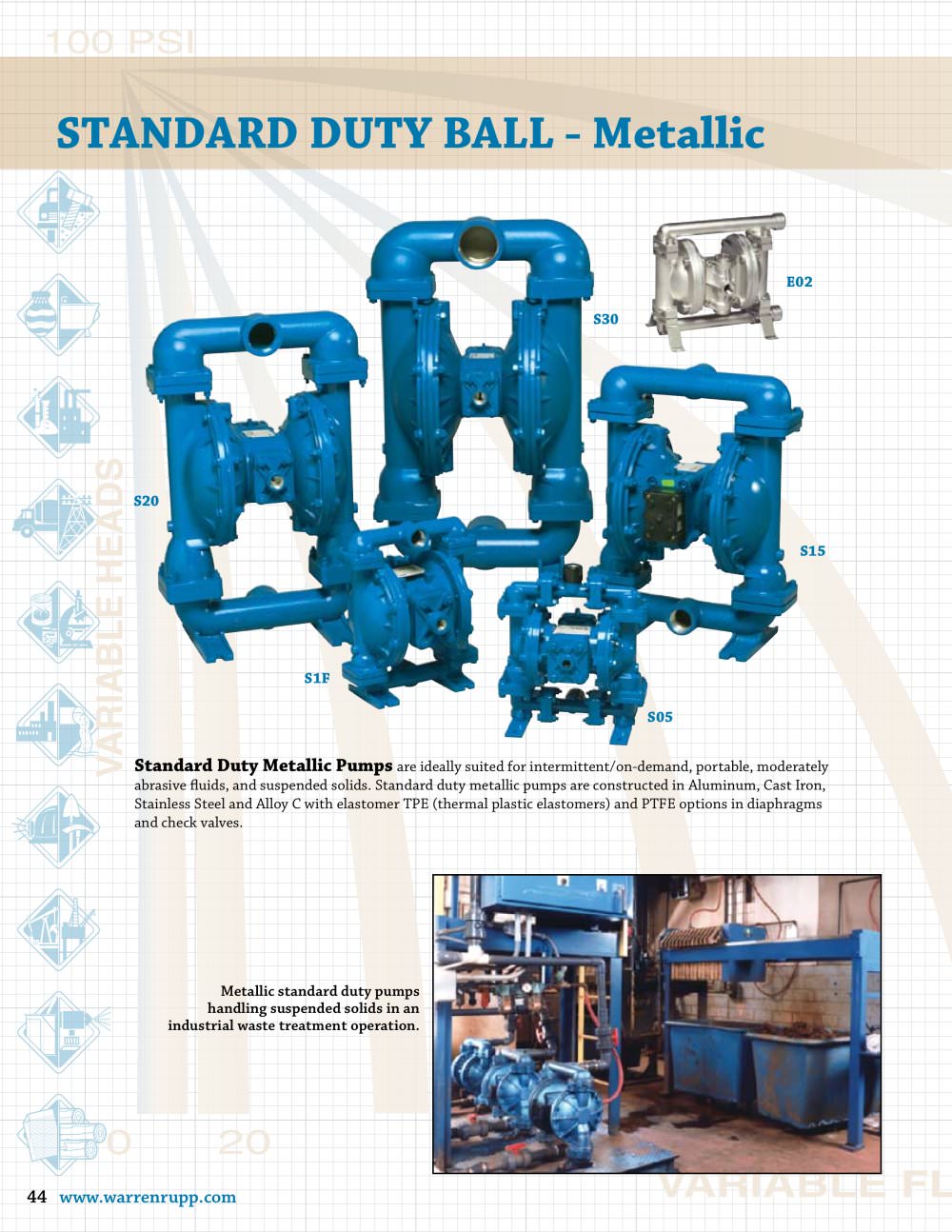

are ideally suited for intermittent/on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty metallic pumps are constructed in Aluminum, Cast Iron, Stainless Steel and Alloy C with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves. Metallic standard duty pumps handling suspended solids in an industrial waste treatment operation. >
