Natural Gas Operated Pumps

Product catalog summary

Pump Applications and Specifications

1. Pump Applications:

G1F Pump: Used for salt water transfer/disposal and hot glycol circulation as a heat trace for well site applications.
GH2 Pump: Utilized for wellbore circulation of heated liquid to maintain production tubing warmth and for produced water bypass of compressor for reinjection into flowline.
G05 or G1F Pump: Suitable for tank bottoms circulation and utility service for spill clean-up and general fluid transfer.

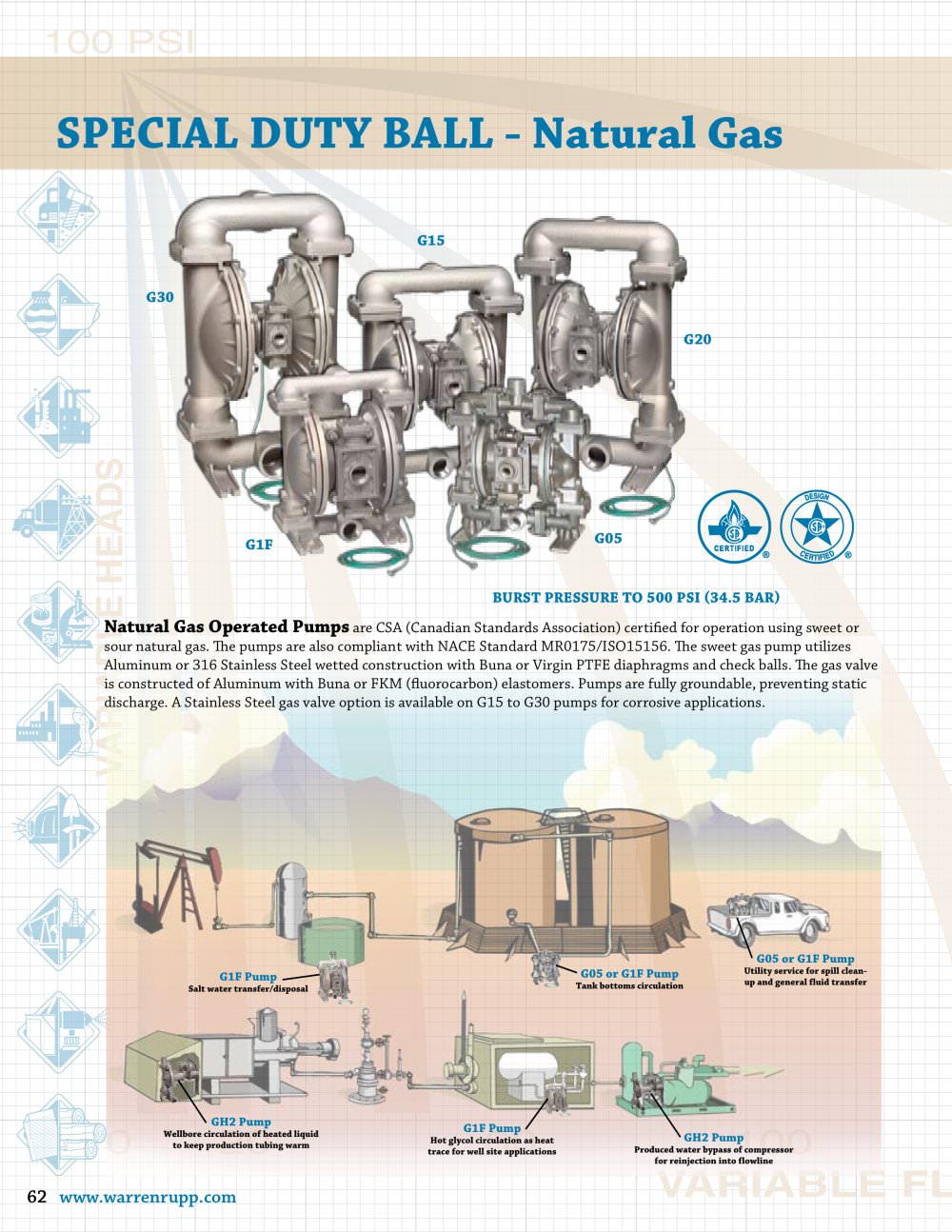

2. Special Duty Ball - Natural Gas:

Natural Gas Operated Pumps are CSA certified for operation with sweet or sour natural gas and comply with NACE Standard MR0175/ISO15156.
Sweet gas pumps use Aluminum or 316 Stainless Steel wetted construction with Buna or Virgin PTFE diaphragms and check balls.
The gas valve is made of Aluminum with Buna or FKM elastomers, with a Stainless Steel option available for corrosive applications.

3. Pump Models and Specifications:

GH2-M: Features a burst pressure of up to 500 PSI (34.5 Bar) and a maximum discharge pressure of 250 PSI (17.2 Bar). It has a displacement per stroke of 0.3 gallons (1.1 liters) and a maximum flow rate of 62 gallons (235 liters) per minute.
G05: Has a displacement per stroke of 0.026 gallons (0.098 liters) and a maximum discharge pressure of 125 PSI (8.6 Bar).
G1F: Offers a displacement per stroke of 0.11 gallons (0.42 liters) and a maximum discharge pressure of 125 PSI (8.6 Bar).
G15: Provides a displacement per stroke of 0.41 gallons (4.55 liters) and a maximum discharge pressure of 125 PSI (8.6 Bar).
G20: Features a displacement per stroke of 0.42 gallons (1.59 liters) and a maximum discharge pressure of 125 PSI (8.6 Bar).
G30: Has a displacement per stroke of 0.94 gallons (3.56 liters) and a maximum discharge pressure of 125 PSI (8.6 Bar).

4. Performance Curve:

The GH2-M model's performance is based on water at ambient temperature, with varying capacities and air consumption rates depending on the PSI air inlet pressure.

Catalog excerpts

Utility service for spill clean- Salt water transfer/disposal Tank bottoms circulation up and general fluid transfer > Wellbore circulation of heated liquid > to keep production tubing warm Hot glycol circulation as heat > trace for well site applications Produced water bypass of compressor for reinjection into flowline >

Open the catalog to page 1

A B C D E Pipe Displacement Max Max Max PUMP Height Width Depth Bottom of Base to Center Line of: Connection Size Per Stroke Flow Solids Discharge MODELS Suction Discharge Style Per Minute Handling Pressure inches (mm) inches (mm) inches (mm) inches (mm) inches (mm) inch (mm) gal (liter) gal (liter) inch (mm) psi (bar) GH2-M 25 (635) 25 13/16 (656) 11 3/4 (298) 2 3/16 (56) 25 (635) 2" NPT 2 (50) .30 (1.1) 62 (235) .25 (6) 250 (17.2) All Dimensions + / - 1/8 (3) >

Open the catalog to page 2
