WARREN RUPP
Mine/Construction Pumps

Mine/Construction Pumps

Product catalog summary

Overview: The document provides detailed information on rugged mining duty pumps designed for both underground and above-ground applications. It highlights the extensive experience of over 40 years in underground pumping solutions, emphasizing cost-effectiveness and reliability.

Applications: The pumps are suitable for various mining operations including drift dewatering, muck handling, drillers mud, fuel transfer, and managing high/low pH levels underground.

Performance Curves: The document includes performance curves for different pump models (1½", 2", 3") showing capacity in liters and gallons per minute against air inlet pressure (20-100 PSI). These curves help in selecting the appropriate pump size for specific flow and head requirements.

Key Features:

ESADS+Plus® system for guaranteed performance and easy maintenance.
Bolted construction for safety and reliability.
Durable, corrosion-resistant diaphragm connecting rods.
Heavy-duty wear packages to extend Mean Time Between Failures (MTBF).
Various materials available for different applications, including metallic and non-metallic options.

Pump Configurations: The document outlines different configurations such as heavy-duty ball and flap valves, standard duty, and containment duty pumps. It emphasizes the importance of proper sizing to reduce costs and improve efficiency.

Special Features:

Weighted and hinged flap check valves for handling solids.
Self-priming capabilities up to 24 feet of water.
Modular design for easy on-site reconfiguration.
UL and ATEX compliance for safety in handling flammable liquids.

Additional Products: The document mentions other products like the PortaPump® and SludgeMaster™ for specific dewatering and sludge handling needs.

Contact Information: Warren Rupp, Inc. provides contact details for further inquiries and support.

Catalog excerpts

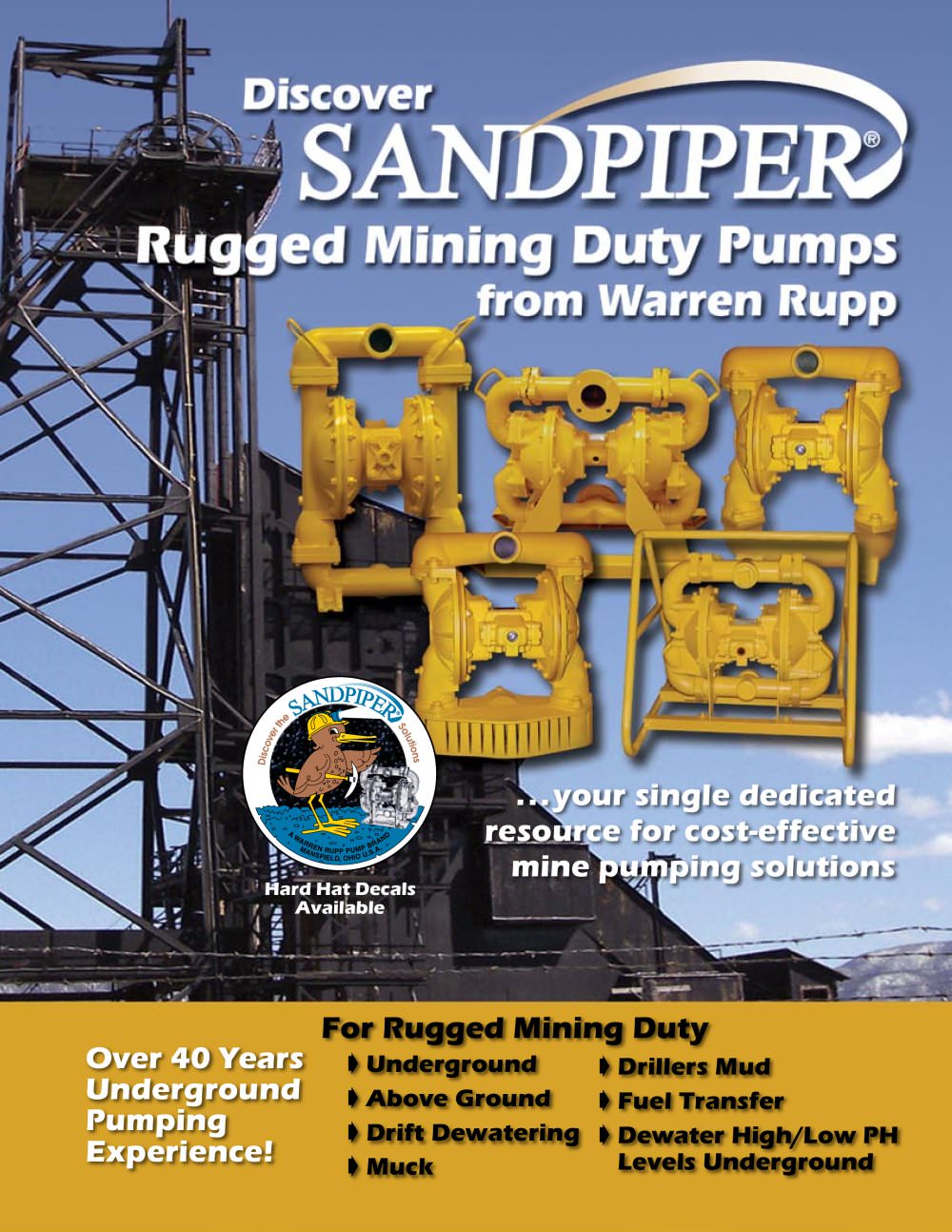

Hard Hat Decals Available Underground ť Drillers Mud Above Ground ť Fuel Transfer Drift Dewatering ť Dewater High/Low PH Levels Underground Muck >

Open the catalog to page 1

commonality of parts results in . easier maintenance, reduced service training time, and lower parts inventories For Below Ground Applications such as drift dewatering, mine face dewatering, sump transfer, and nuisance dewatering, the SANDPIPER pumpՒs: The unique, common air center section design found on both the SANDPIPER For Above Ground Applications > MSA2 Flap Valve Pump and MSB2 Ball Valve Pump allows easy on-site reconfiguration of either pump to meet above or below ground pumping requirements. such as dewatering, sump transfer, chemical or wastewater treatment, acid bath and mined product...

Open the catalog to page 4

Model MSA2-A Common Air Center Section Kit 475.246.XXX.* > Mining Service Duty Flap Valve Pump Model MSA2-A with Optional Roll Cage BaseKit 474.042.000. Model MSA2-A with > Optional Suction Stub & Strainer Kit 474.039.000. Model MSA2-B Pump > pumping applications at the lowest possible cost of ownership. Reconditioning Wet End Kits: > MSA2 Flap Valve Pump features a bottom discharge design for MSB2 > for heavy solids concentration to eliminate broken or bent connecting rods and premature diaphragm failures. 476.042.354. - Santoprene 476.042.360W. - Buna 476.042.363W. - Viton 476.042.364W. - EPDM...

Open the catalog to page 5

KYNARܮ is a registered trademark of Elf Atochem North America, Inc. size="-1">

Open the catalog to page 7

800 North Ma i n Street Mansf i nfo.warrenrupp@ i eld, OH 44901-1568 USA 419-524-8388 Fax: 419-522-7867 i dexcorp.com > ծSANDPIPER and ESADS+Plus are reg i stered trademarks of Warren Rupp, Inc. Copyr i ght 2006. All r i ghts reserved.SPMINE-REV1106 size="-1">

Open the catalog to page 8
