WARREN RUPP
Heavy Duty Ball Pumps

Heavy Duty Ball Pumps

Product catalog summary

Overview: The document provides detailed specifications for SANDPIPER® Heavy Duty Ball Valve Pumps (HDB), which are suitable for handling fluids ranging from thin to highly viscous, including those with small solids. These pumps offer excellent suction lift capabilities and variable porting options, including side, top, bottom, and dual configurations. They are constructed with thick walls using materials such as Sand Casted Aluminum, Cast Iron, Stainless Steel, or Alloy C, and feature elastomer, TPE, and PTFE options for diaphragms and check valves.

Specifications: The document lists various models of HDB pumps, detailing their dimensions, connection styles, pipe sizes, displacement per stroke, maximum flow per minute, maximum solids handling, and maximum discharge pressure. For example, the SB1-A/SB25A model has a 1" NPT/BSP connection, a displacement of 0.09 gallons per stroke, and a maximum flow of 42 gallons per minute, with a maximum discharge pressure of 125 PSI.

Model Variations: The document includes several models such as HDB1½-A, HDB2-A, HDB3-A, and HDB4-A, each available in top and bottom ported configurations. The models vary in size, flow capacity, and other specifications to suit different industrial applications.

Dimensional Details: The document provides detailed dimensional information for each pump model, including height, width, depth, and the distance from the bottom of the base to the center line of suction and discharge ports. All dimensions are given with a tolerance of +/- 1/8 inch.

Key Features: The pumps are noted for their robust construction and adaptability to various industrial needs, with options for extended wear packages to enhance durability.

Catalog excerpts

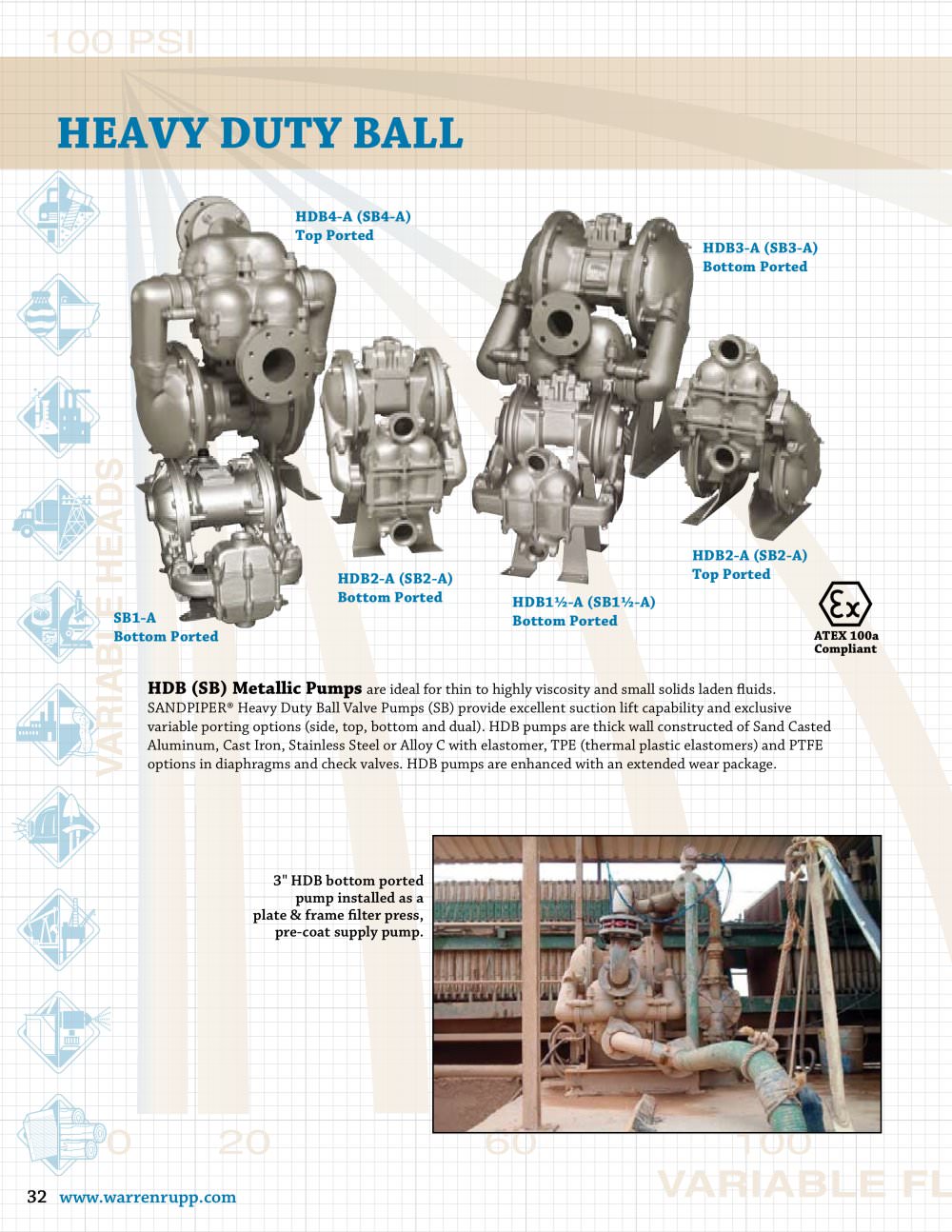

are ideal for thin to highly viscosity and small solids laden fluids. SANDPIPER Heavy Duty Ball Valve Pumps (SB) provide excellent suction lift capability and exclusive variable porting options (side, top, bottom and dual). HDB pumps are thick wall constructed of Sand Casted Aluminum, Cast Iron, Stainless Steel or Alloy C with elastomer, TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves. HDB pumps are enhanced with an extended wear package. 3" HDB bottom ported pump installed as a plate & frame filter press, pre-coat supply pump. >

Open the catalog to page 1
