Overview: The document provides technical specifications and performance details for the Blagdon B15 Air Operated Double Diaphragm Pump, specifically the stainless steel model.

Specifications:

Model Code: B15.01.SA.BB.ETS-LF
Wetted Components: 316L Stainless Steel
Non-Wetted Components: Aluminium, 316L Stainless Steel
Valve Type: Ball
Suction Orientation: Bottom
Valve Seats: 316L Stainless Steel
Valve Balls: Options include Buna-N, 316 Stainless Steel, Delrin, PTFE, EPDM, Viton, Neoprene
Diaphragms: Options include Buna-N, Polyurethane, EPDM, Santoprene, Polyester, PTFE, Neoprene, Viton, One Piece PTFE

Performance:

Fluid Connections: 1/2” BSP(F)
Capacity: 0 - 58 Litres/Minute (0 - 12.7 Gallons/Minute)
Max Solids: 2 MM (5/64”)
Max Discharge Head: 88 Meters (289 ft)
Displacement/Stroke: 0.075 Litres (0.02 UK Gallons)
Max Working Pressure: 8.6 Bar (125 psi)
Air Inlet: 1/4” BSP (F)
Temperature Limits: Determined by Elastomers
Pump Weights: SA: 8.7 Kg, SS: 12.2 Kg

Material Operating Temperatures:

Buna-N: Max 176°F (80°C), Min -18°F (-28°C), Optimum 50° to 140°F (10° to 60°C)
EPDM: Max 212°F (100°C), Min -11°F (-24°C), Optimum 50° to 212°F (10° to 100°C)
Neoprene: Max 212°F (100°C), Min -4°F (-20°C), Optimum 50° to 130°F (10° to 54°C)
Santoprene: Max 212°F (100°C), Min -10°F (-23°C), Optimum 50° to 212°F (10° to 100°C)
PTFE: Max 356°F (180°C), Min 32°F (0°C), Optimum 50° to 212°F (10° to 100°C)
Viton: Max 356°F (180°C), Min 0°F (-18°C), Optimum 75° to 212°F (24° to 100°C)

Important Notes: The pump should be used in compliance with the Safety, Health & Welfare at Work Act 2005. Terms and conditions of sale are available upon request from IDEX Pump Technologies, Ireland.

Contact Information: IDEX Pump Technologies (Ireland) Ltd., Shannon, Co Clare, Ireland. Tel: +353 61 471933, Fax: +353 61 475046, Website: www.blagdonpump.com, Email: [email protected]

Catalog excerpts

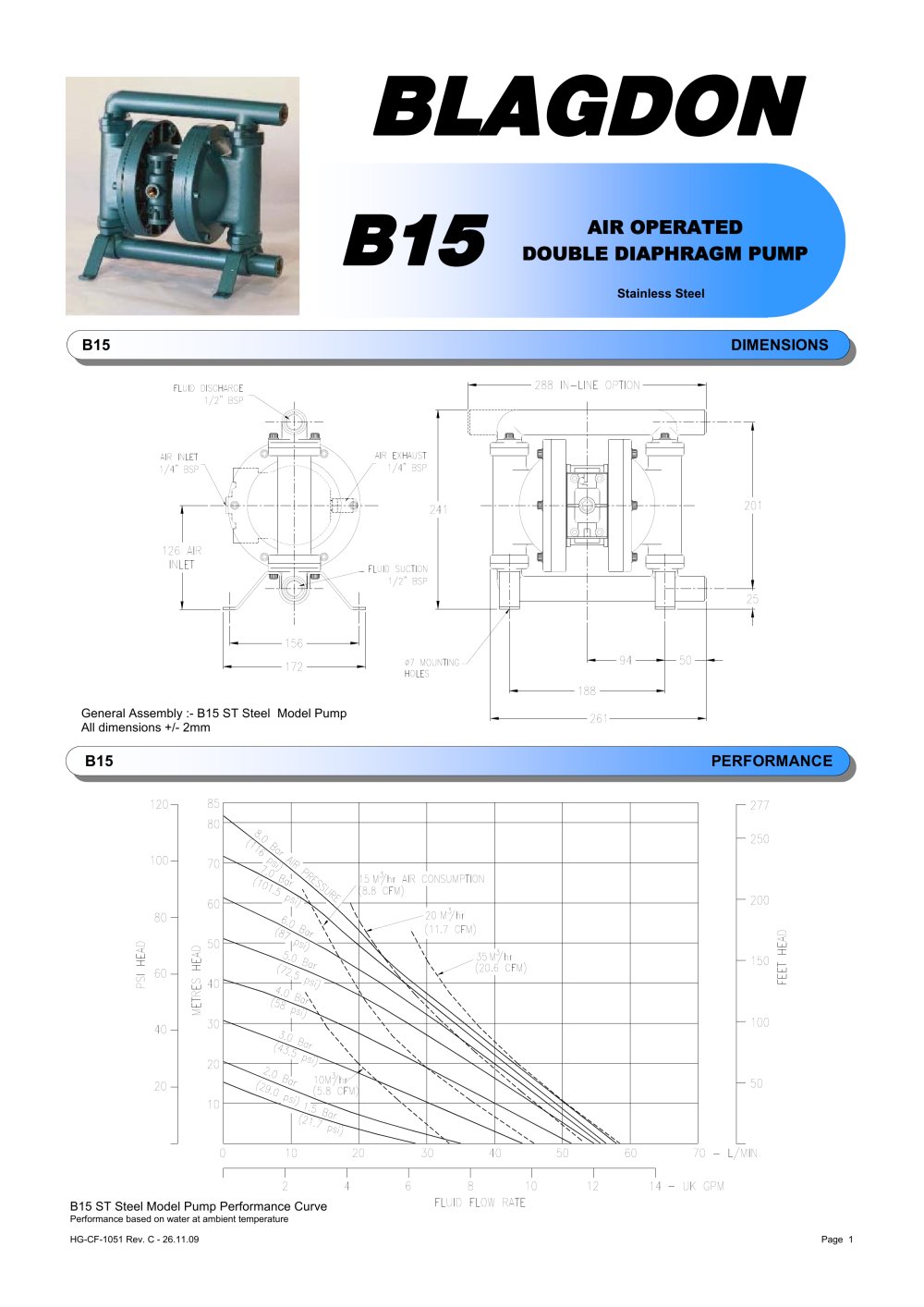

1051-C - B15 ST.pub table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:5.00pt "Impact", sans-serif; } .font3 { font:6.00pt "Impact", sans-serif; } .font4 { font:4.00pt "Verdana", sans-serif; } .font5 { font:8.00pt "Verdana", sans-serif; } .font6 { font:10.00pt "Verdana", sans-serif; } .font7 { font:14.00pt "Verdana", sans-serif; } .font8 { font:51.00pt "Verdana", sans-serif; } BLAGDON AIROPERATEDDOUBLEDIAPHRAGMPUMP Stainless Steel B15 DIMENSIONS FLUID DISCHARGE -UNE OPTION fsiiiח -© X AIR EXHA NLET _ RLUID 7T r - 07 MOU! HOLES General Assembly :- B15 ST Steel Model Pump All dimensions +/- 2mm B15 PERFORMANCE HG-CF-1051 Rev. C - 26.11.09 Page 1
