B15_PTFE

Product catalog summary

Performance Overview
The B1500 PTFE Pump Performance Curve is based on water at ambient temperature. The pump is an air-operated double diaphragm pump from the B15 PTFE Series.

Specifications

Operating Temperature Limitations: The pump materials have specific temperature ranges for optimal performance. For example, PTFE operates between 32°F (0°C) and 356°F (180°C), while Viton® operates between 0°F (-18°C) and 356°F (180°C).
Materials: The pump uses various materials such as Buna-n, EPDM, Neoprene, Santoprene®, PTFE, and Viton®, each with distinct chemical resistances and temperature tolerances.

Pump Code and Components

Valve Seats, Balls, and Diaphragms: Made from PTFE, with options for high-temperature PTFE/Viton®.
Wetted and Non-Wetted Components: Options include PTFE, conductive PTFE, and polyethylene (HDPE).
Valve Type: Ball type with bottom suction orientation.

Design and Capacity

Fluid Connections: 1/2” ANSI 150 Flange.
Capacity: 0 - 48 Litres/Minute (0 - 10.5 Gallons/Minute).
Max Solids: 2 MM (5/64”).
Max Discharge Head: 70 Meters (230 ft).
Displacement/Stroke: 0.075 Litres (0.02 UK Gallons).

Operational Limits

Max Working Pressure: 7.0 Bar (100 psi).
Air Inlet: 1/4” BSP (F).
Temperature Limits: Up to 100°C.
Pump Weights: PTFE & Conductive PTFE T5: 12.0 Kg.

Important Notes
This pump should be used in accordance with the Health and Safety at Work Act 1974. Terms and conditions of sale are available upon request.

Catalog excerpts

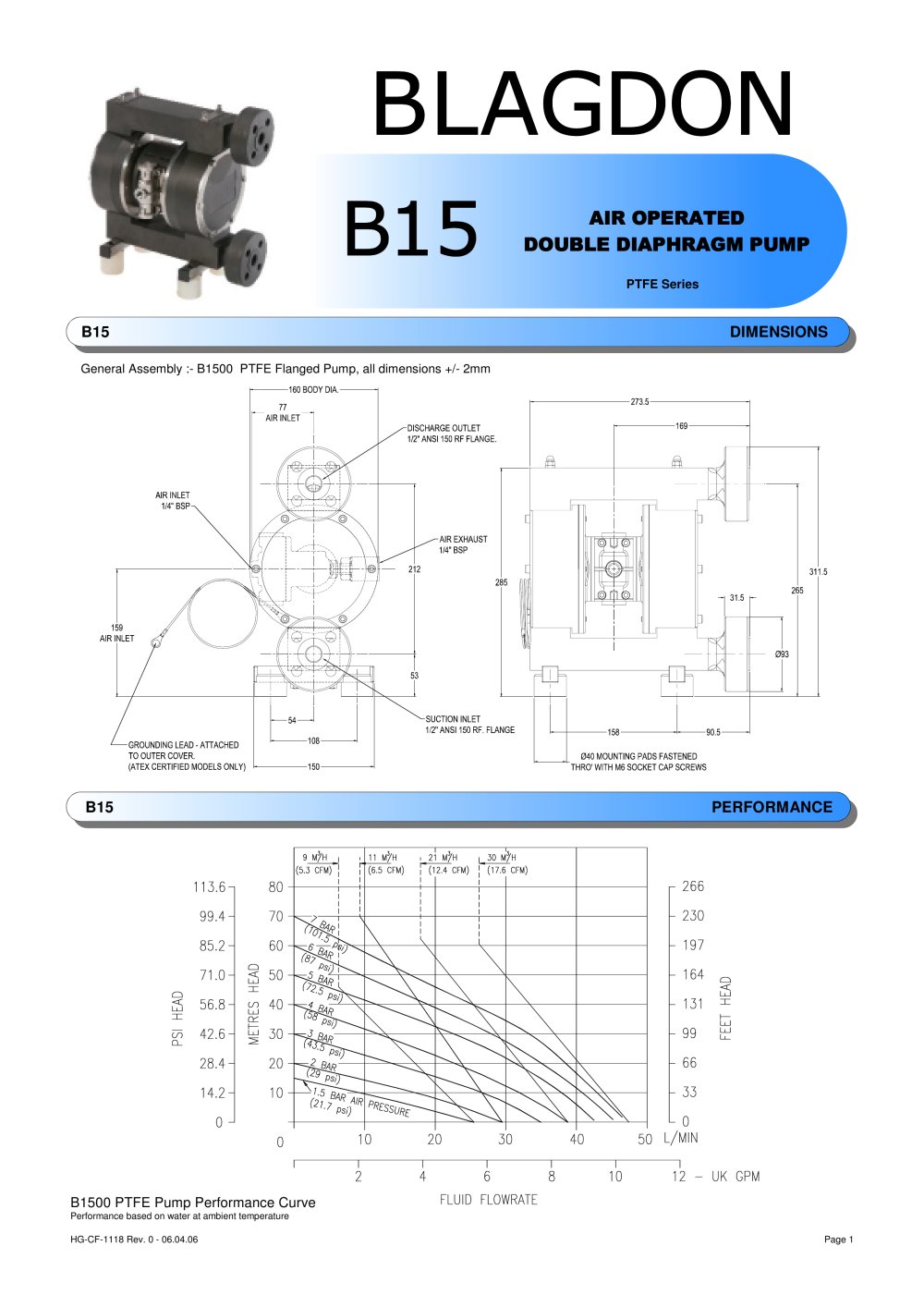

1130B - B06 Metallic FDA table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:22.45pt "Arial", sans-serif; } .font3 { font:12.00pt "Arial Black", sans-serif; } .font4 { font:8.00pt "Verdana", sans-serif; } .font5 { font:36.00pt "Verdana", sans-serif; } .font6 { font:45.00pt "Verdana", sans-serif; } BLAGDON B15 AIR OPERATED DOUBLE DIAPHRAGM PUMP PTFE Sries DIMENSIONS General Assembly :- B1500 PTFE Flanged Pump, all dimensions +/- 2mm -160BODYDIA- -GROUNDING LEAD - ATTACHED TOOUTERCOVER. (ATEX CERTIFIED MODELS ONLY) 040 MOUNTING PADS FASTENED THRO' WITH M6 SOCKET CAP SCREWS c B15 PERFORMANCE HG-CF-1118 Rev. 0 - 06.04.06 Page 1
