The Blagdon Air Operated Double Diaphragm Pump B10 features a maximum delivery capacity of 26.5 liters per minute (5.8 gallons per minute) and can handle solid particles up to 1.5 mm in size. It has a maximum discharge head of 70 meters (230 feet) and a displacement per stroke of 0.034 liters (0.007 gallons U.K.). The pump operates with a maximum working pressure of 6.9 bar (100 psi) and has a shipping weight of 1.4 kg (3.0 lb). The air inlet is 1/4” BSP(F) and the fluid inlet/outlet is 3/8” BSP(F).

Performance
The pump's performance curve is based on water at ambient temperature. It is recommended to operate within the specified area for optimal performance. The pump discharge is on the same side as the exhaust, and preferred mounting arrangements include inverted or side mounting to ensure 100% venting.

Materials and Temperature Limits
The pump is constructed from materials such as Santoprene®, PTFE, and Polypropylene, each with specific temperature limitations. Santoprene® can operate between -10°F to 212°F (-23°C to 100°C), PTFE between 32°F to 356°F (0°C to 180°C), and Polypropylene between -40°F to 158°F (-40°C to 70°C).

Technical Data
The pump code is B10, with options for valve seats and stems in Polypropylene or PVDF (Kynar), and diaphragms in Santoprene or PTFE. Wetted components are available in Polypropylene or PVDF, while non-wetted components are made of Polypropylene. The typical order code is B10.01.PP.RPP-418.

Additional Information
The pump should be used in accordance with the Health and Safety at Work Act 1974. All business is conducted subject to Blagdon Pump's Terms and Conditions of Sale, available upon request. Accessories included are an exhaust air silencer, and the pump has a dB(A) rating of 78 dB(A).

Catalog excerpts

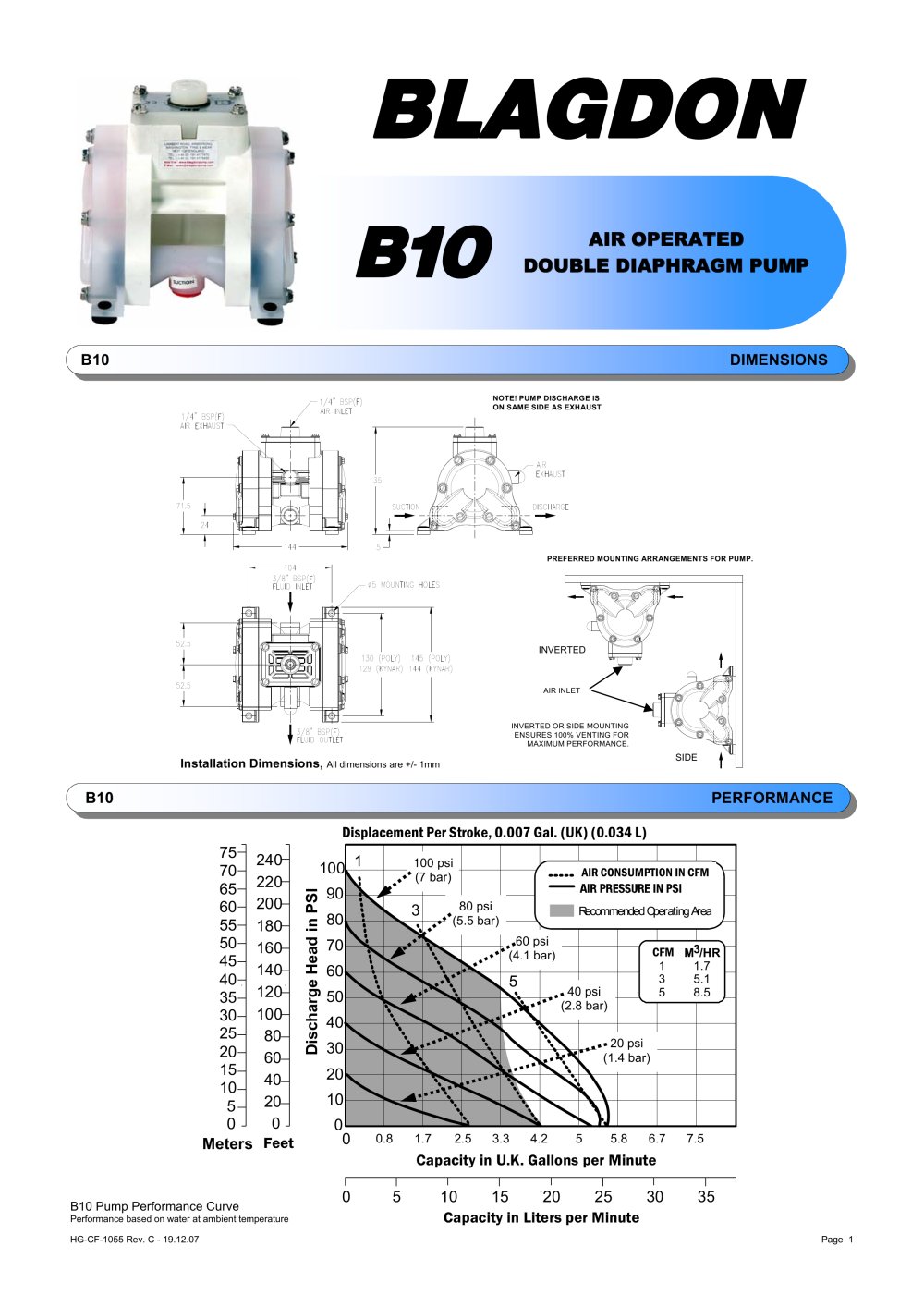

1130B - B06 Metallic FDA table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:10.00pt "Arial", sans-serif; } .font4 { font:12.00pt "Arial Black", sans-serif; } .font5 { font:8.00pt "Courier New", monospace; } .font6 { font:4.00pt "Lucida Sans Unicode", sans-serif; } .font7 { font:5.00pt "Lucida Sans Unicode", sans-serif; } .font8 { font:9.00pt "Lucida Sans Unicode", sans-serif; } .font9 { font:7.00pt "Verdana", sans-serif; } .font10 { font:8.00pt "Verdana", sans-serif; } .font11 { font:14.00pt "Verdana", sans-serif; } .font12 { font:51.00pt "Verdana", sans-serif; } BLAGDON AIR OPERATED DOUBLE DIAPHRAGM PUMP ( B10 DIMENSIONS -1/4" bsp(f) air inlet NOTE! PUMP DISCHARGE IS ON SAME SIDE AS EXHAUST 6j 7j PREFERRED MOUNTING ARRANGEMENTS FOR PUMP. id OltS ^- 05 mounting holes 130 (p0ly) 145 (p0ly) 129 (kynar) 144 (kynar) INVERTED OR SIDE MOUNTING ENSURES 100% VENTING FOR MAXIMUM PERFORMANCE. Installation Dimensions, All dimensions are +/- 1mm B10 PERFORMANCE Displacement Per Stroke, 0.007 GcH. (UK) (0.034 L) 75 7065ͭ6055 50 45 40-] 35-] 30 25 20 15ͭ105ͭ0 240220ͭ200180ͭ160140ͭ120100 80 60 40 0 e r OS o </) a Meters Feet 0 0.8 1.7 2.5 3.3 4.2 5 5.8 6.7 7.5 Capacity in U.K. Wallons per Minute B10 Pump Performance Curve Performance based on water at ambient temperature 0 5 ~i͗ 10 15 i 20 25 ~iח 30 35 Capacit in Liters per Minute HG-CF-1055 Rev. C - 19.12.07 Page 1

Open the catalog to page 1

1130B - B06 Metallic FDA table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:8.00pt "Verdana", sans-serif; } B10 SPECIFICATIONS TECHNICAL DATA Maximum Delivery: 26.5 Litres/min Accessories Included: Exhaust Air Silencer Max. Working Pressure: 6.9 Bar (100 psi) Shipping Weight: 1.4 Kg (3.0 Lb) Max. Solid Particle Size: 1.5 mm (1/16") Shipping Dimensions: 160 mm x 230 mm x 120 mm Air Inlet: 1/4"...
