Product catalog summary

Overview
The document provides technical specifications and performance details for the Blagdon Air Operated Double Diaphragm Pump B06, part of the Metallic FDA Series. It includes dimensions, performance curves, and general assembly information.

Specifications

Pump Code: B06
Fluid Connections: 1/2” - 3/4” TRI-CLAMP (other options available)
Capacity: 0 - 18 Litres/Minute (0 - 3.9 Gallons/Minute)
Max Solids: 1 MM (1/16”)
Max Discharge Head: 88 Meters (289 ft)
Displacement/Stroke: 0.022 Litres (0.0049 UK Gallons)
Max Working Pressure: 8.6 Bar (125 psi)
Air Inlet: 1/4” BSP (F)
Temperature Limits: Determined by Elastomers
Pump Weights: SS: 4.0 Kg

Material and Temperature Specifications

PTFE: Chemically inert, maximum temperature 356°F (180°C), minimum 32°F (0°C), optimum 50° to 212°F (10° to 100°C)

Components

Wetted Components: 316L Stainless Steel
Non-Wetted Components: 316L Stainless Steel
Valve Type: Ball
Suction Orientation: Bottom
Valve Seats: 316L Stainless Steel
Valve Balls: PTFE, 316 Stainless Steel
Diaphragms: PTFE, One Piece PTFE

Design and Model Information

Design Level Suffix: P (BSP Connections), P1 (TRI-CLAMP Connections, Electro-Polished)
Model: B06 (Standard), X06 (ATEX CAT. 2)

Contact Information
Blagdon Pump, Lambert Road, Armstrong, Washington, Tyne & Wear NE37 1QP, England. Tel: 0044 (0) 191 4177475, Fax: 0044 (0) 191 4175435, Website: www.blagdonpump.com, Email: [email protected]

Important Note
This pump should be used in accordance with the Health and Safety at Work Act 1974. All business is conducted subject to Blagdon Pump's Terms and Conditions of Sale, available on request.

Catalog excerpts

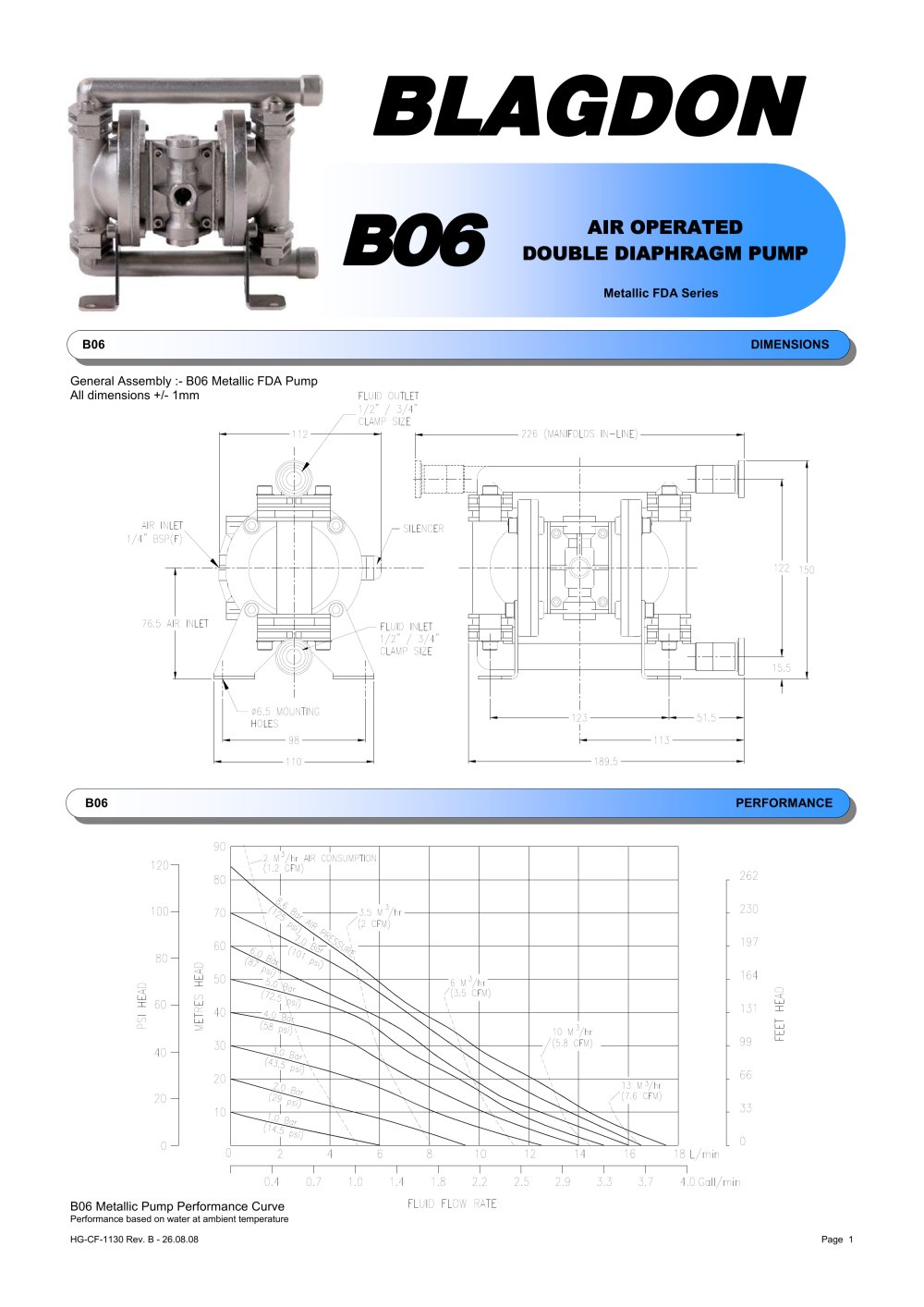

1130B - B06 Metallic FDA table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:12.00pt "Arial Black", sans-serif; } .font3 { font:51.00pt "Verdana", sans-serif; } BLAGDON AIR OPERATED DOUBLE DIAPHRAGM PUMP Metallic FDA Sries HG-CF-1130 Rev. B - 26.08.08 Page 1
