WAMGROUP S.p.A
Wireless Remote Control WRC Brochure

Wireless Remote Control WRC Brochure

Product catalog summary

Overview: The WRC Wireless Remote Control for Loading Bellows by TOREX S.p.A. is designed for efficient and reliable operation in various work environments. Its compact size, ease of installation, and wireless functionality eliminate the need for obstructive cables, enhancing usability and reliability.

Description: The system comprises a receiver unit installed on the drive unit box, connected to the electric panel, and a transmitter unit with a pushbutton panel. Operators can control loading operations by pressing designated buttons.

Functionality: The remote control facilitates the ascent and descent of loading bellows and the start and end of the loading cycle. It can also manage additional accessories, such as an outlet vibrator.

Performance & Technical Features:

Frequency: I.S.M. Band 434.050 – 434.775 MHz
Receiver Power Supply: 24/48/55/110/230 V AC
Programmable Channels: 30 via P.L.L.
Range: Up to 100 meters
Temperature Range: -20°C to 70°C
Protection: IP 65
Safety Controls: Safety stop and STOP
Transmitter Battery: Ni-MH 2.4 V, 1.5 A/h
Battery Life: Up to 15 hours
Recharge Time: Max 3 hours
Charger Voltage: 11 - 32 V DC (optional 230 V AC transformer)

Benefits:

Impact-resistant PVC construction
High sensitivity double-click keys usable with gloves
Easy-to-locate emergency pushbutton
Safety Classification: Category 4 for STOP, Category 3 for movement with active safety STOP (UNI EN 954-1)
Minimal maintenance required
Lightweight transmitter unit (0.375 kg)
Pre-calibrated transmission frequency
No interference with multiple units in proximity
Excellent quality-price ratio

Options & Accessories: The transmitter unit can feature up to 16 double-click keys and a mushroom-shaped emergency pushbutton.

Catalog excerpts

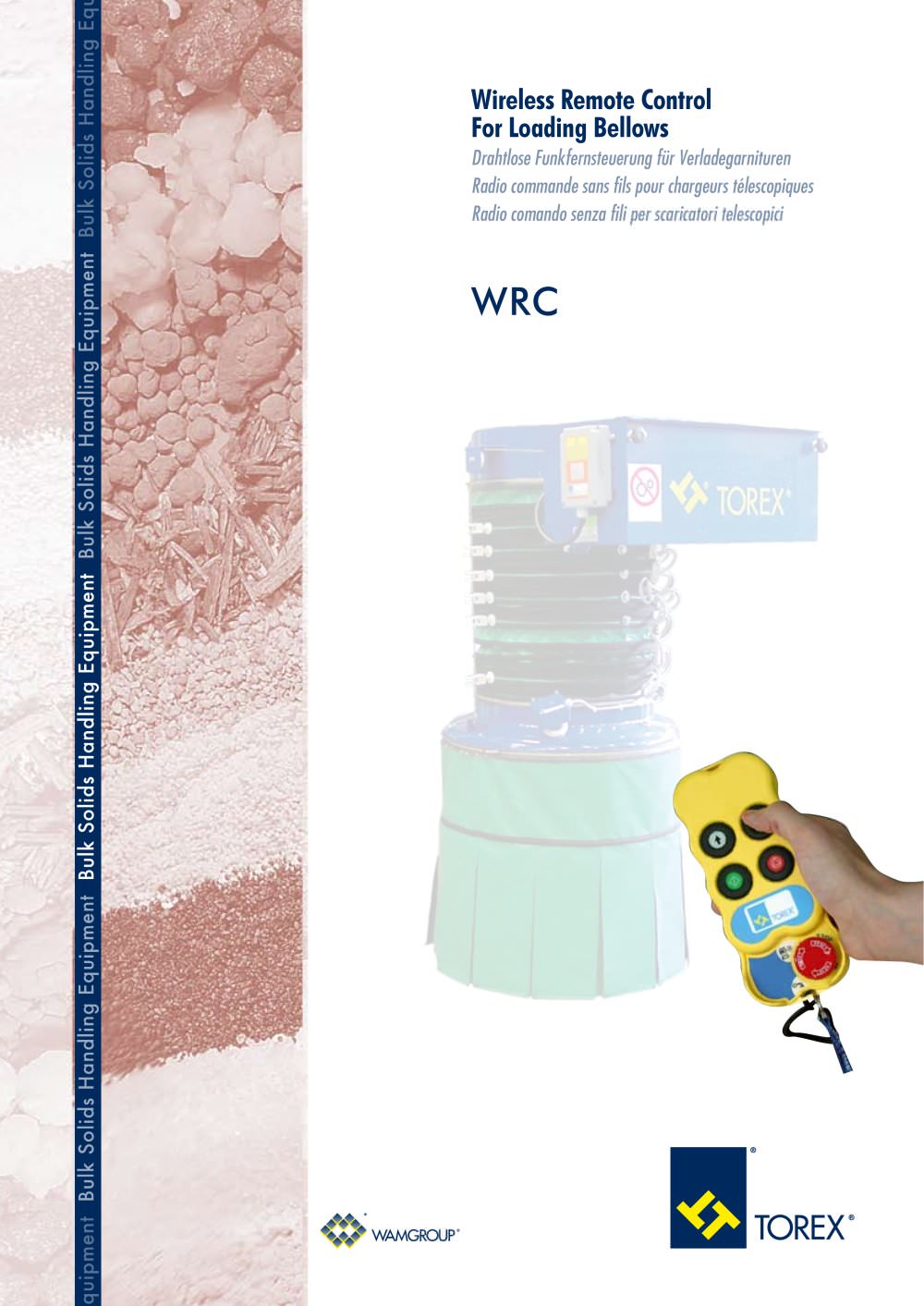

Wireless Remote Control For Loading Bellows Drahtlose Funkfernsteuerung für Verladegarnituren Radio commande sans fils pour chargeurs télescopiques Radio comando senza fili per scaricatori telescopici WRC

Open the catalog to page 1

TOREX S.p.A. Via Canaletto, 139/a I - 41030 S. Prospero s/S. (MO) - ITALY Tel. : +39 059 80 80 811 Fax : +39 059 90 82 04 [email protected] www.torex.it TOR. 920 07/08 Rights reserved to modify technical specifications Il Radio Comando senza fili per Scaricatori Telescopici WRC, grazie alle sue dimensioni contenute, facile installazione, intuitiva modalità di impiego e nessun cavo elettrico che possa ostacolare consente un uso più funzionale in qualunque situazione di lavoro garantendo sempre una estrema affidabilità. Descrizione Il radio comando senza fili per Scaricatori Telescopici WRC è composto...

Open the catalog to page 2
