WAMGROUP S.p.A
Weigh-Belt-Feeders DCN Brochure

Weigh-Belt-Feeders DCN Brochure

Product catalog summary

Description and Working Principle
The DCN series of Weigh-Belt Feeders are compact gravimetric machines designed for continuous or batch feeding. They operate by adjusting belt speed based on signals from a load cell, allowing precise control of material flow.

Technical Features
The DCN 0350 model is suitable for dry, free-flowing powders, sand, atomized clay, and granules. Available in sizes 350, 500, and 800, the model features a sturdy chassis made from powder-coated carbon steel or stainless steel. The conveyor belt and inlet spout are stainless steel, with options for PVC, food-grade, and anti-abrasive belts.

Basic Equipment
Standard equipment includes a load cell, belt speed detector, belt scraper, and a compact drive roller. Optional accessories include electronic control instrumentation with LCD and keypad, an inverter for belt speed adjustment, a printer, and a belt with beaded edges.

Benefits
The DCN series offers easy installation, maintenance-friendly design, quick access for maintenance, and suitability for a variety of products and applications.

Dimensions and Power
Dimensions are provided in millimeters, with power requirements specified for different models. The drive roller is a key component in the operation of the belt feeder.

Catalog excerpts

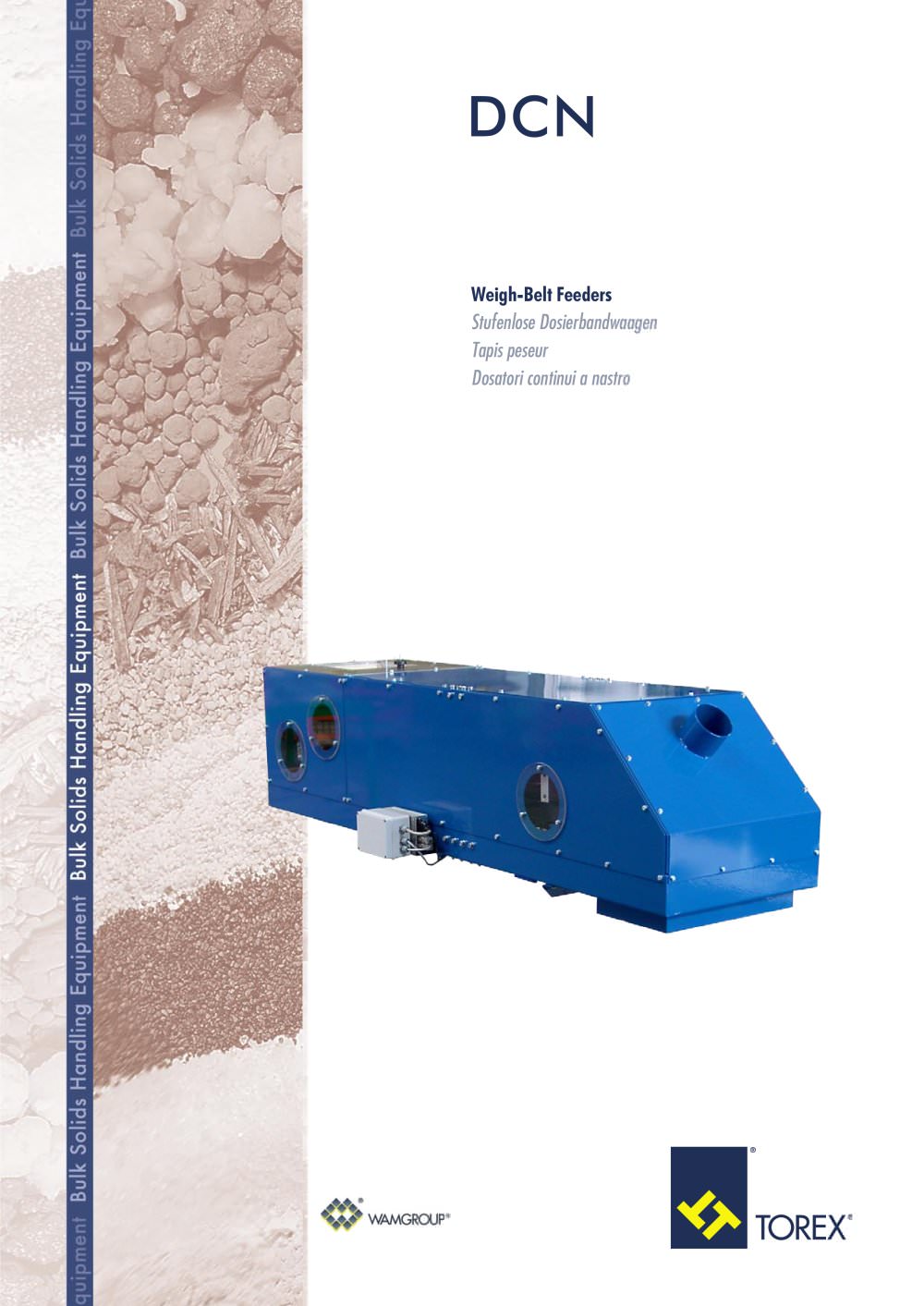

Weigh-Belt Feeders Stufenlose Dosierbandwaagen Tapis peseur Dosatori continui a nastro® DCN

Open the catalog to page 1

Description and Working Principle The DCN series of Weigh-Belt Feeders are light compact gravimetric machines. They can be used as continuous feeders (handling a predefined flow of material) or as “batch” feeders (unloading a predefined mass of material). Both operating modes are controlled by electronic instruments which control the belt speed depending on the signal read on the load cell. Beschreibung und Funktionsweise Die stufenlosen Dosierbandwaagen der Serie DCN sind leichte und kompakt gebaute gravimetrisch arbeitende Geräte. Sie können sowohl im Dauer- als auch im Chargenbetrieb zur Dosierung...

Open the catalog to page 2

DCN B2 B1 H D C A E F G L I Length - Länge - Longueur- Lunghezza 0 53NCD005NCD008NCD-htgneLLäegn-rueugnoLazzehgnuLA1B2BCDEFGHIL005108810497030050240640520520525545805710512012170300502406405205205255450.37 kW800020832044170300502406405205205255450.37 kW805220362096170300502406405205205255450.37 kW8-htgneLLäegn-rueugnoLazzehgnuLA1B2BCDEFGHIL0051088104970305607501600300405255450.37 kW805710512012170305607501600300405255450.37 kW800020832044170305607501600300405255450.37 kW805220362096170305607501600300405255450.37 kW8-htgneLLäegn-rueugnoLazzehgnuLA1B2BCDEFGHIL005157915501002000141907905405644259450.24...

Open the catalog to page 3

TOR. 310 TOR. 500 TOR. 800 TOR. 900 TOR. 1000 TOR. 700 TOR. 320 TOREX S.p.A. Via Canaletto, 139/a I - 41030 S. Prospero s/S. (MO) - ITALY Tel. : +39 059 80 80 811 Fax : +39 059 90 82 04 [email protected] www.torex.it TOR. 1100 06/07 Rights reserved to modify technical specifications Further Products - Weitere Produkte - Autre Production - Altra Produzione

Open the catalog to page 4
