WAMGROUP S.p.A
Volumetric Micro- Batch Feeders MBF Brochure

Volumetric Micro- Batch Feeders MBF Brochure

Product catalog summary

Overview: The MBF Micro-Batch Feeders are designed for continuous volumetric feeding of powdery or granular materials. They are constructed from stainless steel or optionally from steel-reinforced SINT® engineering polymer. The feeders include a rotating agitator tool, a feeder screw, and separate drive units for each component.

Functionality: These feeders are particularly suitable for materials that are poorly flowing, prone to clogging, or adhesive. They are used across various industries including food, building, plastics, chemicals, packaging, and environmental technology.

Specifications: The feeders feature interchangeable shaft seals made from 304L stainless steel, with options for FDA-approved materials. They also include blending tools to prevent material bridging and ensure free flow.

Performance & Technical Features: The internal geometry of the feeder ensures free flow of difficult materials, with minimal clearance between the screw flight and feeder pipe for high precision. The design allows for easy maintenance and cleaning, with a high degree of material homogeneity.

Options & Accessories: Available in FDA-approved food-grade SINT® polymer or stainless steel, with options for electric or pneumatic vibrators.

Material Characteristics: The feeders can handle a variety of materials including fine powders, granular substances, fibers, and flakes. They are suitable for materials that are aerated, hygroscopic, corrosive, viscous, abrasive, and more.

Dimensions & Capacity: The document provides detailed dimensions and capacities for different MBF models, ranging from 3 to 6000 dm3/h.

Contact Information: WAM S.p.A., Via Cavour, 338, I - 41030 Ponte Motta, Cavezzo (MO) - ITALY. Tel: +39 0535 61 81 11, Fax: +39 0535 61 82 26, Email: [email protected], Website: www.wamgroup.com

Catalog excerpts

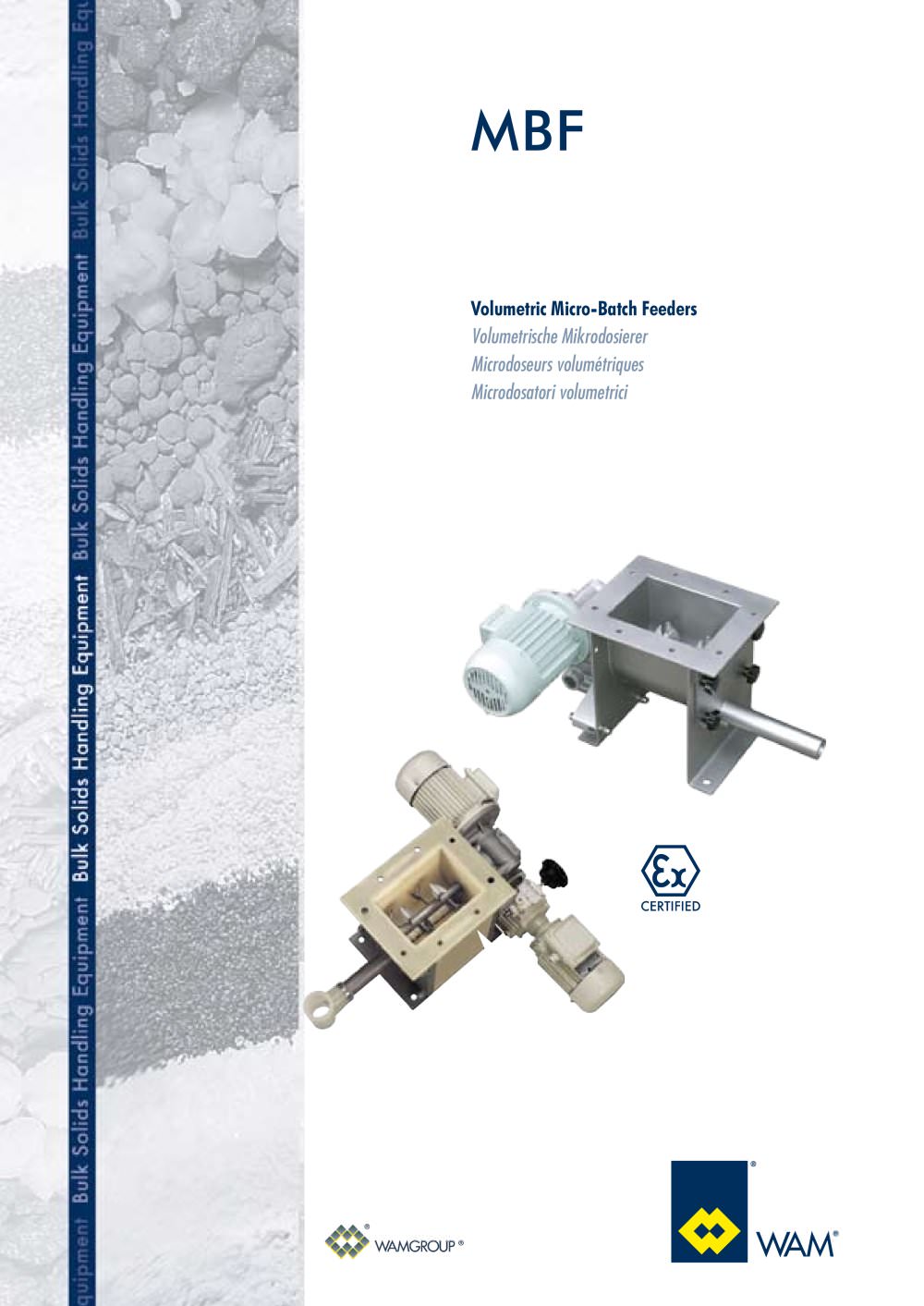

Volumetric Micro- Batch Feeders MBF Brochure-1

Volumetric Micro-Batch Feeders Volumetrische Mikrodosierer Microdoseurs volumétriques Microdosatori volumetrici MBF

Open the catalog to page 1

Volumetric Micro- Batch Feeders MBF Brochure-3

MBF Micro-Batch Feeder for continuous volumetric feeding of powdery or granular materials consist of a body entirely manufactured from stainless steel (optionally steel-reinforced SINT® engineering polymer), a horizontally mounted rotating agitator tool, a feeder screw beneath the agitator tool, a feeder pipe enclosing the protruding feeder screw, one drive unit each for agitator and feeder screw. Function MBF series Micro-Batch Feeders for powder and granular product feeding are particularly suitable for poorly flowing materials which tend to clog, along with adhesive products. MBF Micro-Batch...

Open the catalog to page 3

Volumetric Micro- Batch Feeders MBF Brochure-4

Performance & Technical Features - Benefits - Internal geometry of the body guarantees free flow of difficult materials - Minimum clearance between screw flight and feeder pipe ensuring high precision feeding - Easy and quick maintenance due to small number of components - High degree of homogeneity of the fed material - Easy and quick cleaning due to engineering SINT® polymer non-stick surface and quick access panel Options & Accessories - Units in FDA-approved food-grade SINT® engineering polymer or completely in stainless steel - Electric or pneumatic vibrators Leistungsdaten & Technische...

Open the catalog to page 4

Volumetric Micro- Batch Feeders MBF Brochure-5

A = Fine Powders Feine Pulver Poudres fines Polveri fini B = Granular Granulat Granulés Granulare C = Fibres Fasern Fibreux Fibroso D = Flakes Flocken Flocons Fiocchi A B C D aerates - fluidisiert - aérabilité - aerabilità packs under pressure - verpresst unter Druck - compressible sous pression - impaccamento sotto pressione hygroscopic - hygroskopisch - hygroscopique - igroscopico high bulk density - hohes Schüttgewicht - poids spécifique haut - alto peso specifico low bulk density - niedriges Schüttgewicht - poids spécifique bas - basso peso specifico corrosive - korrosiv - corrosif - corrosività...

Open the catalog to page 5

Volumetric Micro- Batch Feeders MBF Brochure-6

TOR. 500 WAM. 00515 WAM. 03510 WAM. 03021-25-31 WAM. 03505.02 MAP. 05 WAM. 13 WAM. 02515 10/06 Rights reserved to modify technical specifications Further Products - Weitere Produkte - Autre production - Altra produzione WAM S.p.A. Via Cavour, 338 I - 41030 Ponte Motta Cavezzo (MO) - ITALY Tel: +39 0535 61 81 11 Fax: +39 0535 61 82 26 [email protected] www.wamgroup.com UNI EN ISO 9001-2000 Certified Company

Open the catalog to page 6
