WAMGROUP S.p.A
Valve ACTUATORS Brochure

Valve ACTUATORS Brochure

Product catalog summary

Overview of Valve Actuators

This document provides comprehensive technical specifications, dimensions, and operational parameters for various types of valve actuators including manual, pneumatic, electropneumatic, and electric swivel drives. It covers actuator types, compatibility with valves, internal parts, signaling systems, and accessories.

1. Manual Actuators

Types and Features

Manual Lever Actuators (CM series): Available in different sizes (e.g., CM 2, CM 3B, CM 4) with dimensions and weights ranging from 1.3 to 3.5 kg.
Lever with Extension (CMP2): Provides extended manual operation capability.
Hand Wheel Actuators (CMV series): Sizes CMV 2, CMV 4, CMV 6 with weights from 1.42 to 2.3 kg and specific DIN 5482 interface dimensions.

Key Parameters

Dimensions are provided in millimeters with DIN 5482 standard shaft interfaces.
Weights vary by type and size.

2. Pneumatic and Electropneumatic Actuators

CP Series Pneumatic Actuators

Internal shaft diameter: 19 mm with key dimensions 6x6xd.
Operating pressure range: 2 to 8 bar.
Torque values range from 100 to 900 Nm depending on model (CP063, CP101, CP126, CP126T).
Air consumption per cycle at 6 bar and operation times are specified for each model.

Electropneumatic Actuators (AR Series)

Motor power: 0.75 kW with IP55 protection.
Operating voltage: 230/400 V, 50 Hz.
Opening times vary from 38 to 74 seconds depending on torque rating (500 to 1000 Nm).
Air fittings conform to TPN and UNIM standards.

3. Electric Swivel Drives

CRG and AE Series

CRG series: Torque from 16 to 21 Nm, motor power 0.25 to 0.37 kW, IP55 protection, 230/400 V, 50 Hz.
AE series: Torque from 51 to 210 Nm, motor power 0.18 to 0.75 kW, IP55 protection, 230/400 V, 50 Hz.
Opening times for slide valves (VL and VG types) range from 13 to 29 seconds.
Maximum starts per hour: 11 for AE series.
Signaling systems MIC 23 or LSM0 are mandatory for AE drives; LSM6 required for CRG drives.

Accessories

Emergency hand wheels (CV series) compatible with AE drives for manual override.

4. Compatibility and Standards

Actuators are compatible with various valve types including slide valves (VG, VL), butterfly valves, and others as detailed in valve catalogs.
Standard interfaces follow DIN 5482 and CETOP ISO 6431, VDMA 24562.
Pneumatic cylinders conform to CETOP and ISO standards.

5. Signaling and Control Systems

Inductive proximity switches (LSM 3) and limit switches (MIC 23, LSM.O) are available for position feedback.
Electrovalves (5/2 type) and solenoid coils (V5 series) support pneumatic control with various voltage options (24-48-110-220 V, DC/AC).
Monostable and bistable valve configurations are supported.

6. Materials and Construction

Actuator casings are made of aluminum for durability and lightweight.
All motors have IP55 protection rating ensuring dust and water resistance.

7. Certifications and Manufacturer Information

Manufactured by WAM S.p.A., certified under UNI EN ISO 9001-2000.
Contact details and website provided for further technical support.

Critical Information Summary

Ensure actuator compatibility with valve type and size as per detailed valve catalogs.
Mandatory use of signaling systems (LSM6, MIC 23, LSM0) depending on actuator type for safe operation.
Observe operating pressure limits (2-8 bar for pneumatic actuators) and electrical specifications for electric drives.
Use accessories like emergency hand wheels for manual override when required.
Follow standard dimensions and mounting interfaces (DIN 5482, CETOP) for installation.

Catalog excerpts

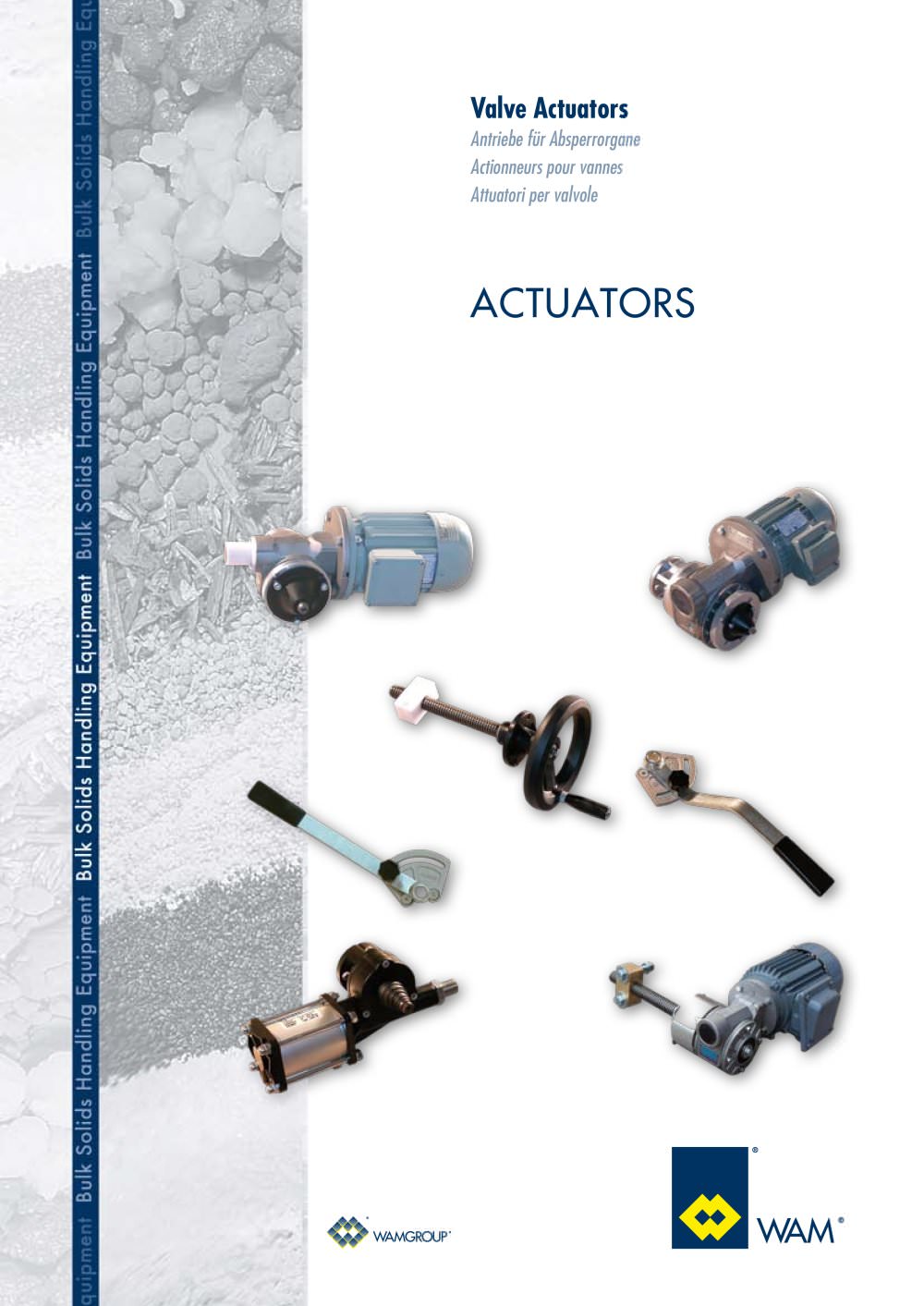

Valve Actuators Antriebe für Absperrorgane Actionneurs pour vannes Attuatori per valvole ACTUATORS

Open the catalog to page 1

Manual Lever Handhebel Actionneur manuel Attuatore manuale CM ØH DIN 5482 TYPE N ØP kg 60 72 60 72 14 22 x 19 17 28 x 25 50 10.5 80 10.5 1.3 CM 3B 2.0 CM 2 B C D 300 104 500 107 E G Dimensions in mm 1.5 Kg CM4 Manual Lever Handhebel Actionneur manuel Attuatore manuale Lever with Extension Handhebel mit Verlängerung Levier manuel avec rallongement Attuatore manuale con prolunga 3.5 Kg CMP2 Hand Wheel Handrad Actionneur à volant Attuatore con volantino Dimensions in mm TYPE 22 x 19 1 CMV 4 28 x 25 1.42 CMV 2 ØA ØH DIN 5482 B 200 145 250 145 kg CMV 6 300 180 28 x 25 2.3 CMV TYPE TPN 25x 5 UNIM 124...

Open the catalog to page 2

Nm CP063 CP101 CP126 CP126T CP126 CP126 T CP101 CP063 900 800 700 600 500 400 300 200 100 2 3 4 5 6 7 8 Pressure (2 - 8 bar) Druck (2 - 8 bar) Pression (2 - 8 bar) Pressione (2 - 8 bar) Dimensions in mm TYPE CP 101 CP 063 CP 126 T CP 126 ØA B 70 265 106 260 125 450 125 600 C D 130 140 130 150 180 215 180 215 E F 85 85 170 170 G ØH DIN 5482 22x19 22x19 28x25 28x25 L M 10 47 10 47 16 52 16 52 R2 R3 * Packaging included - Verpackung inbegriffen - Emballage compris - Imballo compreso N ØP 50 11 50 11 80 13 80 13 ..Q R 12 12 12 12 R1 Ø Thread Ø Gewinde Ø Filet Ø Filetto raccordo Ø Hose Ø Schlauch...

Open the catalog to page 3

TYPE A B C D E F G P PDIN 5482 AR 070A21 331 90 200 120 150 70 80 13 28x25 AR 070A11 331 90 200 120 150 70 80 13 22x19 AR 070A20 100 90 200 120 150 70 80 13 28x25 Nm kW Motor Protection Motor-Schutzart Classe protection Protezione motore Volt Hz r.p.m. kg min -1 Tours/min Giri/1’ 45 0.75 IP 55 230/400 50 140 29 45 0.75 IP 55 230/400 50 140 29 - - - - - - 11 TYPE Opening Time Öffnungszeit Temps d'ouverture Tempo d'apertura 500 38 sec 600 45 sec 700 52 sec 800 59 sec 1000 74 sec Opening Time VG Slide Valves Öffnungszeiten von VG - Schiebern Temps d’ouverture Vannes guillotine VG Tempi di apertura...

Open the catalog to page 4

8 TYPE A B C D E F ØH Volt DIN 5482 G Nm kW Motor Protection Motor-Schutzart Classe protection Protezione motore P Revolution kg Umbrehung Rotation Rotazione Max. starts per hour Hz Max Schaltungen pro Stunde Max. démarrages par heure Max. avviamenti/ora AE 040A11 274 101 140 98 107 40 50 11 22x19 51 0.18 AE 050A11 288 119 160 110 110 50 50 11 22x19 70 0.25 AE 060A10 135 200 120 150 60 80 13 22x19 AE 070A10 150 200 120 150 70 80 13 28x25 AE 040A10 101 140 98 107 40 50 11 22x19 AE 050A10 119 160 110 110 50 50 11 22x19 16 AE 051A11 288 119 160 110 110 50 50 11 22x19 102 0.37 17 AE 060A21 330 135...

Open the catalog to page 5

Compatibily - Kompatibilität - Compatibilité - Compatibilità * ALUMINIUM CASING * ALU-GEHÄUSE * CORPS EN ALUMINIUM * CAMICIA IN ALLUMINIO • ALTERNATING CURRENT • WECHSELSTROM • COURANT ALTERNATIF • CORRENTE ALTERNATA Ä DIRECT CURRENT Ä GLEICHSTROM Ä COURANT CONTINU Ä CORRENTE CONTINUA CETOP ISO 6431 VDMA 24562 60 mm NON WAM® Fremdfabrikat Hors fourniture WAM® Non fornitura WAM® (Cons. Uff. Comm.) VG 0500 P. VG 0600 P. VG 0700 P. VG 0800 P. VG 1000 P. PN. CYL Ø100 CETOP PN. CYL Ø100 ISO 6431 * VDMA 24562 PN. CYL Ø125 CETOP PN. CYL Ø125 ISO 6431 * VDMA 24562 KCP 100 C - LSM6+V5V40 KCP 100 I - LSM6+V5V40...

Open the catalog to page 6

Signalling Systems - Stellungsanzeigen - Systèmes de signalisation - Sistemi di segnalazione Mount For Inductive Proximity Switch Platte für induktiven Näherungsschalter Plaque pour capteur de proximité inductif Piastra per finecorsa induttivi LSM 3 Inductive Proximity Switch Induktiver Näherungsschalter Capteurs de proximité inductif Interrutore di prossimità induttivo Lengths - Längen - Longueurs - Lunghezze (mm) a = all out - über alles - hors tout - fuori tutto b = threaded - mit Gewinde - filetée - filettata for - für - pour - per: VCP-LSM3 KXS 1 a = 60 b = 51.5 for - für - pour - per: CM2-4...

Open the catalog to page 7

WAM. 02536 07/08 Rights reserved to modify technical specifications Further Products - Weitere Produkte - Autre Production - Altra produzione UNI EN ISO 9001-2000 Certified Company WAM. 00515 WAM. 03021-25-31 WAM. 03041 WAM. 03510 WAM. 03010 WAM. 02531 WAM S.p.A. Via Cavour, 338 I - 41030 Ponte Motta Cavezzo (MO) - ITALY Tel: +39 0535 61 81 11 Fax: +39 0535 61 82 26 [email protected] www.wamgroup.com
