Telescopic Loading Bellows ZQ Brochure

Catalog excerpts

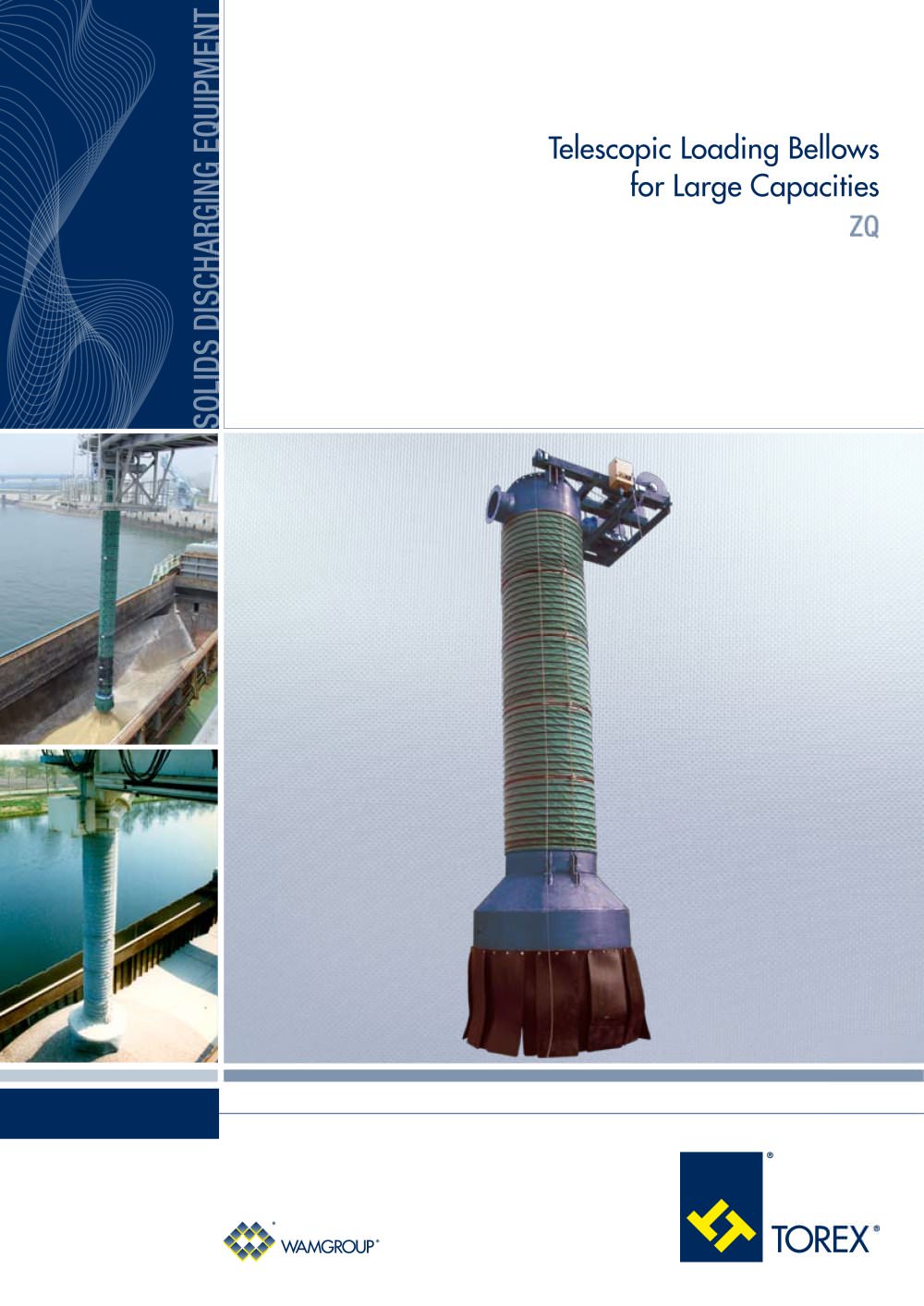

SOLIDS DISCHARGING EQUIPMENT Telescopic Loading Bellows for Large Capacities ZQ

 Open the catalog to page 1

ZQ Loading Bellows are suitable for continuous duty reaching a maximum capacity of 1,800 m3/h (1,060 cfm). At the lower end they are equipped with a skirt which prevents dust emission during discharging. Bellows retraction is controlled by an electric winch. The unit is equipped with a flanged spigot to be connected on site to a remote dust collector. DEVELOPED FOR HIGH CAPACITIES AND DUST-FREE LOADING OF SHIPS, BARGES OR STOCKPILES Features - Inlet Diameter: 800 mm (32 in) - Maximum Capacity: 1,800 m3/h (1,060 cfm) - Maximum Extension: up to 30 metres (98.4 ft) - Hoisting Motor Power: 5.5...

 Open the catalog to page 2

Benefits Accessories Hypalon®-Neoprene Bellows Food-Grade Polyester Control Panel with Wireless Remote Control • Flexible Neoprene/Hypalon® chute results in high resistance to atmospheric agents and abrasion, making the loader durable. • Flexible food-grade polyester chute results in high resistance to atmospheric agents; • Suitable to be in contact with food products; • Antistatic. • Consists of a receiver unit installed on the upper frame connected to the electrical panel and transmitter unit, pushbutton panel from which the operator can control the loading operations by pressing the...

 Open the catalog to page 3

ZQ Loading Bellows are used for efficient discharging of powders or granular materials into ship or barge holds or open stockpiles. The loading bellows are equipped with internal cones for optimised channelling of the material flow and external bellows for dust extraction. Applications TOR.03510.70.EN 04/10 I dati di questo documento possono essere modificati a qualsiasi momento senza preavviso.

 Open the catalog to page 4
