WAMGROUP S.p.A

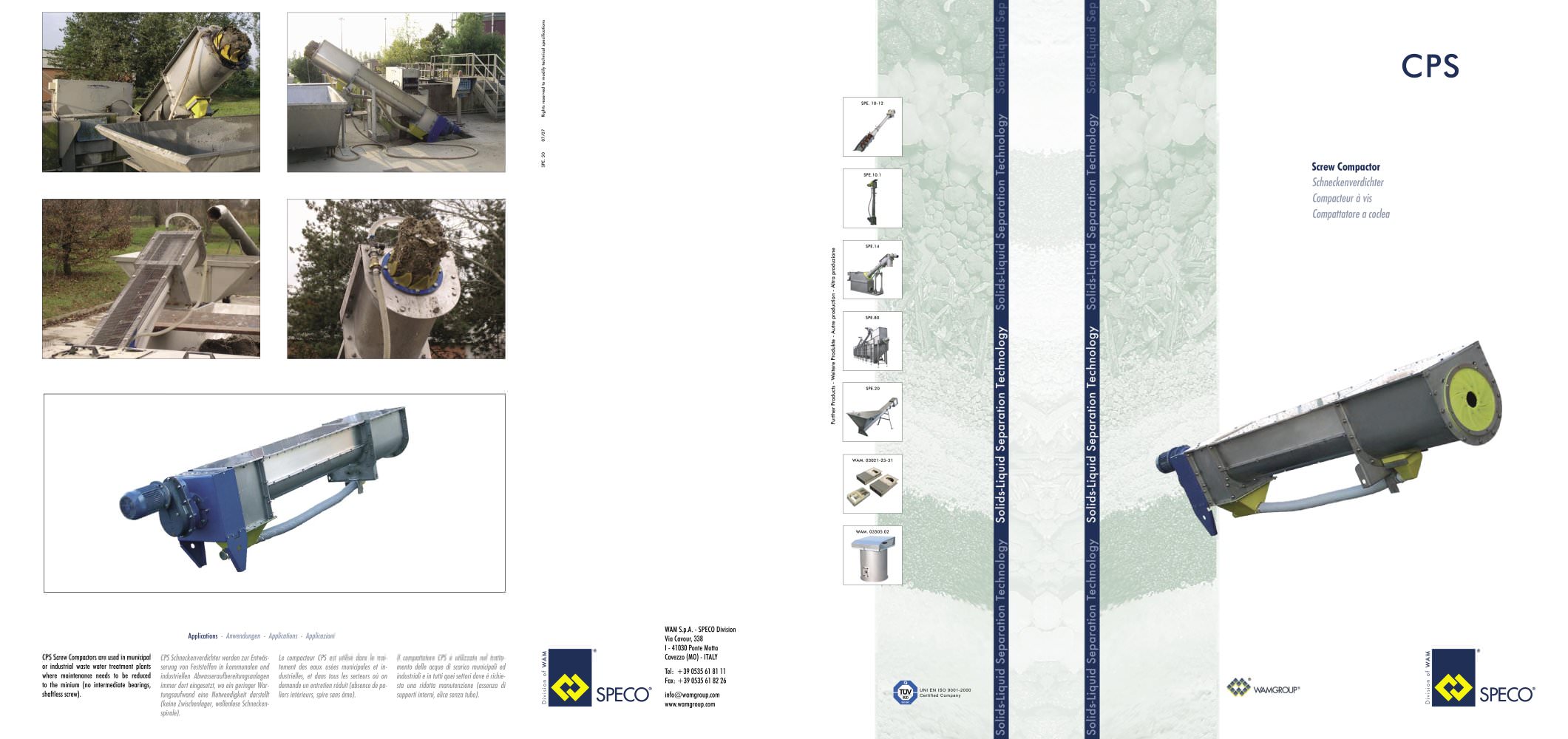

Screw Compactor CPS Brochure

Screw Compactor CPS Brochure

Product catalog summary

Overview: The document provides technical specifications and features of the CPS Screw Compactor, a product by WAM S.p.A. - SPECO Division, designed for use in municipal and industrial wastewater treatment plants. It emphasizes reduced maintenance requirements and efficient operation.

Applications: CPS Screw Compactors are utilized in environments where minimal maintenance is crucial, such as municipal and industrial wastewater treatment facilities. The design eliminates the need for intermediate bearings and features a shaftless screw.

Functionality: The CPS Screw Compactor integrates three primary functions: conveying, de-watering, and compacting. It is suitable for intermittent operation across various de-watering applications.

Technical Features: The compactor is constructed with a stainless steel trough and screen, a highly wear-resistant carbon steel spiral, and a high-density, low-friction HDPE polymer liner. It features a patented plug retention diaphragm and outlet compaction section, with a washing system included.

Performance: The compactor offers up to a 40% reduction in screenings volume, optimized maintenance through a modular design, and operates without blockages even with fibrous materials. It is fully enclosed to prevent pollution and odors, operates quietly, and consumes low energy.

Accessories: The compactor includes various accessories such as a drive guard, fastening bracket, inlet, slide plates, and a self-cleaning drainage screen with a patented blockage prevention system.

Benefits: Key benefits include significant volume reduction of screenings, ease of maintenance, no blockages, pollution and odor-free operation, low noise, and energy efficiency.

Catalog excerpts

SPE. 50 07/07 Rights reserved to modify technical specifications Further Products - Weitere Produkte - Autre production - Altra produzione WAM S.p.A. - SPECO Division Via Cavour, 338 I - 41030 Ponte Motta Cavezzo (MO) - ITALY Tel: +39 0535 61 81 11 Fax: +39 0535 61 82 26 [email protected] www.wamgroup.com UNI EN ISO 9001-2000Certified Company Screw Compactor Schneckenverdichter Compacteur à vis Compattatore a coclea® CPS Applications - Anwendungen - Applications - Applicazioni CPS Schneckenverdichter werden zur Entwässerung von Feststoffen in kommunalen und industriellen Abwasseraufbereitungsanlagen immer dort eingesetzt, wo ein geringer Wartungsaufwand eine Notwendigkeit darstellt (keine Zwischenlager, wellenlose Schneckenspirale). Le compacteur CPS est utilisé dans le traitement des eaux usées municipales et industrielles, et dans tous les secteurs où on demande un entretien réduit (absence de paliers intérieurs, spire sans âme). Il compattatore CPS è utilizzato nel trattamento delle acque di scarico municipali ed industriali e in tutti quei settori dove è richiesta una ridotta manutenzione (assenza di supporti interni, elica senza tubo). CPS Screw Compactors are used in municipal or industrial waste water treatment plants where maintenance needs to be reduced to the minium (no intermediate bearings, shaftless screw). SPE. 10-12 SPE.80 SPE.10.1 SPE.14 WAM. 03021-25-31 WAM. 03505.02 SPE.20

Open the catalog to page 1
